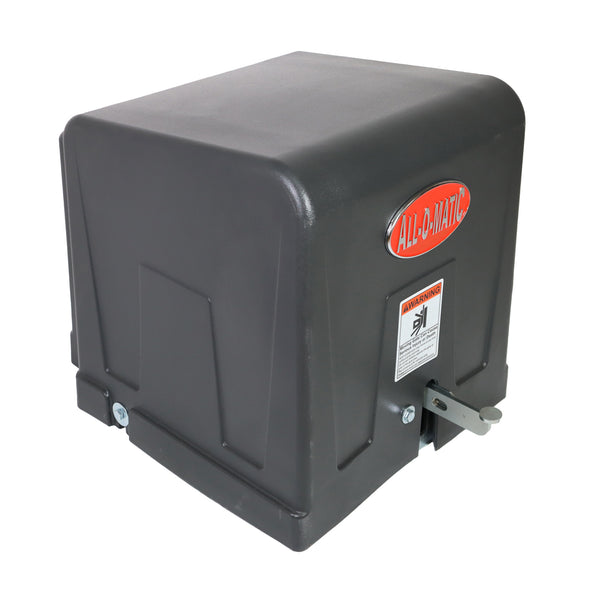

All-O-Matic SL-90 DC PRO Manuals & Support
Identify your model
The model and serial number are on the label inside the control box. DC PRO units have the ALL-BLDC PRO board with an LCD display. Earlier DC units have an LED-only board; use the earlier board manual below for those.
Key specs
| Max gate | 1,600 lb / 50 ft |
|---|---|
| Motor | 24 VDC brushless, 1/2 HP |
| Speed | Adjustable 6 to 12 in per second |
| Duty cycle | Continuous |
| Power | 115 or 230 VAC single phase, or 24 VDC solar |
| Gearbox | 20:1 with internal disconnect |
| Chain | #41 (20 ft included) |
| Battery backup | Two 12 V, 7 Ah; about 150 cycles on a 1,000 lb gate |
| Release | Mechanical foot pedal |
| Size | 15.5 x 18.5 x 16 in |
| Temperature range | -40 to 160 °F |
Manuals and documents
Installation Manual
-
DC PRO Slide Operator Manual
View PDF: DC PRO Slide Operator Manual (opens in a new tab) -
DC Slide Operator Manual (Earlier Board)
View PDF: DC Slide Operator Manual (Earlier Board) (opens in a new tab)
Parts List
-
SL-90 DC Blowout Drawing
View PDF: SL-90 DC Blowout Drawing (opens in a new tab)
Spec Sheet
-
SL-90 DC PRO Spec Sheet
View PDF: SL-90 DC PRO Spec Sheet (opens in a new tab) -
All-O-Matic Slide Operators Architectural Specification
View PDF: All-O-Matic Slide Operators Architectural Specification (opens in a new tab)
Brochure
-
SL-90 DC Brochure
View PDF: SL-90 DC Brochure (opens in a new tab)
Other documents
-
PS-90-100-300 Pipe Stand Drawing
View PDF: PS-90-100-300 Pipe Stand Drawing (opens in a new tab) -
90-PDT Pad Mount Drawing
View PDF: 90-PDT Pad Mount Drawing (opens in a new tab)
Troubleshooting
Common questions
UL 325 (2018) boards need monitored entrapment devices for the open and close directions. If a device is missing or faulty, the MON_FAULT LED lights and the gate runs only on constant pressure. Wire monitored photo eyes or edges, then press RESET.
Press down the foot pedal release on the operator. The pedal also cuts power to the motor, so lift it before you run the gate again.
It uses two 12 V, 7 Ah batteries in the control box. Check battery voltage on the LCD, and replace both batteries together when they no longer hold a charge.
The operator shuts down after two obstructions before full close. Clear the obstruction, then press the RESET button next to the radio connector.
