DoorKing MicroPLUS RF Manuals & Support

MicroPLUS is DoorKing's encrypted rolling code remote system. Codes cannot be copied, with over 286 million transmitter codes and a sync code that changes every use.

The 8040 receiver outputs 26, 30 or 31-bit Wiegand or works alone with its relay. The 8054 is a stand-alone receiver with time zones and a 2,800 event history.

Identify your model

The 8040-080 runs at 318 MHz and takes MicroPLUS and MicroCLIK remotes. The 8040-081 runs at 418 MHz for MicroCLIK only. The 8054 takes MicroPLUS remotes only.

For MicroCLIK receivers see MicroCLIK RF.

Key specs

Frequency	318 MHz
Codes	Over 286 million, plus rolling sync code
8040 output	26, 30 or 31-bit Wiegand, or Form C relay
8054	Stand-alone, 10 time zones, 2,800 event history
8054 capacity	50 to 1,250 remotes, by model
Remotes	1, 2, 3 and 4 button

Manuals and documents

Installation Manual

8040 MicroPLUS Wiegand Receiver Instructions
8040-065-K-9-19 · 4 pages View PDF: 8040 MicroPLUS Wiegand Receiver Instructions (opens in a new tab)
8054 MicroPLUS Receiver Instructions
8054-065-E-8-19 · 4 pages View PDF: 8054 MicroPLUS Receiver Instructions (opens in a new tab)

Spec Sheet

MicroPLUS RF Control Spec Sheet
Rev. 5-21 · 2 pages View PDF: MicroPLUS RF Control Spec Sheet (opens in a new tab)

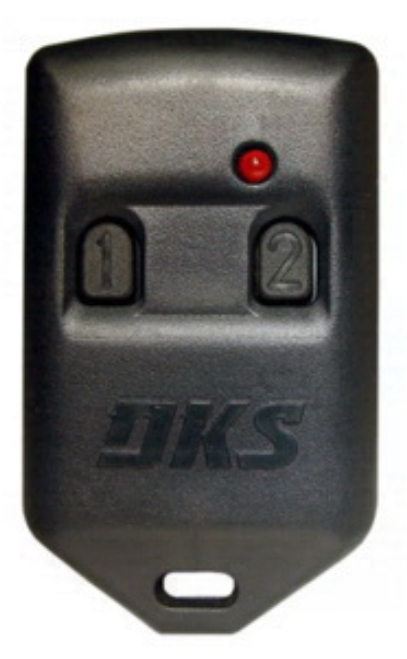

8070-080 MicroPLUS 2-Button Transmitter Spec Sheet View PDF: 8070-080 MicroPLUS 2-Button Transmitter Spec Sheet (opens in a new tab)

Troubleshooting

Remote does not work

Check that the remote is programmed in the receiver and the battery is good.
A MicroPLUS remote must be used with a MicroPLUS receiver at 318 MHz.

Short range

Check the antenna and coax. Mount the antenna high and clear of metal.

8054 outdoors

The 8054 is not for outdoor mounting without a weather enclosure. DoorKing offers one.

Common questions

No. The codes are encrypted and change with each use, so copied codes will not work.

It outputs 26, 30 or 31-bit Wiegand, which most access controllers accept.

No. The 8054 takes MicroPLUS remotes only.
