Linear GSLG-A Manuals & Support
Identify your model
The model number is on the label inside the cover, for example GSLG-A-121. The first digit after the dash is horsepower, the second is voltage and the third is phase.
- Horsepower: 2 = 1/2 HP, 4 = 3/4 HP, 1 = 1 HP
- Voltage: 1 = 115 VAC, 2 = 208/230 VAC, 4 = 460 VAC, 8 = 208 VAC
- Phase: 1 = single phase, 3 = three phase
Have the model and serial number ready when you order boards or motors. Parts can differ between single and three phase units.
Key specs
| Horsepower | 1/2, 3/4 or 1 HP |
|---|---|
| Max gate | 1,100 lb / 45 ft (1/2 HP); 1,400 lb / 60 ft (3/4 HP); 2,200 lb / 78 ft (1 HP) |
| Gate speed | About 12 in per second |
| Duty cycle | Continuous |
| Power | 115, 208, 208/230 VAC single phase or 208/230/460 VAC three phase, by model |

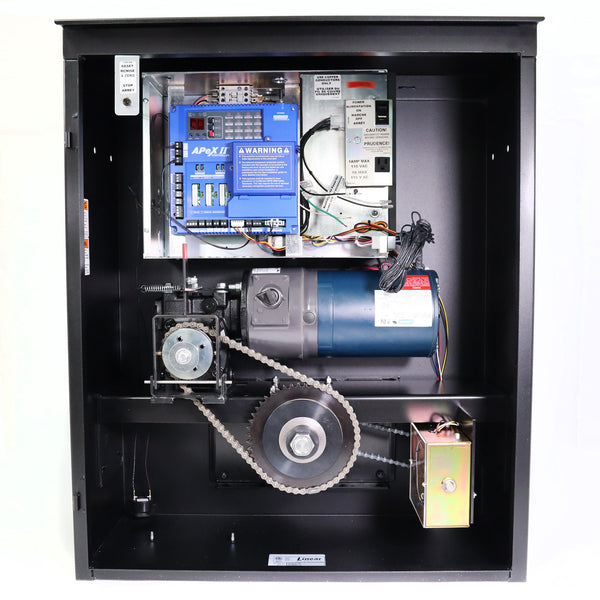

| Drive | 15:1 right-angle C-face reducer, double C-face brake, #50 chain, torque limiter |
| Controller | APeX with diagnostic LED display |
| Dual gate | Built in, 3-wire shielded COMM LINK |
| Mounting | Post mount standard; pad mount optional |
Manuals and documents
Installation Manual
-
GSLG-A Installation Guide (APeX)
View PDF: GSLG-A Installation Guide (APeX) (opens in a new tab) -
GSLG-A Mounting Pad Installation
View PDF: GSLG-A Mounting Pad Installation (opens in a new tab)
Wiring Diagram
-
GSLG-A Wiring Specifications
View PDF: GSLG-A Wiring Specifications (opens in a new tab)
Spec Sheet
-
GSLG-A Spec Sheet
View PDF: GSLG-A Spec Sheet (opens in a new tab)
Other documents
-
Typical Slide Gate Loop Layout (3 Loops)
View PDF: Typical Slide Gate Loop Layout (3 Loops) (opens in a new tab)
Troubleshooting
Common questions
It needs at least two monitored safety devices, one for each direction of travel, before it will run. Approved devices include Miller Edge MGO20, MGR20 and MGS20 edges, the Miller Edge MIM-62 module, Omron E3K-R10K4-NR, Miller Edge RG-K-R and PG-K-R50 photo eyes, and EMX IRB-MON and IRB-RET photo eyes.
Two obstructions in a row lock the operator out and the beeper sounds. Clear the obstruction, then press STOP or the RESET button on the cover.
The max run timer ran out while opening (En 01) or closing (En 02). Look for a broken chain or belt or a slipping sprocket, and check the timer setting. Press STOP to clear it.
Connect the COMM LINK terminals A, B and C on both operators with 3-wire shielded cable (Belden 8760, Linear P/N 2500-1982). Set limits and entrapment settings on each operator alone first, then set both to dual gate.
