Magnetic Access Pro L Manuals & Support

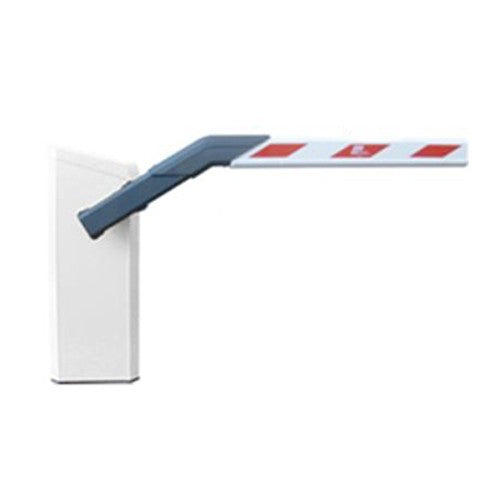

The Magnetic Access Pro-L is an MHTM MicroDrive barrier for lanes up to 6.0 m wide, used at industrial sites, residential buildings and small parking areas. It is rated for 10 million cycles.

It runs on the MGC Pro control unit with an LCD menu, programmable I/O and an integrated two-channel loop detector. The VarioBoom has a foam edge.

Identify your model

The model code shows options, for example PRO-L-RC01540: a 15 ft boom and 4.0 s opening time. The Access, Access Pro and Access Select lines share the same housing.

Key specs

Lane width	Up to 6.0 m
Open / close time	1.3 s / 4.0 s (Pro)
Duty cycle	100%
Supply voltage	85 to 264 VAC, 50 to 60 Hz (24 VDC version available)
Power use	95 W max
Control unit	MGC Pro with LCD and integrated loop detector
Housing	Powder-coated aluminum, IP54
Rated cycles	10 million
Standards	UL 325, EN 13849
Operating temperature	-22 to 131 °F

Manuals and documents

Troubleshooting

The MGC Pro shows event, warning and error numbers on its display. These are the common ones.

FF03: monitoring device missing

No safety loop or safety light barrier is connected. Connect one, or replace a faulty device.
Check the detector sensitivity if vehicles are missed.

FF01 or FF04: barrier mechanics

FF01: the first close did not finish. Remove any obstacle and check the balancing spring setting.
FF04: the barrier is too fast. Adjust the balancing springs for the boom weight.

FF05 or FF06: boom

FF05: the boom contact shows the boom swung away. Reset the boom or mount the arm.
FF06: the boom was lifted or stopped when closing. Check that the lever system latches.
