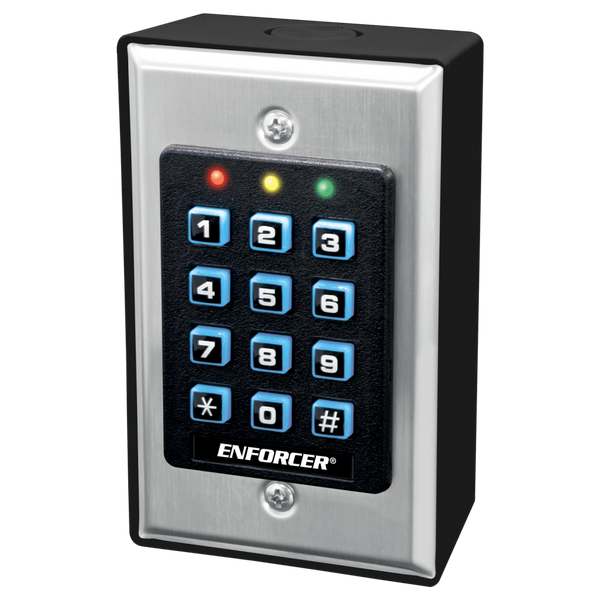

Seco-Larm SK-1011-SDQ Keypad Manuals & Support

The Seco-Larm ENFORCER SK-1011-SDQ is an indoor stand alone keypad for 1,000 users with one form C relay. It mounts on a single-gang box and runs on 12 to 24 VAC or VDC.

It has a super user code, up to 50 temporary visitor codes, 50 duress codes, an egress input with delayed egress and a real-time clock that can disable access at set times.

Identify your model

The SK-1011-SDQ has a stainless steel faceplate on a single-gang back box (surface back box included). It is for indoor use.

Key specs

Users	1,000, codes 4 to 8 digits
Output	Form C relay, 1 A at 30 VDC, up to 99,999 seconds
Power	12 to 24 VAC or VDC, 90 mA max at 12 VDC
Visitor codes	Up to 50, one-time or 1 to 99 hours
Duress codes	Up to 50
Tamper output	N.C., 50 mA at 24 VDC
Size	4.63 x 2.88 x 1.5 in
Operating temperature	-4 to 158 °F

Manuals and documents

Troubleshooting

The keypad beeps for one minute after power up. Enter programming with the master code followed by **.

Reset programming

In programming mode, enter 9999 # to restore all settings except the master code. The amber LED flashes fast while it works, then the keypad beeps twice.
