Security Brands Advantage DKE 26-500 Manuals & Support

Security Brands 26-500

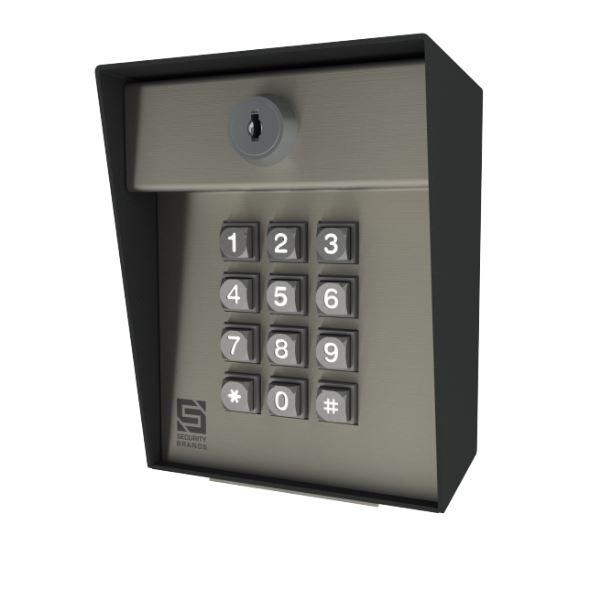

The Security Brands Advantage DKE 26-500 is a 500-code economy keypad that controls up to two gates or doors. It mounts on a pedestal and runs on 12 to 24 VAC or VDC.

It has a backlit keypad, latch codes, a personal master code, variable relay time and an event input for an exit device or magnetic contact.

Identify your model

The 26-500 has a lighted keypad and two relays. The 26-100SG is the 100-code, one-relay single-gang model.

Key specs

Codes 500 four-digit codes
Relays 2 (Relay A and B)
Power 12 to 24 VAC or VDC, under 41 mA at 12 VDC
Input Event input for exit device or contact
Memory Non-volatile
Size 5.41 x 4.07 x 3.38 in

Manuals and documents

Installation Manual

Quick Start

Spec Sheet

Troubleshooting

Program codes with the master code and sub mode shown in the install guide. Change the default master code during setup.

Gate does not open

  • Wire the gate operator to N/O and COM on the relay.
  • Check that the code was added to the relay you wired.

Strike or maglock wiring

  • Use N/C and COM for a magnetic lock so it releases when the relay fires.
  • Use N/O and COM for an electric strike.

Common questions

Yes. The 26-500 has Relay A and Relay B. Add each code to the relay it should run.

No. Connect it to a 12 to 24 VAC or VDC supply, often the gate operator accessory power.

Mount any keypad or entry system at least 6 ft from a gate or gate operator, or where the user cannot reach the gate while using it.
