Seco-Larm SK-1322-SPQ Weatherproof Keypad with Proximity Reader

• 12~24VAC/VDC operation
• 1,010 User codes
• 2 Form C relays, each rated 1A@30VDC
• Each relay output time is programmable from 1~99 seconds or toggle
• Output #2 can be programmed for use with a doorbell
• 2 Egress inputs for exiting the premises without keying in the code
• Backlit keys for easy nighttime use
• Can be mounted to a single-gang back box
• Door sensor input for anti-tailgating operation
• All features are programmed directly from the keypad – no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper for added security
• Circuitry is fully sealed with epoxy for outdoor use
• IP65 weatherproof rating, ABS plastic housing
• Built-in proximity card reader

• Operating Voltage: 12~24 VAC/VDC
• Door sensor input: N.C. Ground
• Tamper sensor: Optical
• Keypad LED life: 60,000 hours (over 6.8 years)
• Proximity reader Frequency: 125kHz
• Proximity reader Distance: 2″ (5cm)
• Operating temperature: -4°~122 F (-20°~50° C)

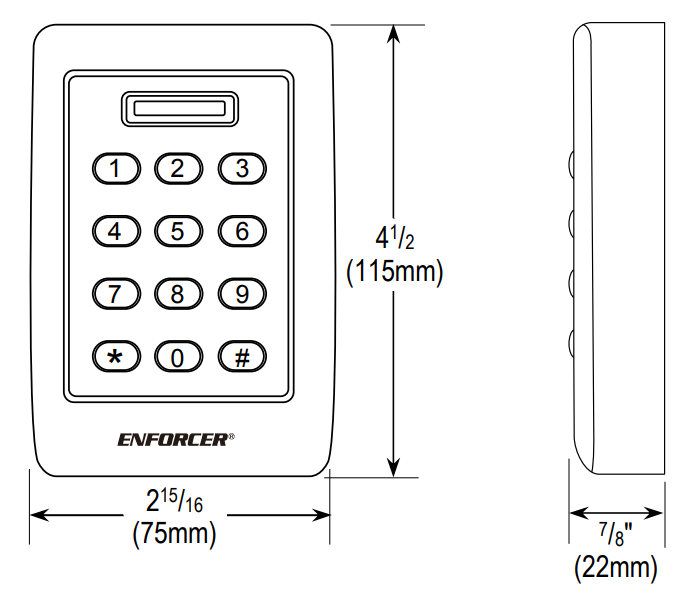

• Dimensions: 2-15/16″ x 4-1/2″ x 7/8″ (75x115x22 mm)
• Weight: 9-oz (240g)

Current Draw

• Standby: 64mA@12VDC
• 1 Relay active: 92mA@12VDC
• 2 Relays active: 120mA@12VDC

Relay Outputs

• Output #1: 1A@30VDC, Form C, NO/NC/COM
• Output #2: 1A@30VDC, Form C, NO/NC/COM

Egress Input

• Input #1: N.O. Ground
• Input #2: N.O. Ground
