Seco-Larm SK-1323-BDQ Sealed Black Housing Weatherproof Stand-Alone Digital Access Keypad

Seco-Larm ITEM: SK-1323-BDQ
Seco-Larm SK-1323-BDQ Sealed Black Housing Weatherproof Stand-Alone Digital Access Keypad

Seco-Larm SK-1323-BDQ Sealed Black Housing Weatherproof Stand-Alone Digital Access Keypad

Seco-Larm ITEM: SK-1323-BDQ
/
  • Current Trade Policy Costs Included In Price
  • In Cart Discounts Offered on Many Products
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

Designed for demanding commercial environments, these epoxy-sealed, outdoor keypads provide secure and flexible access control in a compact, weatherproof design with intuitive programming, multi-user support, seamless integration, 2 outputs, and now two models in a black housing.

  • 12~24 VAC/VDC operation
  • 1,010 User codes
  • 2 Form C relays, each rated 1A@30VDC, programmable from 1~99 seconds timed or toggle
  • Output #2 can be programmed for use with a doorbell
  • 2 Egress inputs for exiting the premises without keying in the code
  • Backlit keys for easy nighttime use
  • Door sensor input for anti-tailgating operation
  • All features are programmed directly from the keypad – no need for an external programmer
  • EEPROM memory protects programmed information in case of power loss
  • Optical tamper for added security
  • IP65 weatherproof – circuitry fully sealed with epoxy in rugged aluminum housing
  • Type: Sealed Housing Weatherproof Outdoor Digital Access Keypad
  • Number of User Codes: Up to 1,010
  • Operating Voltage: 12~24VAC/VDC
  • Current Draw – Standby: 64mA@12VDC
  • Current Draw- Active: 92~120mA@12VDC
  • Relay Outputs (2): 1A@30VDC, Form C, NO/COM/NC
  • IP Rating: Weatherproof IP65
  • Egress Inputs: 2, N.O. Ground
  • Door Sensor Input: N.C. Ground
  • Tamper Sensor: Optical
  • Keypad LED Life: 60,000 hours (over 6.8 years)
  • Operating Temperature: -4°~122°F (-20°~50° C)

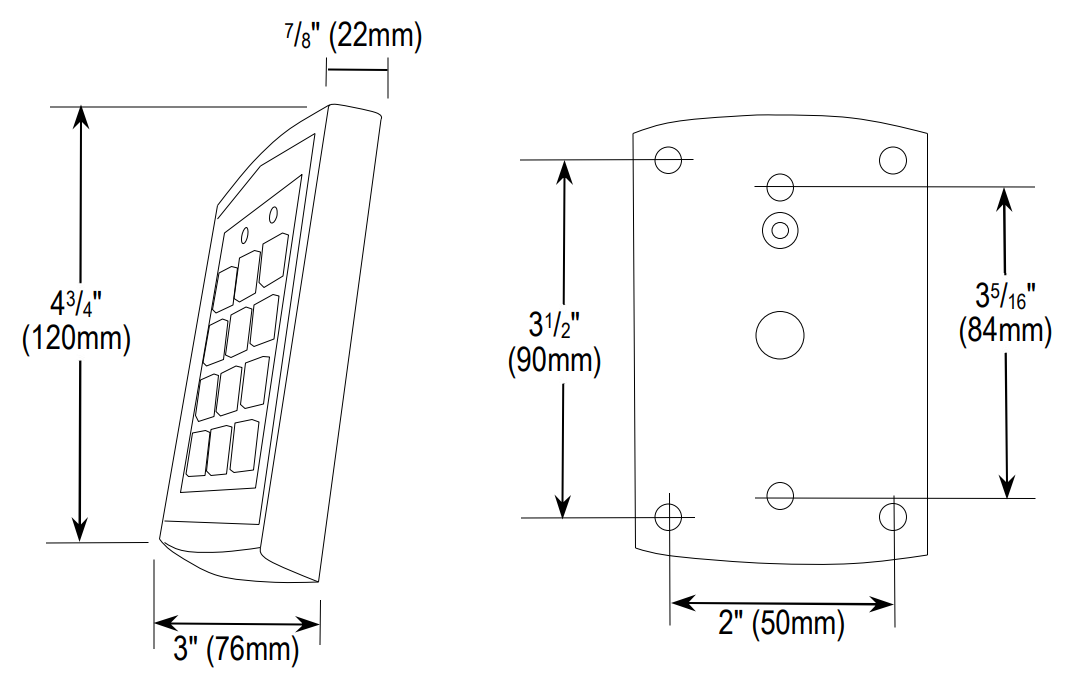

  • Dimensions: 4-3/4″ x 3″ x 7/8″ (120x76x22 mm)
  • Weight: 1-lb 2-oz (510g)
