Seco-Larm SK-4131-SPSQ Split Series Keypad with Proximity Card Reader

Seco-Larm ITEM: SK-4131-SPSQ
Seco-Larm SK-4131-SPSQ Split Series Keypad with Proximity Card Reader

Seco-Larm SK-4131-SPSQ Split Series Keypad with Proximity Card Reader

Seco-Larm ITEM: SK-4131-SPSQ
/
  • Current Trade Policy Costs Included In Price
  • In Cart Discounts Offered on Many Products
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

Split series installation for added security – keypad and controller are separate thereby preventing access via keypad tampering.

  • 12~24 VDC Auto-adjusting operation
  • Up to 1,000 possible user codes (000~999) and/or proximity cards for output #1, 100 (001~100) for output #2, 100 (001~100) for output #3
  • Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)Output #1: Form C relay, 5A@24VDC max.Output #2: Form C relay, 1A@24VDC max.Output #3: Form C relay, 1A@24VDC max.
  • Outputs #1, #2, and #3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
  • Tamper output: N.C. Dry contact, 50mA@24VDC max.
  • Keypad illuminates when a button is pressed; backlight can be programmable for FULL or AUTO in standby mode
  • Built-in door chime
  • Built in current limited (750mA) power source for keypad for added security
  • Keypad active, alarm, duress, and interlock output: Transistor ground, 100mA@24VDC max.
  • Keypad mounts to a standard single-gang back box (surface-mount back box included)
  • All features are programmed directly from the keypad: No need for an external programmer
  • EEPROM Memory protects programmed information in case of power loss
  • Up to 50 (01~50) duress codes for output #1, 10 (01~09) for output #2, 10 (01~09) for output #3
  • Programmable egress input with optional warning alarm and delayed egress
  • Door sensor input for anti-tailgating operation
  • Interlocking input for connecting to a second keypad for mantrap applications
  • Simple three wire connection between keypad and controller
  • Type: Split-Series Keypad with Proximity Card Reader
  • Operating Voltage: 12~24VDC
  • Current Draw – Standby: 88mA@12VDC
  • Current Draw – Keypress: 115mA@12VDC
  • Current Draw – Output 1 Active: 115mA@12VDC
  • Current Draw – Output 1 & 2 Active: 128mA@12VDC
  • Current Draw – Output 1, 2 & 3 Active: 138mA@12VDC
  • Current Draw – Total Max: 220mA@12VDC
  • Output 1: Form C – 5A@24VDC
  • Output 2: Form C – 1A@24VDC
  • Output 3: Form C – 1A@24VDC
  • Output – Alarm: 100mA@24VDC
  • Output – Key Active: 100mA@24VDC
  • Output – Duress: 100mA@24VDC
  • Output – Interlock: 100mA@24VDC
  • Output- Tamper: 50mA@24VDC
  • Input – Egress: N.O. Ground
  • Input – Door Sensor: N.C. Ground
  • Input – Door Inhibit: N.O. Ground
  • Input – Doorbell: N.O. Ground
  • Input – Tamper: N.C. Ground
  • Proximity Reader Frequency: 125kHz (EM125)
  • Proximity Reader Sensing Distance: 1-1/2″ (38mm)
  • Operating Temperature: 4°~158°F (-20°~70°C)
  • Operating Humidity: 5~95% (non-condensing)

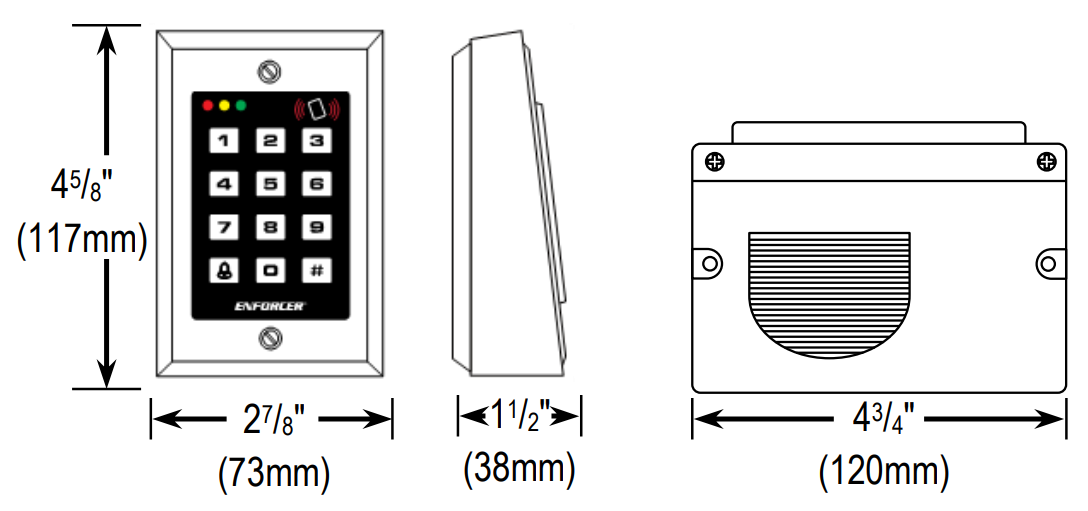

  • Dimensions: Keypad – 4-5/8″ x 2-7/8″ x 1-1/2″ (117x73x38 mm), Controller – 3-7/16″ x 4-3/4″ x 1-1/4″ (87x120x32 mm)
  • Weight: Keypad – 6.3-oz (180g), Controller – 8.8-oz (250g)
