Seco-Larm SM-4004-TQ/W Capsule-Type Quick-Connect Terminal Surface-Mount Magnetic Contact – White, 1″ (25mm) Gap, Closed loop
Seco-Larm SM-4004-TQ/W Capsule-Type Quick-Connect Terminal Surface-Mount Magnetic Contact – White, 1″ (25mm) Gap, Closed loop
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description
Surface-mount magnetic contact.
- Miniature capsule-type surface-mount magnetic contacts
- Gold-plated external screw terminals for longer life and reliability with tape to cover terminals
- Adhesive mounting (double-sided tape included)
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness for higher power handling and a longer expected life
- For closed loop circuits
- 1″ (25mm) Gap
- Lifetime limited warranty
- Loop Type: Closed loop
- Electrical Configuration: N/O
- Operation Gap: 1″ (25mm)
- Terminals: Gold-plated quick-connect
- Color: White
- Material: High impact ABS plastic
- Contacts: Iridium-plating
- Contact Rating: 1.0A@10VDC (max), 10W (max)
- Operating Temperature: -15°~160°F (-25°~70°C)
- Switch Cycles: 50 Million (0.1mA@5VDC)

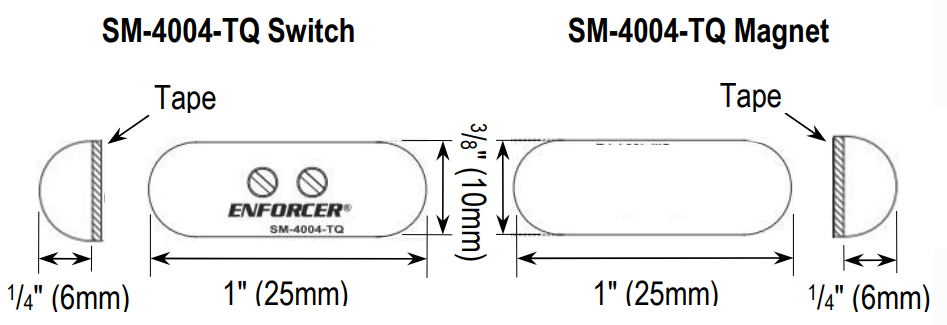

- Switch Dimensions: 1″ x 3/8″ x 1/4″ (25x10x7 mm)
- Magnet Dimensions: 1″ x 3/8″ x 1/4″ (25x10x7 mm)
- Magnet Type: Rare-earth neodymium
