Seco-Larm SM-4201-L6Q Track-Mount Overhead Door Magnetic Contact, 3″ (76mm) Gap, Open/Closed loop x2 (6 Wires)

Seco-Larm ITEM: SM-4201-L6Q
Seco-Larm SM-4201-L6Q Track-Mount Overhead Door Magnetic Contact, 3″ (76mm) Gap, Open/Closed loop x2 (6 Wires)

Seco-Larm SM-4201-L6Q Track-Mount Overhead Door Magnetic Contact, 3″ (76mm) Gap, Open/Closed loop x2 (6 Wires)

Seco-Larm ITEM: SM-4201-L6Q
Regular price $33.54
/
  • Current Trade Policy Costs Included In Price
  • In Cart Discounts Offered on Many Products
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

Overhead door magnetic contact.

  • Used for overhead doors in both industrial and residential situations where a wide gap is present
  • Adjustable to fit most door-channel widths
  • Rugged aluminum housing
  • 36″ (91cm) Wire leads enclosed in armored cable
  • Contact Type: DPDT, iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life
  • For open/closed loop circuits
  • 3″ (76mm) Gap
  • IP65 Weatherproof
  • Mounting bracket included
  • Lifetime limited warranty
  • Loop Type: Open/Closed Loop
  • Operation Gap: 3″ (76mm)
  • Material – Case: Aluminum
  • Material – Terminals: 36″ (91cm) armored leads
  • Contacts: Iridium-plated
  • Contact Rating: 1.0A@10VDC (max), 10W (max)
  • Operating Temperature: -15°~160°F (-25°~70°C)
  • Switch Cycles: 50 Million (0.1mA@5VDC)

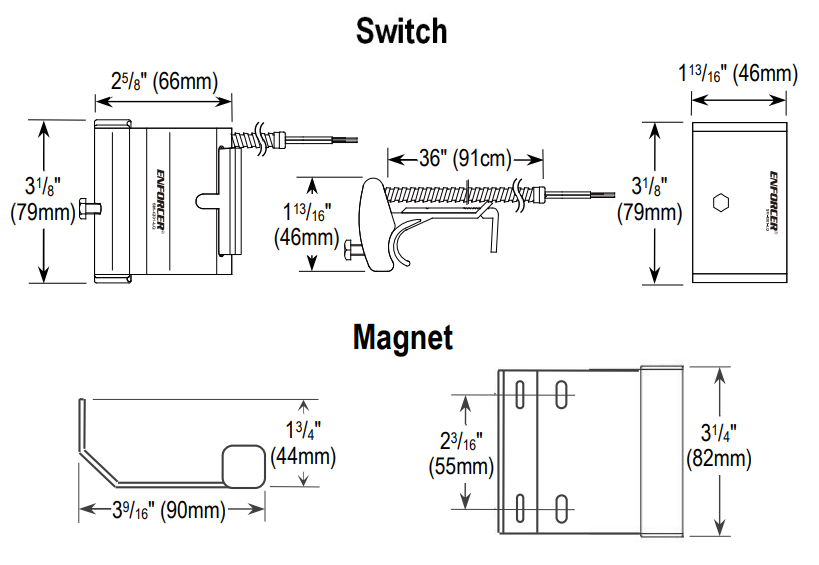

  • Switch Dimensions: 3-1/8″ x 2-5/8″ x 1-13/16″ (79x66x46 mm)
  • Magnet Dimensions: 3-1/4″ x 3-9/16″ x 1-3/4″ (82x90x44 mm)
  • Magnet Type: Ferrite
  • IP Rating: Weatherproof IP65
  • Optional Seco-Larm SM-8201-LWQ L-bracket available for door channels 2-1/2~4″ (62x102mm), dimensions: 3″ x 2″ x 1-1/4″ (76x51x32 mm)
