D-SG Slide Gate w/Battery Backup

PowerMaster ITEM: 15-02004
D-SG Slide Gate w/Battery Backup
D-SG Slide Gate w/Battery Backup
D-SG Slide Gate w/Battery Backup
D-SG Slide Gate w/Battery Backup

D-SG Slide Gate w/Battery Backup

PowerMaster ITEM: 15-02004
Regular price $3,760.00
/
  • Current Trade Policy Costs Included In Price
  • In Cart Discounts Offered on Many Products
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

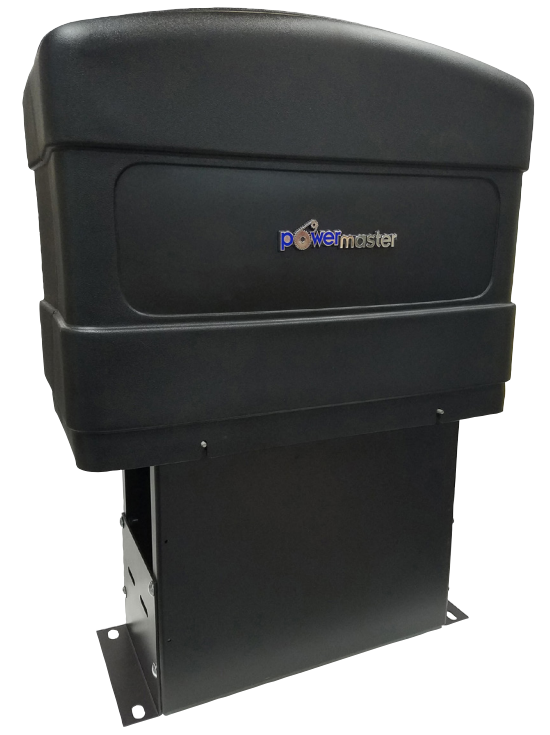

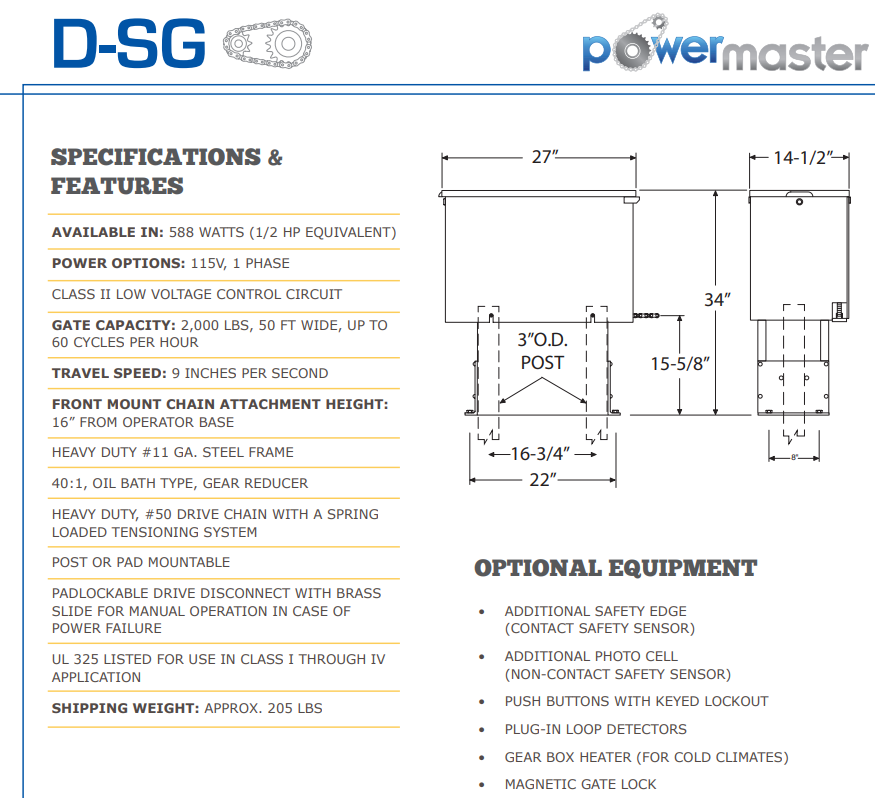

The PowerMaster Model D-SG Slide Gate Operator is a heavy-duty solution for high-traffic commercial and industrial gates, handling up to 50 ft and 2,000 lbs. It features a 1/2 HP continuous-duty motor, supports up to 60 cycles per hour, and includes a rugged, weather-resistant design. The unit is UL 325 compliant and works with monitored safety devices for reliable, secure operation.

Running on 115V single-phase power, it uses a DC motor with battery backup for continued use during outages. Key features include soft start/stop, a built-in control station, timer-to-close, easy left/right setup, and a manual disconnect, with flexible post or pad mounting for simple installation.

  • Battery Backup
  • 588 Watts (1/2hp equivalent), 24VDC Motor
  • AC Power Outlet
  • Nitro Board with 4-Line LCD Display
  • Built-in Radio Receiver
  • Soft Start/Soft Stop
  • Easy Set Limits
  • Heavy Duty Steel Frame with Polyethylene Rust and Dent Proof Cover
  • UL 325 Listed for use in Class I through IV application.
  • Pad-lockable option to secure cover for increased tamper proof protection
  • Polyethylene rust and dent proof cover
  • 3 slots for Plug-in Loop Detectors
  • Adjustable Closing Timer
  • Maximum Run Timer for equipment protection
  • Dual gate option with dedicated terminal connection provided
  • Easy Left/Right changeover
  • Spike suppressing circuitry for surge and lightning protection.
  • Magnetic gate lock circuitry with control relay
  • External anti-entrapment circuitry with separate terminal connections for easy installation of contact and non-contact sensors
  • Internal On/Off power switch
  • 115 VAC, Convenience receptacle
  • NEMA 1 three-button control station included
  • Heavy duty pillow block type ball bearings supporting output drive shaft and enabling extended endurance under heavy loads with low maintenance.
  • Positive chain driven rotary limit switches for precision gate positioning. Settings are never affected by manual operation.
