Seco-Larm ST-2406-3AEQ Power Supply/Charger with Enclosure
Seco-Larm ST-2406-3AEQ Power Supply/Charger with Enclosure
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description

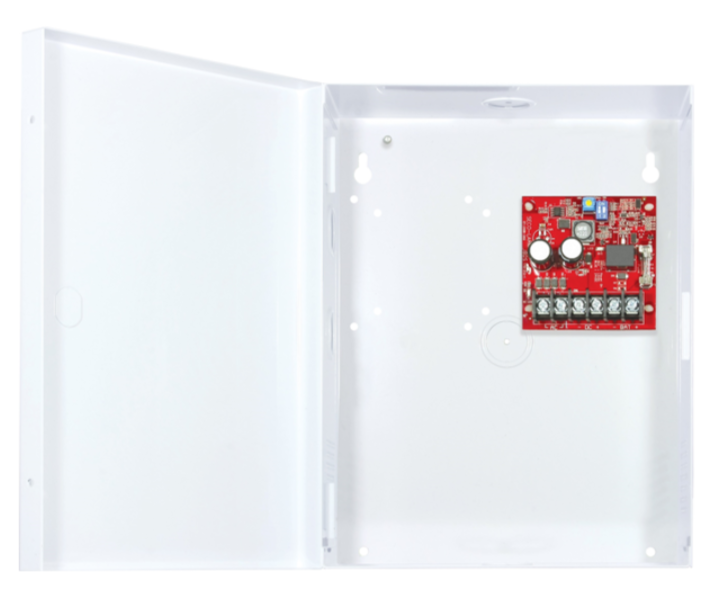

The ENFORCER ST-2406-3AEQ Power Supply/Charger ensures that alarm systems and access control systems have enough power to do their job. Protected by fused battery outputs, input polarity protection diodes, and backup battery polarity reverse protection, this power supply/charger can be used to maximize the security and efficiency of nearly any alarm or access control installation. Enclosure has space for up to 2 backup batteries (leads included for one optional backup battery).
- Automatic recharging of backup batteries
- Automatic switchover to backup battery if main power is lost or cut
- Built-in battery short-circuit protection
- Low-battery cutoff
- LEDs indicate power status
- Programmable DC voltage output
- Regulated and filtered output voltage
- Fused output for a regulated charge
- Heavy-duty steel case to protect power connections
- Enclosure has space for up to two 4Ah or one 7Ah backup batteries
- Includes battery leads for easy installation
- High efficiency at full load
- Heat sink free design
- Voltage: 6,12,24VDC
- Operating voltage: 12~24VAC/VDC for 6VDC, 18~24VAC/VDC for 12VDC, 24~28VAC or 26~28VDC for 24VDC
- Current (continuous): 2.5A
- Current (peak): 3.0A
- Current output (max. charge): 6V=100mA, 12V=220mA, 24V=450mA
- Maximum AC input: Please check the manual. See Transformer Selection in Table 3, pg. 3
- Master fuse: 5A
- Low battery cutoff: When battery voltage is <20%
- Status LEDs: AC Input - Green, DC Input - Red/Blue (Blue indicates 24V)
- Operating humidity: Up to 90%, non-condensing
- Operating Temperature: -4°~149°F (-20°~65°C)

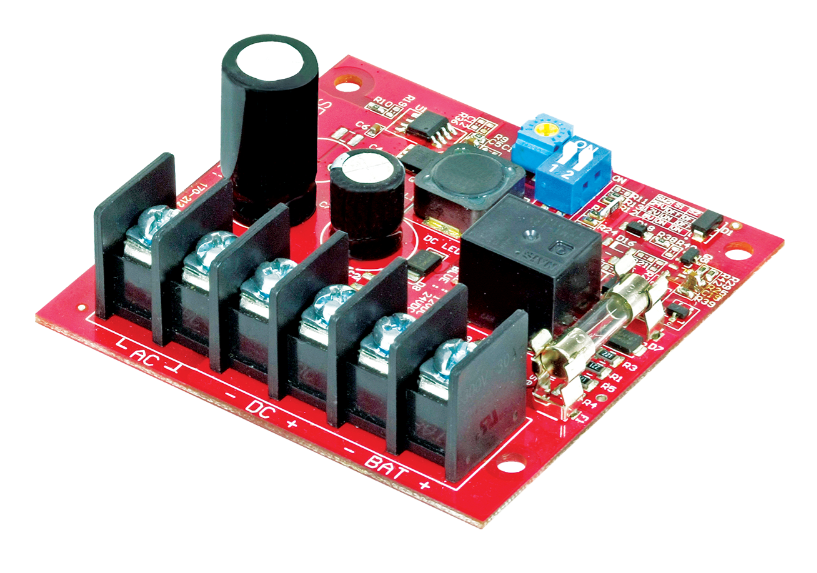

- Dimensions - Board - 2-7/8″ x 2-1/4″ x 1-3/8″ (73x64x35 mm)
- Dimensions - Enclosure: 10″ x 7-3/4″ x 3-1/2″ (254x196x89 mm)
- Weight: 3-lb 15-oz(1.78kg)
