Name: Hysecurity SlideSmart CNX 15 Slide Gate Operator ***Discontinued - Replaced by SlideSmart 535***
Brand: HySecurity
SKU: CNX15
Price: 2295.00 USD
Availability: OutOfStock

HySecurity SlideSmart CNX 15 24VDC slide gate operator

HySecurity SlideSmart CNX 15 24VDC slide gate operator - view 2

HySecurity SlideSmart CNX 15 24VDC slide gate operator - view 3

HySecurity SlideSmart CNX 15 24VDC slide gate operator - view 4

Price

Current Trade Policy Costs Included In Price

In Cart Discounts Offered on Many Products

GSA, Net 30 and purchase orders available

Quantity

Description

Discontinued by HySecurity. The SlideSmart 535 is the updated version. The HySecurity SlideSmart CNX 15 is a 24 VDC brushless slide gate operator (1/2 hp equivalent) for gates up to 50 ft and 1,500 lb, with open and close speeds set separately at 0.75, 1 or 1.25 ft/s.

Direct drive gear train. SmartCNX controller, set up from the keypad or the S.T.A.R.T. CNX smartphone app. Ice Breaker Mode, adaptive IES and non-contact limit sensors. Two 8Ah batteries give up to 4,000 ft of travel after a power loss. Works with Nice BlueBUS accessories and the Nice OXI receiver. Rated -13°F to 158°F.

What's Included

30 ft of #40 corrosion-resistant roller chain
(2) cast steel gate mounting brackets
Nice EPMAB BlueBUS photo eye
5 ft ASO edge sensor
(2) 8Ah batteries

Before You Order

115 VAC or 208-230 VAC input, or 24 V solar panels.
UL 325 Class I, II, III and IV.

Operator uses powerful brushless motor with advanced digital controls for smooth operation and long life.
Direct drive gear provides high reliability and quiet operation.
Unique “Ice Breaker Mode” powers through morning snow buildup, reducing unnecessary service calls and user complaints.
Adaptive IES (inherent entrapment sensor) optimizes gate resistance sensitivity and reduces false trips or unnecessary call backs.
Solid state non-contact limit sensors
Intelligent sensor inputs that automatically configure for pulsed or 10k monitoring
Key locked, fade resistant, high impact injection molded clam shell cover fits tightly to deter rodents and other small pests.
All service needs accessed from front cover.
UPS standard battery backup uses two 8Ah batteries for up to 4,000 ft of gate travel after AC power loss. Upgrade to 35Ah batteries with the Extended Battery Backup Kit for 18,000 ft of gate travel after AC power loss.
Continues to operate with dead or dying batteries while on AC.
Field configurable to fail open or secure if batteries deplete.
The HySecurity designed intelligent, three stage charging system monitors battery condition to maximize battery life.
Easily configure gate operation to specific site requirements with our new SmartCNX Controller.
Use the S.T.A.R.T. CNX™ installer app for full control from your phone
Upload latest software, troubleshoot system and save operator configurations via smartphone app or USB
Programmable dual or sequenced gate integration.
Three configurable user relays plus optional SmartCNX I/O Expansion module - providing eight additional inputs supporting 10k, 0-5V (analog), and dry contact inputs.
Make loop problems go away with Hy5B™ 2.0: The vehicle detector with automatic sensitivity adjustment, advanced tailgating detection, and loop health scoring.
Compatible with Nice BlueBUS™ accessories. Nice OXI receiver compatible with ERA and INTI Transmitters.

Max Gate Length: 50 ft
Max Gate Weight: 1,500 lb
Motor: 24 VDC brushless, 1/2 hp equivalent
Input Power: 115 VAC or 208-230 VAC, 50/60 Hz; or 24 V solar panels
Operating Voltage/Accessory Power: 24 VDC; accessory power 24 VDC, 2A total
Duty Cycle: Continuous
UL 325 Class: I, II, III, IV
Battery Backup: Included: (2) 8Ah, up to 4,000 ft; optional 35Ah kit, up to 18,000 ft
Solar Capable: Yes
Drive: Electromechanical, direct drive gear train, #40 chain
Gate Speed / Open Time: 0.75, 1 or 1.25 ft/s, open and close set separately
Operating Temperature: -13°F to 158°F
Warranty: 5 years (7 years single-family residential) with product registration

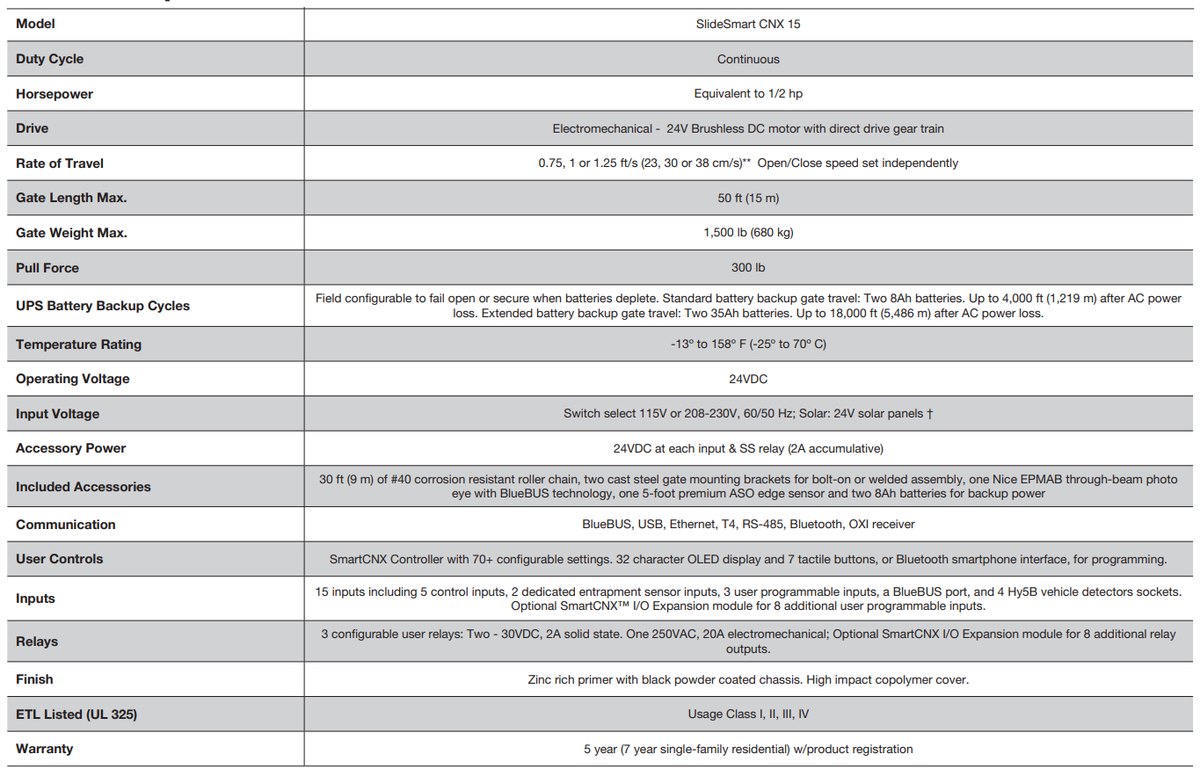

Hysecurity SlideSmart CNX 15 Slide Gate Operator ***Discontinued - Replaced by SlideSmart 535*** - Specifications

Spec Sheet
Installation Manual
