Locinox LUKY Industrial Lock Manuals & Support

Locinox LUKY

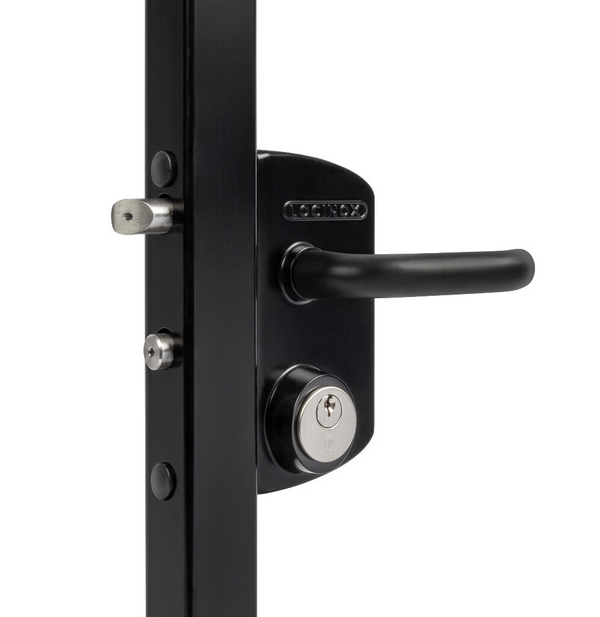

The Locinox LUKY is a surface mounted industrial gate lock with a US mortise cylinder. It bolts onto square gate frames with no welding.

It has a key operated dead bolt and a day bolt that both adjust in and out by 3/8 in. Models fit frames from 3/8 in to 2-3/4 in, in black or silver.

Identify your model

The model number gives the frame size: LUKY10 fits 3/8 to 7/8 in, LUKY20 7/8 to 1-1/4 in, LUKY30 1-1/4 to 1-1/2 in, LUKY40 1-1/2 to 2 in, LUKY50 2 to 2-3/8 in and LUKY60 2-1/2 to 2-3/4 in. -9005 is black and -SILV is silver.

Key specs

Mounting Surface mount on the gate frame, no welding
Cylinder 1-1/8 in US mortise, Schlage C keyway, Adams Rite cam
Bolts Dead bolt and day bolt, 3/8 in in/out adjustment
Frame sizes 3/8 in to 2-3/4 in by model
Finishes Black (9005) or silver
Keeps SAKL, SHKL or SMKL keeps

Manuals and documents

Installation Manual

Troubleshooting

Use the keep that matches your post and gap.

Bolt does not line up with the keep

  • Adjust the day bolt and dead bolt in or out by up to 3/8 in with a 3 mm hex key.
  • Check the gap between gate and post against the keep you used.

Latch on the wrong side

  • The day bolt direction can be changed. See the lock manual.

Common questions

Measure the gate frame tube. Pick the model whose range covers it, from LUKY10 (3/8 to 7/8 in) to LUKY60 (2-1/2 to 2-3/4 in).

Yes. Use the 3019LA round adaptor for round gate frames, the 3018LA plate for round posts, or the CLH-LA adaptor for chain link.

Yes. It takes a standard 1-1/8 in US mortise cylinder with a Schlage C keyway.
