Nice Apollo Titan 912L Actuator Manuals & Support

Nice Apollo 912L

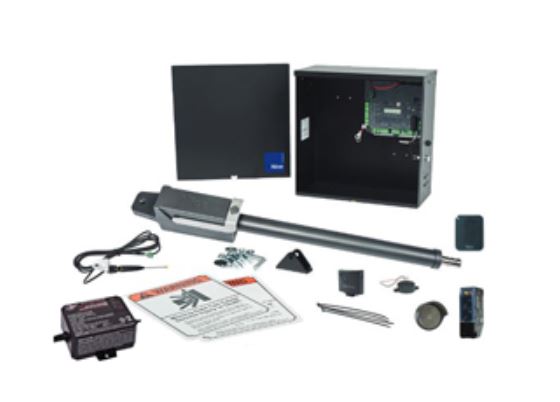

The Nice Apollo Titan 912L is a 12 VDC linear actuator for residential, farm and ranch swing gates up to 20 ft and 600 lb. It is sold alone or in TITAN12L1 kits with the 1050 control board, for AC or solar power.

It has a keyed manual release, limit adjustment under a locking cover and a modular design, so the motor, limit assembly and screw drive can be replaced in the field. It bolts to existing 816 and 416 mounting hardware.

Identify your model

912L has a 12 ft harness and 912LX has a 42 ft harness. The -1 and -2 kits add mounting hardware. T12L1-AC-KIT and T12L1-SLR-KIT are complete kits with the CBOX1050 control box.

The 816 is the earlier actuator for 1500 series systems. See the 816 support page.

Key specs

Max gate 600 lb / 20 ft per leaf
Operating voltage 12 VDC
Open time About 14 seconds to 90°
Length 42 in retracted, 71 in extended
Position sensing Encoder
Control boards 1050 or 936
Release Keyed manual release
UL 325 usage class Class I and II (kits)
Operating temperature -4 to 122 °F

Manuals and documents

Installation Manual

Programming Guide

Quick Start

Parts List

Spec Sheet

Troubleshooting

The 1050 control board shows messages on its LCD. These are the common ones.

Dynamic M1, Static M1 or Overload

  • The actuator tripped the built-in current sensor or drew too much current.
  • Check for an obstruction in the gate path and for worn or binding gate hardware.

Hard Shut Down

  • The current sensor tripped twice in a row.
  • Clear the cause, then press the Reset or Hard Shut Down button to run again.

Photo Test FAIL, BlueBus Error or Min 1 Sensor for Swing Gate

  • Check that the photo eyes are connected, aligned and set with the correct jumpers.
  • A swing gate needs at least one external entrapment sensor connected and programmed.
  • If the number or type of BlueBUS sensors changed, redo the learn procedure.

Input STOP or Device Error

  • Input STOP: the STOP input is not connected to GND. Install the jumper or check the stop button wiring.
  • Device Error: check the position sensor wiring for each actuator, and make sure no input is active during the learn.

Common questions

Yes. It bolts to the existing 816 and 416 gate hardware. Run it on a 1050 or 936 control board.

Unlock the keyed manual release on the actuator and swing the gate. Lock it again before you run the gate.

The AC kit includes two 8 Ah batteries kept charged by a transformer. Solar kits need batteries sized to the site.

The 1050 board stops after two current sensor trips in a row. Clear the obstruction, then press the Reset or Hard Shut Down button.

Replacement parts

Nice Apollo 10070000 lock cylinder kit with key and latch
NICE 10070000 Lock Cylinder Kit, Key and Latch Lock cylinder kit, key and latch for TITAN12L/12L1
NICE APOLLO
Nice SPSWLSM-01 Titan 912L limit switch
NICE SPSWLSM-01 Limit Switch for TITAN 912L/912L1
NICE APOLLO
Nice NTK1010 spare key set
NICE NTK1010 Keys, Spare Set of 2 spare keys for TITAN912L/912L1 and Nice 4000/8000 series cover locks
NICE APOLLO
Nice Apollo 10055090 1050 board retrofit bracket kit
NICE APOLLO 10055090 Bracket, Retrofit Kit, for 1050 control board Retrofit brackets, for mounting the 1050 control board in 11111B control boxes
NICE APOLLO
Nice Apollo 400 long gate conversion kit
NICE APOLLO 400 Conversion Kit, 416, 816 or 912L Long gate conversion kit for 416, 816 or 912L actuators, increases maximum lead length to 20 ft
NICE APOLLO
Nice PD0942A3000 Titan 912L upper cover
NICE PD0942A3000 Cover, Upper Upper cover for TITAN12L/12L1, aluminum
NICE APOLLO
Nice ABF/A 433.92 MHz directional antenna
NICE APOLLO ABF/A Antenna, Directional, 433.92 MHz Adjustable whip antenna with mounting bracket, removable terminal block and 10 ft coaxial cable for Nice 433.92 MHz receivers
NICE APOLLO
Nice Apollo 1050U gate control board
Nice Apollo 1050U gate control board - view 2
NICE APOLLO 1050U Control Board for single or dual applications, UL325 7th Edition Compliant
NICE APOLLO
NICE APOLLO MB1050 Box, Control, MB1050 Plastic AC control box, 14.25w x 15.125h x 9d inch, includes 1050 control board, OXI receiver, ABF antenna kit, 2 - 8Ah batteries and 320W Power Supply, UL325 7th Edition Compliant
NICE APOLLO MB1050 Box, Control, MB1050 Plastic AC control box, 14.25w x 15.125h x 9d inch, includes 1050 control board, OXI receiver, ABF antenna kit, 2 - 8Ah batteries and 320W Power Supply, UL325 7th Edition Compliant
NICE APOLLO
NICE APOLLO CBOX1050 STD CONTROL BOX W/1050U BOARD
NICE APOLLO CBOX1050 STD CONTROL BOX W/1050U BOARD
NICE APOLLO
NICE APOLLO SPTA16001 Lever kit, 12 - 24V, for TITAN12L/12L1
NICE APOLLO SPTA16001 Lever kit, 12 - 24V, for TITAN12L/12L1
NICE APOLLO
NICE PD0929A3000 Cover, Motor, Bottom Bottom motor cover for TITAN12L/12L1, aluminum
NICE PD0929A3000 Cover, Motor, Bottom Bottom motor cover for TITAN12L/12L1, aluminum
NICE APOLLO
NICE APOLLO HPE0001USA Fuse Holder, Panel Mount Fuse holder, panel mount
NICE APOLLO HPE0001USA Fuse Holder, Panel Mount Fuse holder, panel mount
NICE APOLLO
NICE SPAMG205A00 Motor, Electric, 12V, Complete Complete motor compartment for TITAN12L/12L1, 12V
NICE SPAMG205A00 Motor, Electric, 12V, Complete Complete motor compartment for TITAN12L/12L1, 12V
NICE APOLLO
NICE SPSW912-01 Motor, Electric, 12V Electric motor only, TITAN12L/12L1, 12V
NICE SPSW912-01 Motor, Electric, 12V Electric motor only, TITAN12L/12L1, 12V
NICE APOLLO
NICE SPAMG206A00 Tube, Assembly, 912L 912L rod assembly, includes cover tube and extension tube for TITAN12L/12L1
NICE SPAMG206A00 Tube, Assembly, 912L 912L rod assembly, includes cover tube and extension tube for TITAN12L/12L1
NICE APOLLO
NICE APOLLO 10055490 Bracket, Pivot, Kit, Single & Dual Bracket kit, includes weld-on pivot bracket, gate attach bracket and hardware for all 416, 816 and 912L actuators
NICE APOLLO 10055490 Bracket, Pivot, Kit, Single & Dual Bracket kit, includes weld-on pivot bracket, gate attach bracket and hardware for all 416, 816 and 912L actuators
NICE APOLLO
NICE APOLLO MX4681 Pivot Bolt Kit for 912L Actuators
NICE APOLLO MX4681 Pivot Bolt Kit for 912L Actuators
NICE APOLLO
NICE APOLLO 446 Bracket, Pivot, Bolt-On Bolt-on pivot bracket for 816 or 912L actuators
NICE APOLLO 446 Bracket, Pivot, Bolt-On Bolt-on pivot bracket for 816 or 912L actuators
NICE APOLLO
NICE APOLLO A2095 Harness, 7 wire, 42 ft, no connector Harness, 7 wire, 42' overall length, no connector, for motors used with 936 or 1050 series control board
NICE APOLLO A2095 Harness, 7 wire, 42 ft, no connector Harness, 7 wire, 42' overall length, no connector, for motors used with 936 or 1050 series control board
NICE APOLLO
NICE APOLLO A2094 Harness, 7 wire, 12 ft, no connector Harness, 7 wire, 12' overall length, no connector, for motors used with 936 or 1050 series control board
NICE APOLLO A2094 Harness, 7 wire, 12 ft, no connector Harness, 7 wire, 12' overall length, no connector, for motors used with 936 or 1050 series control board
NICE APOLLO
NICE APOLLO SPTTN03 Seal and Housing, 912L Seal, housing and guide
NICE APOLLO SPTTN03 Seal and Housing, 912L Seal, housing and guide
NICE APOLLO
NICE APOLLO 10015290 Bracket, Gate Attach Kit Gate attach bracket kit for 816 or 912L actuators, includes hardware
NICE APOLLO 10015290 Bracket, Gate Attach Kit Gate attach bracket kit for 816 or 912L actuators, includes hardware
NICE APOLLO
