3BXL Open/Close/Stop Exterior Control Station w/ Lockout (Metal)
3BXL Open/Close/Stop Exterior Control Station w/ Lockout (Metal)
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description

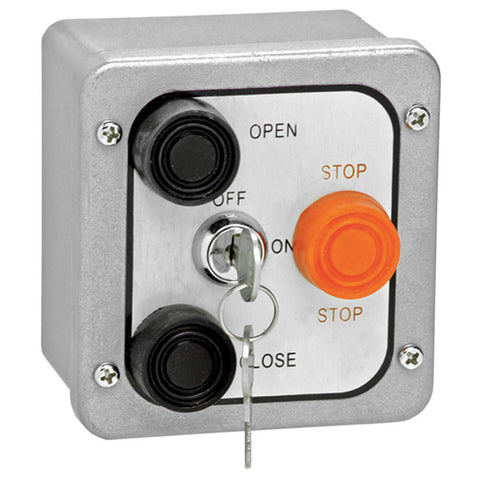

The 3BXL is a 3-button Open / Close / Stop control station with a keyed lockout in a NEMA 4 metal enclosure. It surface mounts outdoors on a wall, post or column. Buttons are momentary and set in a triangle layout. The enclosure measures 4-3/8 in H x 4-1/8 in W x 2-5/8 in D.
Use it at exterior door and gate positions where the station must be locked out after hours. The keyswitch lets staff disable the buttons. Wire the open, close and stop contacts to the operator inputs plus common, and plan for the lockout circuit.
Features
- Open, Close and Stop push buttons
- Keyed lockout
- Momentary contacts
- Metal enclosure
- NEMA 4 rated for exterior use
- Surface mount
- UL listed
Before You Order
- Check if your operator needs a normally closed or normally open stop circuit before wiring.
- For the same metal station without lockout, order the 3BX. For a non-metallic housing with lockout, see the 3BXLT.
- For corrosive or washdown areas, see the 3B4XL (NEMA 4X with lockout).
- Run 4 conductors for open, close, stop and common, plus the lockout circuit.
- Need 2 buttons or 1? See the 2BX and 1BX.
-NEMA 4
-UL Listed
-Momentary Contact
-Open/Close/Stop Control with Lockout
-Dimensions: H=4-3/8", W=4-1/8", D=2-5/8"
- Model: 3BXL
- Buttons: 3 plus keyed lockout
- Button Functions: Open / Close / Stop; Lockout
- Contact Type: Momentary
- Stop Circuit: Check your operator (see Before You Order)
- Enclosure Material: Metal
- Enclosure Rating: NEMA 4
- Mounting: Surface mount, exterior
- Dimensions: 4-3/8 in H x 4-1/8 in W x 2-5/8 in D
- Lockout: Keyed
- Wiring/Terminals: Open, close, stop, common plus lockout circuit
- Commercial door operators with 3-button (open/close/stop) inputs
- Gate and barrier operators with dry-contact open, close and stop inputs
Lockable exterior 3-button control for doors, gates and barrier arms that must be disabled after hours.
- Commercial overhead and rolling doors
- Loading dock and warehouse doors
- Commercial slide and swing gates
- Barrier arm lanes
- Industrial building entries
