BD LOOPS Loop Goop - Black **REPLACED BY LOOP SHIELD SEALANT**

BD Loops ITEM: BD-LG Black
BD Loops Loop Goop Sealant Black
BD Loops Loop Goop Sealant Black - view 2
BD Loops Loop Goop Sealant Black - view 3
BD Loops Loop Goop Sealant Black - view 4
BD Loops Loop Goop Sealant Black - view 5
BD Loops Loop Goop Sealant Black - view 6
BD Loops Loop Goop Sealant Black
BD Loops Loop Goop Sealant Black - view 2
BD Loops Loop Goop Sealant Black - view 3
BD Loops Loop Goop Sealant Black - view 4
BD Loops Loop Goop Sealant Black - view 5
BD Loops Loop Goop Sealant Black - view 6

BD LOOPS Loop Goop - Black **REPLACED BY LOOP SHIELD SEALANT**

BD Loops ITEM: BD-LG Black
/
  • Current Trade Policy Costs Included In Price
  • In Cart Discounts Offered on Many Products
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

Discontinued by BD Loops. The BD-LS Loop Shield Sealant is the updated version. BD Loops Loop Goop was a one-part polyurethane resin sealant in black for sealing inductance loops in saw cuts in concrete and asphalt for door, gate, and parking applications. Sold per tube.

Loop Goop needed no mixing or heating. It sealed out moisture and resisted de-icing salts, antifreeze, gasoline, motor oil, and hydraulic brake fluid. It stayed flexible in cold weather and bonded to the loop wire and the saw-cut walls. Traffic could cross right after application.

Before You Order

  • This sealant has been replaced. For new installs, order BD-LS Loop Shield Sealant in black.
  • For sealing in freezing temperatures, see the BD-LG2 two-part polyurethane sealant.
  • A 3/16 in saw blade with BD Loops 3/16 in preformed saw-cut loops uses less sealant than a wider cut.
  • Loop sealants ship UPS Ground only, to addresses within the United States.
  • Discontinued by BD Loops. Replaced by BD-LS Loop Shield Sealant
  • Color: Black
  • One-part polyurethane resin loop sealant, no mixing or heating
  • For sealing inductance loops in saw cuts in concrete and asphalt
  • Resists de-icing salts, antifreeze, gasoline, motor oil and brake fluid
  • Stays flexible in cold weather
  • Traffic can cross right after application
  • Surface Preparation: Surface should be clean. Alcohol can be used to clean the surface if necessary. Priming is not required.

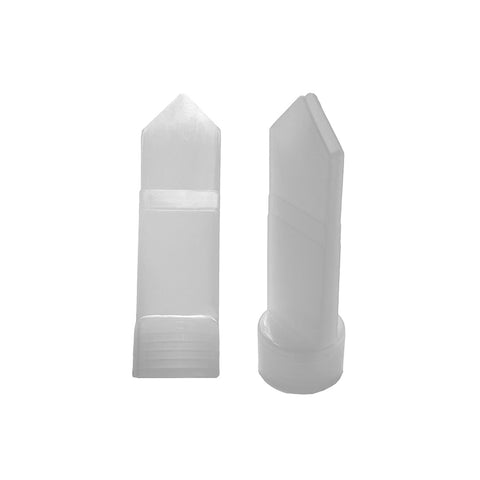

  • Application: Cut the tip off the cartridge just above the nozzle threads. Thread the sealant tip onto the cartridge and place it in a quart size caulking gun. Apply from the bottom of the saw-cut groove. Slightly underfill the groove to within 1/8 in (3.12 mm) of the surface so vehicles do not track the sealant. Do not use the high speed setting on powered dispensing guns.
  • Storage: Store in a dry, cool, well-ventilated place. 1 year shelf life from date of manufacture.
  • Packaging: 30 fl oz rigid plastic caulking cartridges, compatible with standard quart tube caulking guns
  • Curing: Skins over in approximately 45 minutes at 70°F (21°C) and 50% relative humidity. Temperatures below 32°F (0°C) and/or low humidity slow skin and cure time. Strength starts to develop immediately and keeps increasing for 7 days after application. If the groove is slightly underfilled, traffic is permitted immediately after application. Not designed for installation in freezing temperatures; use BD-LG2 for cold weather installations.
  • Spills / Clean Up: Wet BD-LS can be cleaned up with rubbing alcohol. Dry BD-LS can be removed by abrading or scraping.
  • Safety and Handling: Refer to the Safety Data Sheet for BD-LS

Physical Properties (typical, not specifications)

  • Viscosity: 40,000 cps (Spindle 7, 4 rpm)
  • Colors: Gray or Black
  • Solids: 100%
  • Hardness, Shore A (ASTM C-661): 25
  • Elongation (ASTM D-412): 300%
  • Tensile Strength (ASTM D-412): 1.33 MPa
  • Lap Shear (ASTM D-412): N/A
  • QUV Testing (ASTM G-26): Pass (4,000 hrs)

Coverage

  • 3/16 in wide blade/groove, 1¼ in depth: 20 ft per cartridge, 240 ft per case
  • 3/16 in wide blade/groove, 1½ in depth: 16 ft per cartridge, 192 ft per case
  • 1/4 in wide blade/groove, 1¼ in depth: 15 ft per cartridge, 180 ft per case
  • 1/4 in wide blade/groove, 1½ in depth: 12 ft per cartridge, 144 ft per case

BD Loops Resource Center

BD Loop Shield Literature

Loop Goop Info

Loop Goop MSDS

Sealant Needed Calculator

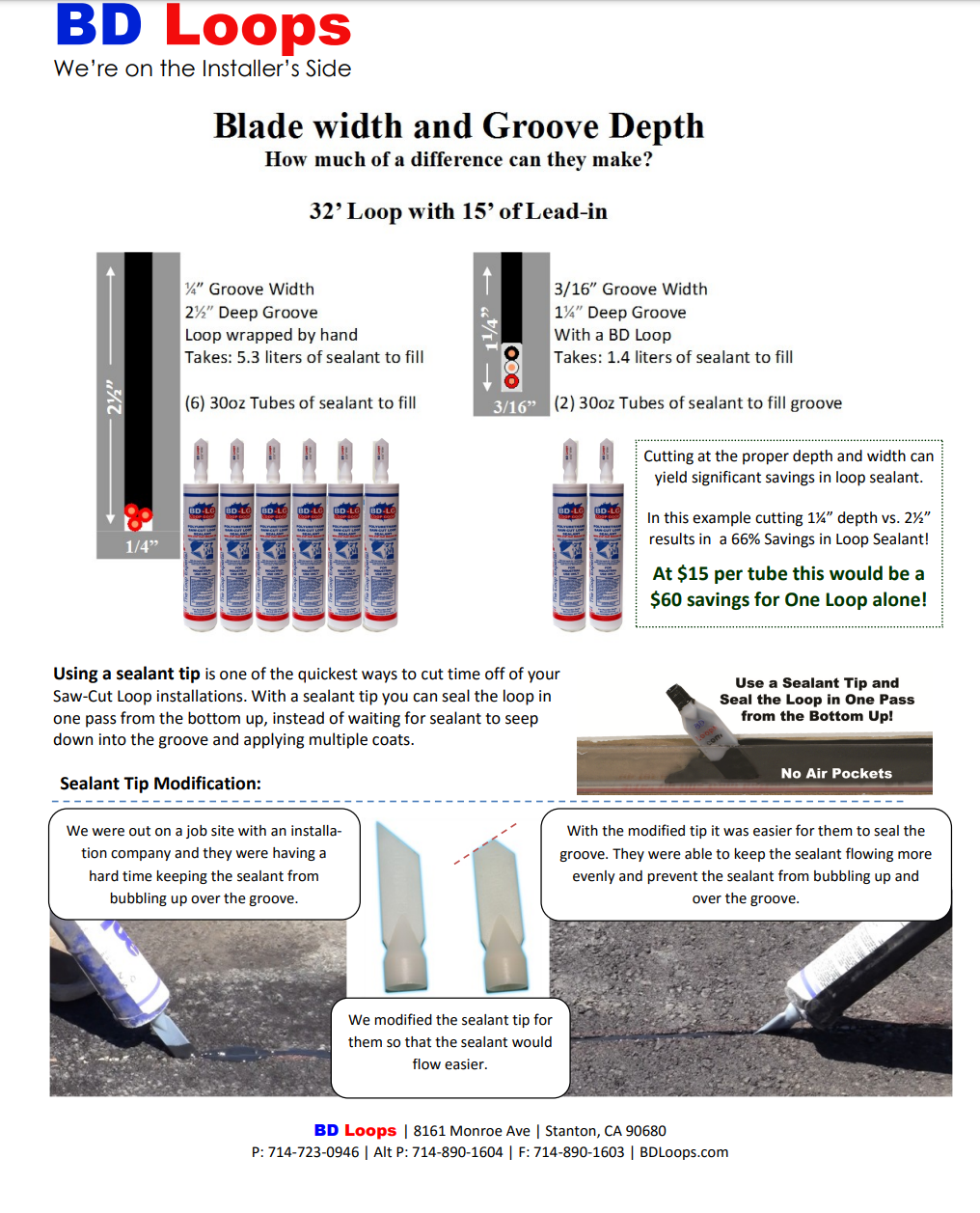

3/16" Blade Info Sheets

BD LOOPS Loop Goop - Black **REPLACED BY LOOP SHIELD SEALANT** - Resources

Was used to seal inductance loops in saw-cut slots in concrete and asphalt at gate, door and parking installs.

  • Sealing saw-cut loop slots in concrete
  • Sealing saw-cut loop slots in asphalt
  • Gate, door and parking loop installs
  • Lanes that reopen to traffic right away

See below for a comprehensive training and educational library from BD Loops

. Debunking Multi-Loop Configurations

. BD Loops Debunks Industry Myth – Loop
Wire Gauge

. BD Loops Debunks Industry Myth – Solid
Vs. Stranded Wire

. BD Loops Debunks Industry Myth – High
Voltage Lines And Loops.

. BD Loops Debunks Industry Myth –
Electrical Lines & Snow Melt Systems Near Loops

. Top 10 Saw-Cut Loop Tips & Tricks

. Replacing Old Loops? Read This!

. An Introduction To Inductance Loops
And Loop Phasing

. Loops And The Effect Of Parallel,
Series, And Phasing

. Loops: How To Insure Proper Placement
And Size

. Myths And Facts About Saw-Cut Loops

. Loops: Understanding And Preventing
Phantom Detections And Air Pockets

. The Importance Of Running The Lead-In
Through Conduit

. Training: Loops, Magnetism, And
Twisted Lead-Ins

. Choosing The Right Size Blade For
Saw-Cut Loops

. Saw-Cut Loop Tips And Tricks

Tests

. Loops And Power Lines

. Loops And Snow-Melt Systems

. Wire Gauge Comparison Test, Small & Large Loops.

. 16AWG Vs. 24AWG Loop Detection
Comparison

. Polyethylene Pipe Insulation Test

. Twisted Wire (In The Loop Itself) Test

. Shovel Test – Running Lead-In Through
Conduit

. Phasing Test

. TFFN / THHN Wire Test

. 1/8″ Groove Test

. Watch The Width

. Stand Off Distance

. Air Pocket Test

How To

. Direct Burial Preformed Loop
Installation Instructions

. Saw-Cut Preformed Loop Installation
Instructions

. Installing Loops Under Pavers

. Loop Size Chart

. How to Properly Meg a Loop

. How to Make a Preformed Saw-Cut Loop
Fit Every Time

. Loop Sealant Tips and Tricks

. Fully Seal the Saw-Cut Loop Yoke –
Installation Trick

. Modify a Saw-Cut Loop to a Direct
Burial Loop.

. Automatic Open (Free Exit) Loop
Formula

. Installing Loops in Asphalt

. BD Loops Sand Trick

. Saw-Cut Loop Tips and Tricks

. Repair Saw-Cut Loop Yoke –
Troubleshooting Trick

. Inductance Loop Warning Sign
