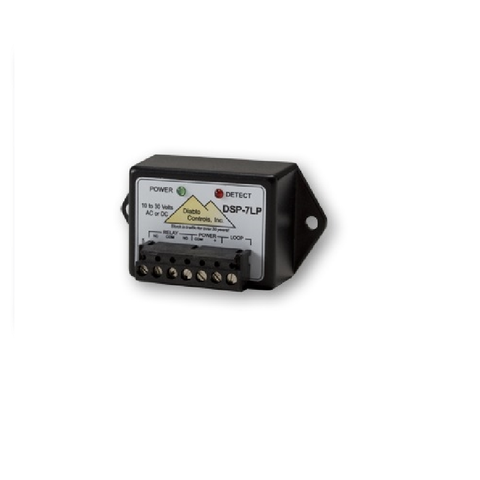

DIABLO DSP-7LP, VEHICLE DETECTOR

DIABLO DSP-7LP, VEHICLE DETECTOR

  • Manufacturer: Diablo Controls
  • Item Number:

  • $85.00


DSP-7LP, Low Power Vehicle Detector

Overview

This low powered vehicle detector is perfect for solar powered applications!

Automatically adjusts its sensitivity level when used on different sized loops.

Covered by United States patent number US 7,132,959 “Non-Interfering Vehicle Detection”.

Features

Designed for solar power applications

Designed to be cross talk free between other loops

Plug ang Play

Small profile, making it perfect for most installations

Automatically compensates for loop and lead-in sizes

Switchless, self adapting to most common installations

Fail Safe Operation

Wide low-voltage operation

Application Notes

The DSP-7LP vehicle detector has been specifically designed for solar powered gate applications specifically for “fail safe” operations, such as on safety loops.

This detector will operate on any voltage from 10 to 30 volts AC or DC and draws approximately 1 milliampere with no vehicle on the loop.
This micro-sized detector will automatically adjust its sensitivity level when used on different loop sizes.
The detector loop inductance should be between 20 and 2000 microhenries.

The DSP-7LP detector has many of the same features as our standard DSP-7 but beats all competition for reliability, simplicity, and "no car" current consumption.

LED Indicators: The green Power LED blinks once per second to indicate the detector is operating and powered.
The red Detect LED will turn on when a vehicle is over the loop detection area.

Loop or Wire Failures: In the case of a loop circuit failure, the green LED flashes slowly (twice per second) for an open loop circuit failure.
The green LED will flash fast (10 times per second) to indicate a shorted loop circuit.

Fail Safe vs Fail Secure Info: A fail safe detector will output "detect" when the loop circuit is failed. This is always useful on a safety loop.
On the free exit loop this will keep the gate open until the situation is fixed. This is useful in applications where it is important to allow traffic flow to continue.
A fail secure detecor will never output "detect" when theloop circuit is failed. This will keep the gate closed. This is useful in high-secure areas or installations where containment is needed.
The DSP-7 is a fail safe detecor. Note: Never use a fail secure detector on a safety loop.

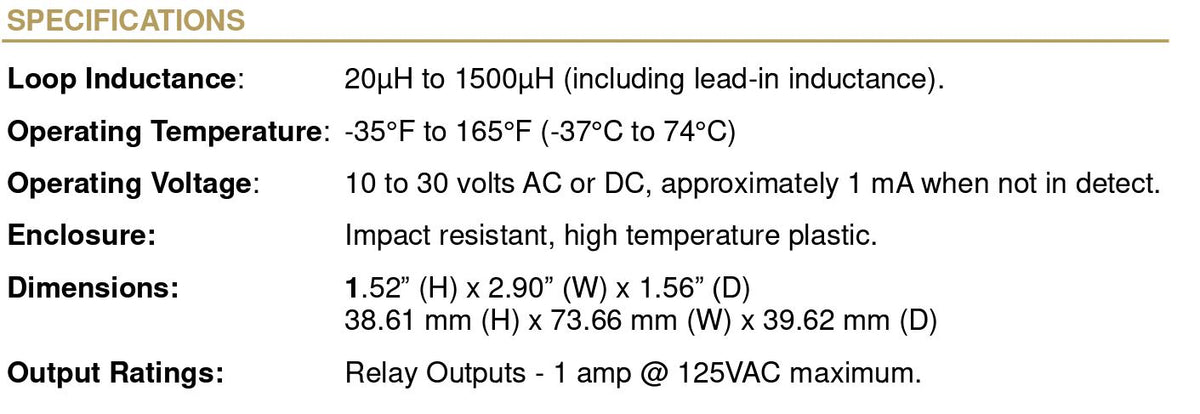

Power: This detector is powered with 10 to 30 volts AC or DC. Approximately 1 mA current.
The relay contacts are rated at 1 amp maximum.

Connector: Removable 7-pin terminal block.

Pin assignments (from left to right) are shown below:

1: Relay Normally Closed (NC) - contact opens for detect
2: Relay Common
3: Relay Normally Open (NO) - contact closes for detect
4: Power common
5: Power in (10 to 30 Volts AC or +DC)
6: Loop
7: Loop

Size: Height: 1.52" Width: 2.9" Depth: 1.56"

Operating Temperature: -35°F to 165°F (-37°C to 74°C)
