Description
EMX USVD-4X ultrasonic drive-thru vehicle sensor. It detects a vehicle 1 to 5 ft in front of it using four ultrasonic transducers, with no loop in the pavement. Mount it on a post or order box and aim it where the vehicle stops. Power is 12 to 24 VDC or VAC.
Response time is 2.0 seconds. Outputs are two SPDT (Form C) relays rated 1 A at 24 VDC. The auxiliary relay can pulse on entry, exit or both, and an output delay of 1, 2 or 4 seconds can be set. Draw is 60 mA. The ABS housing is NEMA 4X and measures 5.7 in x 3.6 in x 2.3 in. Operating range is -40°F to 185°F. Warranty is 2 years from EMX.
Before You Order
- Power: 12 to 24 VDC or VAC, 60 mA.
- For an audible alert, pair it with the EMX CHIME-100, or order the DAK-USVD kit with both.
- Triangular Planar Array Technology
- Aux. relay, settings for pulse on ENTRY, EXIT or BOTH
- Output delay option for 1, 2 and 4 seconds
- Operating range: 1ft. – 5ft.
- Response time: 2.0 seconds
- Supply Voltage12…24 VDC/VAC
- Relay output configuration: 2 SPDT (form C)
- CE compliant

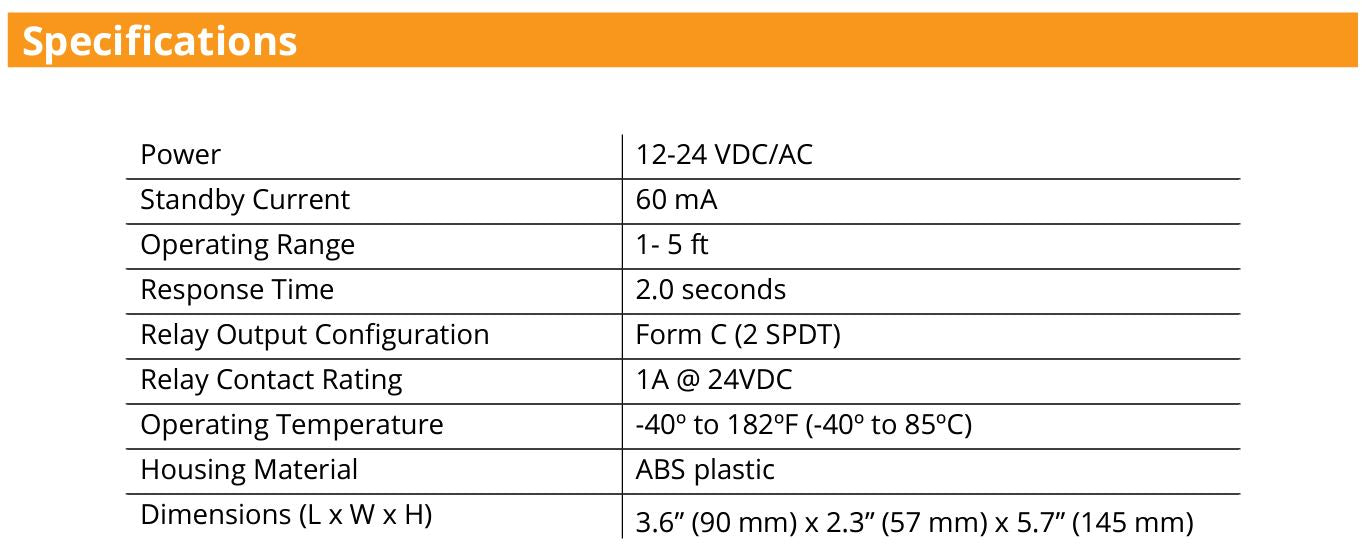

- Part Number: EMX-2700-1
- Power: 12-24 VDC/VAC
- Standby Current: 60 mA
- Operating Range: 1-5 ft
- Response Time: 2.0 seconds
- Relay Output Configuration: Form C (2 SPDT)
- Relay Contact Rating: 1 A @ 24 VDC
- Operating Temperature: -40 to 182°F (-40 to 85°C)
- Housing Material: ABS plastic, NEMA 4X
- Dimensions (L x W x H): 3.6 x 2.3 x 5.7 in (90 x 57 x 145 mm)
- Sensing Elements: 4 ultrasonic transducers in TPA (triangular planar array) configuration
- Operating Range: 1-5 ft
- Response Time: 2.0 seconds
- Relay Output Configuration: 2 SPDT (form C)
- Relay Contact Rating: 1 A @ 24 VDC
- Aux. Relay: Pulse on entry, exit or both
- Output Delay Option: 1, 2 and 4 seconds
- Power Indicator / No Vehicle: Green LED
- Object In Range: Flashing green LED on each input, continuous LED on DETECT
- Supply Voltage: 12-24 VDC/VAC
- Operating Current: 60 mA
- Operating Temperature: -40 to 182°F (-40 to 85°C)
- Dimensions: 5.7 x 3.6 x 2.3 in (145 x 90 x 57 mm)
- Weight: 0.6 lb (275 g)
- Housing: ABS, NEMA 4X
- Connection: 10 position terminal block
Manuals & Support: installation manuals, wiring diagrams and troubleshooting
Used to detect a vehicle stopped in front of it at drive-thru points, with no loop in the pavement.
- Drive-thru order points
- Drive-thru pickup windows
- Post or order-box mounting
- Lanes where no loop can be cut
