Linear AKR-1 Keypad w/ Wireless Receiver

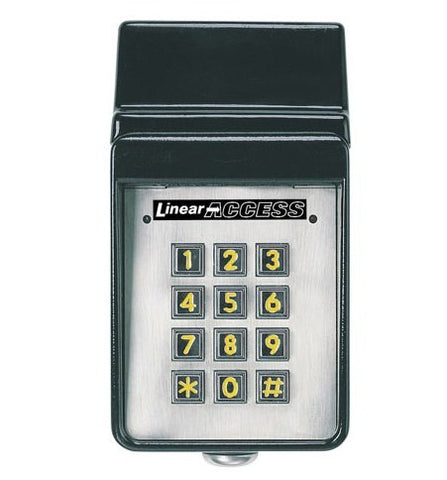

The Model AKR-1 Exterior Digital Keypad with Radio Receiver is a digital keyless entry system designed for access control applications. The keypad is housed in a rugged cast aluminum enclosure that can be mounted to a pedestal or bolted directly to a wall. The die-cast keys have bright, easy-to-read yellow graphics.

Up to 480 entry codes, from 1 to 6 digits in length, can be programmed. They can activate either, or both, of the relay outputs.

Up to four sets of block coded MegaCode� transmitters (up to 480 transmitters total) can be used to gain access through the AKR-1's built-in radio receiver. Each transmitter can be individually suspended or re-activated. Four facility codes can be programmed to identify each block of transmitters. A Radio Test Mode is provided for testing transmitters and detecting radio interference. Programming of individual (non-block coded) transmitters is not supported by the AKR-1.

Linear's Model MGT safety edge transmitter is compatible with the AKR-1. This supervised transmitter is used to detect and transmit obstacle events to the AKR-1 receiver. Obstacle signals from an MGT transmitter will activate Relay #2.

* Self-contained keyless entry system ideal for airports, hospitals, warehouses, office buildings, parking lots, and many other commercial facilities

* Rugged, cast aluminum enclosure for indoor or outdoor mounting on a wall or pedestal

* Built-in radio receiver

* Four independent outputs and timers: two form C relays and two solid-state open collector outputs

* Accepts 480 entry codes, 480 block code transmitters, plus one fully supervised Model MGT safety edge transmitter

* Two LED indicators show system status

* Key operating features include: door sense input; inhibit input; request-to-exit input; alarm shunt output; timed anti-passback; and keypad lockout

* Down light illuminates whenever keypad is used

* Tactile and audible feedback

* Keylock secures keypad to mounting backplate

* RF frequency: 318 MHz

* 4" W x 7" H x 3" D

* Order number: ACP00747
