Linear Delta 3 DTG Safety Edge Transmitter
Linear Delta 3 DTG Safety Edge Transmitter
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description

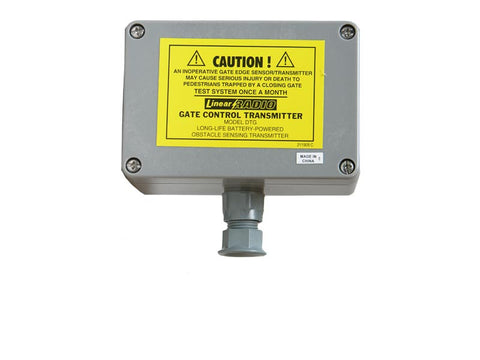

The Linear DTG (part DNT00072) is a wireless gate safety edge transmitter on 310 MHz in the Delta-3 format. It mounts on the gate, door or barrier arm and wires to a standard exterior safety edge sensor. When the edge is hit, it sends an entrapment signal to the receiver so the operator can stop or reverse. It runs on a 9-volt battery and has 256 codes set on DIP switches.
It replaces coil cords and cable runs to the moving gate. Four mounting screws are included. Size is 4.28 in W x 2.875 in H x 2.25 in D.
What's Included
- DTG safety edge transmitter
- Four mounting screws
Before You Order
- Works with Linear Delta-3 receivers on 310 MHz.
- Needs a separate safety edge sensor wired to the transmitter, sold separately.
- Connect the receiver output to the operator's safety edge or obstacle input. Check the operator manual for edge input type and monitoring requirements.
- Linear Delta-3 transmitters: DT (1-channel visor), DT-2A (2-channel visor), DT-4A (4-channel visor), DT3+1 (4-channel gate/door visor), Mini-T (1-channel key ring), DTKP (keypad), DTG (safety edge).
- Safety edge transmitter
- Activates one Delta-3 receiver for remote stop or reverse safety edge
- No cables or coiled wires
- Mounting screws (4) supplied
- Power: 9-volt battery
- Codes: 256 (set by dip switches)
- RF frequency: 310 MHz
- Dimensions: 4.28″ W x 2.875″ H x 2.25″ D
- Product Type: Wireless Safety Edge Transmitter
- Model: DTG
- Connectivity: 310 MHz Delta-3, 256 DIP switch codes
- Power: 9-volt battery
- Mounting: Gate, door or barrier arm, 4 screws
- Dimensions: 4.28 in W x 2.875 in H x 2.25 in D
Wireless link from a gate safety edge to the operator's receiver, with no coil cord or cable run.
- Slide gate leading edges
- Swing gate edges
- Barrier arm lanes
- Replacing coil cord edge wiring
