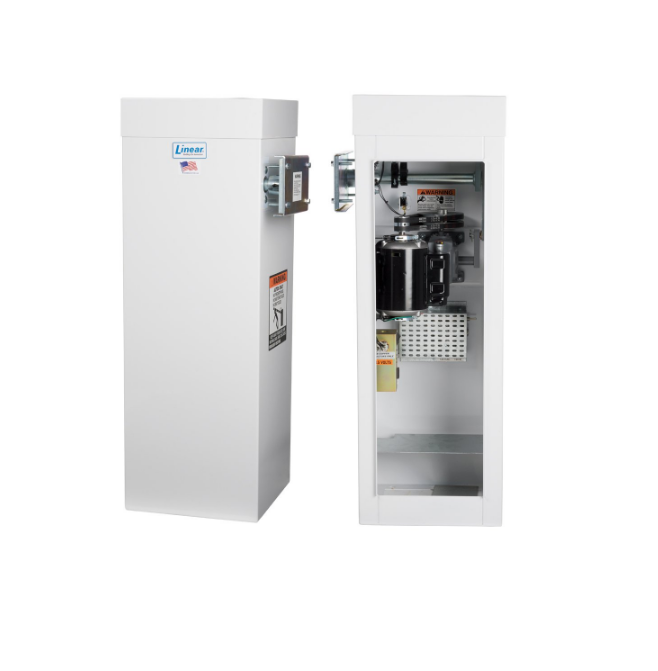

Linear OSCO BGU-10-311 Barrier Gate Operator

Linear OSCO BGU-10-311 Barrier Gate Operator

  • Manufacturer: Linear - OSCO
  • Item Number:

  Add to cart to see price



Comes with 10ft wood arm

  • Integral APeX Controller
  • Power on/off switch
  • Duplex receptacle (115 VAC units only)
  • On-board APeX Controller three-button control station
  • All accessory connections 24 VDC
  • Easily adjustable cam-operated limit switches
  • Lockable and removable front cover for easy access
  • Built-in maximum run timer and auto close timer
  • Master/second with simple 3-wire connection
  • Dual V-belt
  • Heavy-duty right angle gear reducer
  • Heavy-duty harmonic link with oil impregnated bronze bushings
  • Gate arm clamp with breaker bar
  • Motor has manually-resettable overload
  • Full system capable for access control and reversing devices
  • Weather resistant galvanized steel cabinet with powder coat finish
Warranty 5 yrs
Max. Duty Cycle Continuous
Factory Options White or yellow powder coat finish
Factory Options Optional thermostatically-controlled strip heater
Factory Options

Optional stainless steel power coated cabinet

Model HP Voltage & Phase Arm Size Application
BGU-10-311 1/3 115-1 10 ft Parking applications and provisions for single-button, detector, radio, and 3-button controls, accessory connections 24VDC
BGU-12-311 1/3 115-1 12 ft Parking applications and provisions for single-button, detector, radio, and 3-button controls, accessory connections 24VDC
BGU-14-311 1/3 115-1 14 ft Parking applications and provisions for single-button, detector, radio, and 3-button controls, accessory connections 24VDC
BGU-10-221 1/2 230-1 10 ft Parking applications and provisions for single-button, detector, radio, and 3-button controls, accessory connections 24VDC
BGU-12-221 1/2 230-1 12 ft Parking applications and provisions for single-button, detector, radio, and 3-button controls, accessory connections 24VDC
BGU-14-221 1/2 230-1 14 ft Parking applications and provisions for single-button, detector, radio, and 3-button controls, accessory connections 24VDC

Schematic Diagram(s)


Order Replacement Parts
