Description
The Linear PRO-SW4000XLS/PRO-SW4200XLS is a 12 VDC dual swing gate opener kit for a pair of residential gates, each leaf up to 20 ft and 1,000 lb. Both arms run from the PRO-SW4000XLS control box and its 12 VDC, 7 Ah battery, charged from 120 VAC or solar; 18 to 20 seconds to open.
12 VDC, 120 W motor with 16:1 planetary gear drive, 21 in arm stroke, soft start and soft stop. Control board sets push-to-open or pull-to-open, adjustable obstruction sensing, auto-close (3-120 seconds) and gate sequencing. Works on chain link, tube, panel, ornamental, wood and vinyl gates.
What's Included

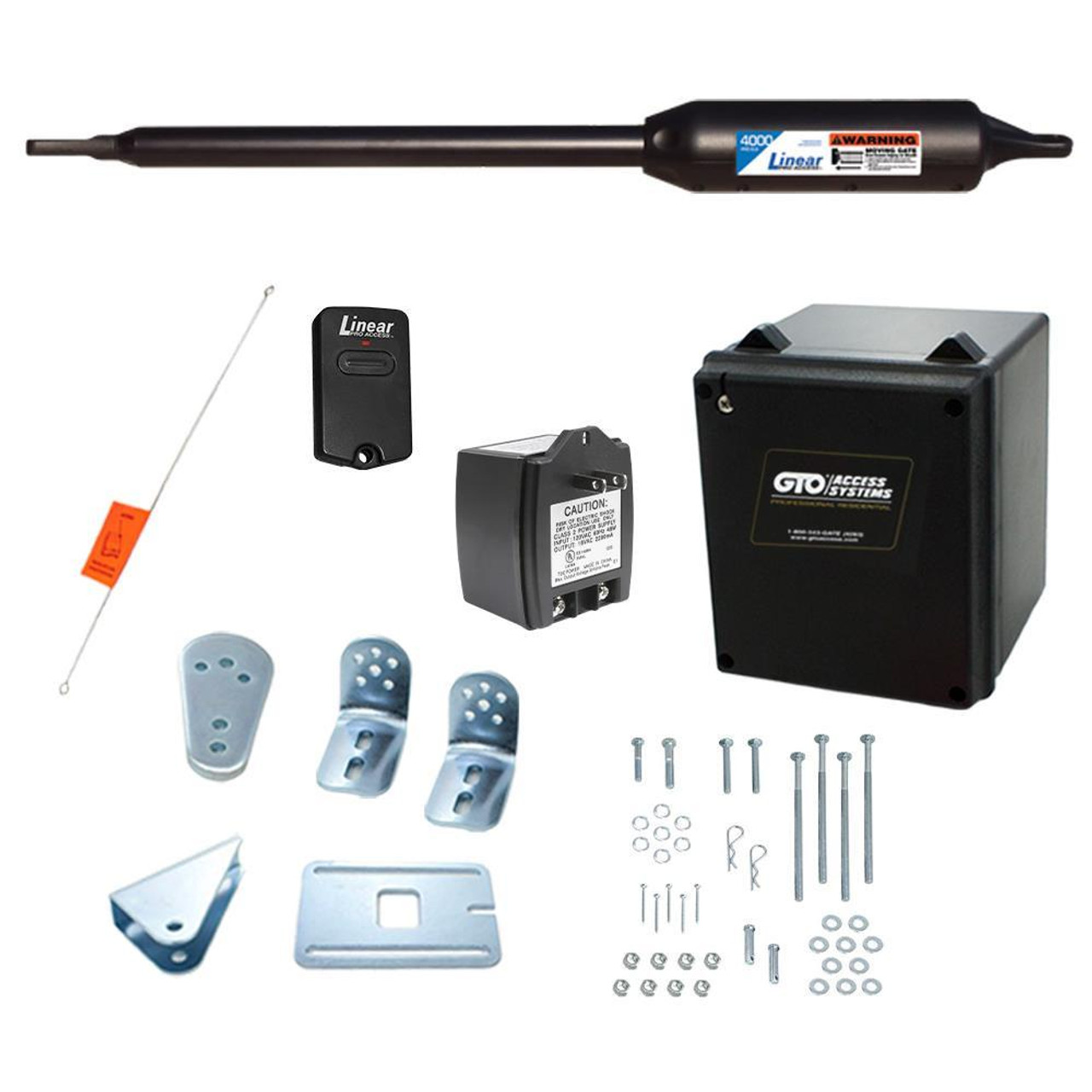

- PRO-SW4000XLS single gate kit: operator arm, control box, 12 VDC 7 Ah battery, AC transformer, mounting hardware and brackets

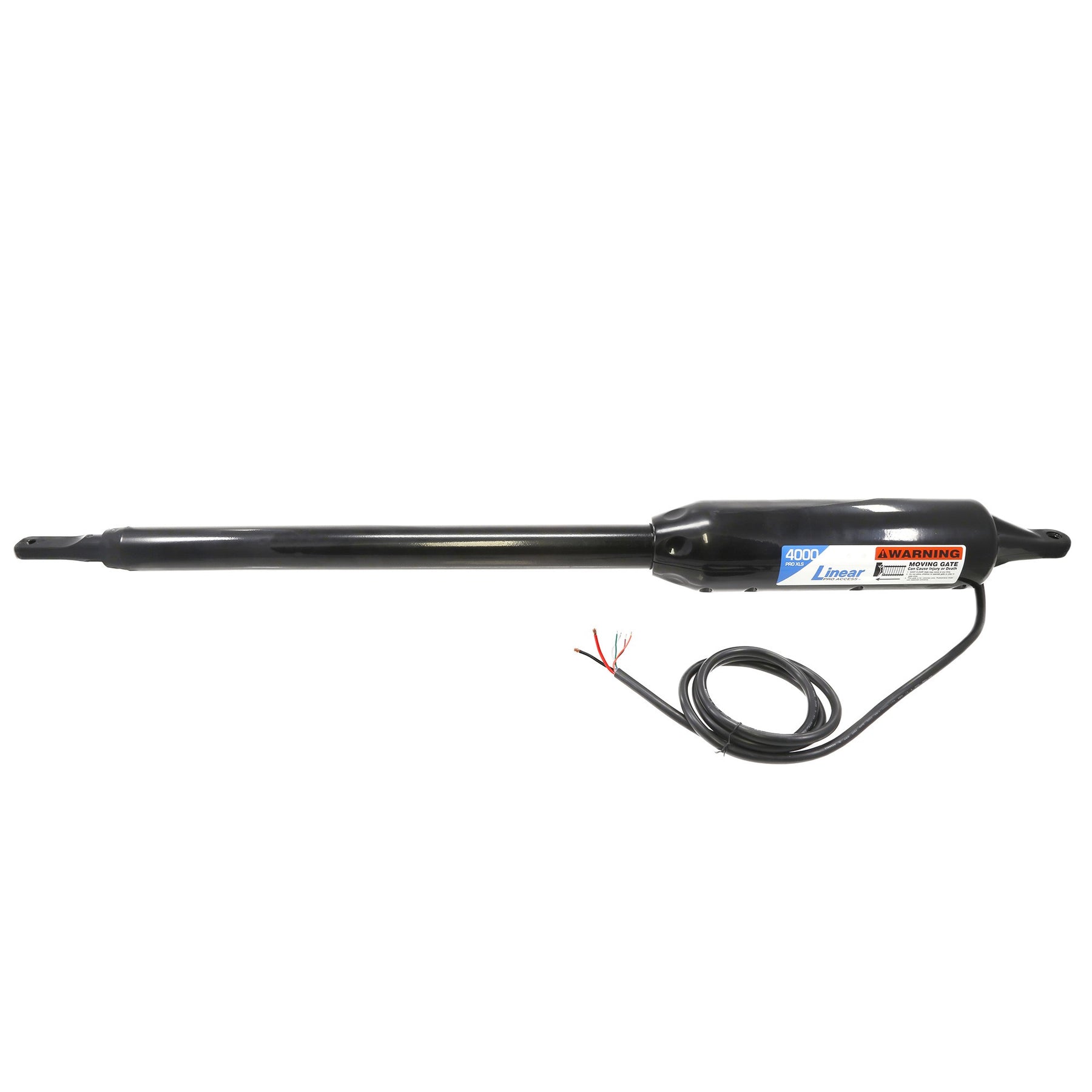

- PRO-SW4200XLS second operator arm with 50 ft cable, mounting hardware and brackets
Before You Order
- Plug-in power: 120 VAC outlet for the transformer, or a solar panel (sold separately).
- UL 325 Class I (residential).
- For a single gate, order the PRO-SW4000XLS single kit.
- 2-year manufacturer warranty.
- Solar Compatible
- Increased operating speed by 10%
- NEW rev-counter board with reed switch technology
- Reinstated heavy duty hardware for 1000lb-20 ft gates
- IMPROVED front mount and scraper seal design
- Features smooth start/soft stop operation
- Extended Cycle Life – Enhanced motor design makes this opener ideal for today’s single family homes or ranches.
- Works on all types of gates: chain link, tube, panel, ornamental, wood and vinyl
- Full systems capable, control board includes an adjustable obstruction sensing, gate sequencing and auto close settings
- U.L. rated for Class I. System certified to be in compliance with U.L. 325, latest revision.
ELECTRICAL
• 12 Volt DC / 7.0 amp hour, sealed, rechargeable battery (included). Battery charge is maintained by a
120V AC/60 Hz input, 18V AC, 40 VA. output, transformer rectified to 14V DC through control board.
• Powered by a reliable 12 Volt (120 Watt) DC motor, 16:1 planetary gear drive system.
• Charging regulated circuit on control board. “Sleep draw” is 15 mA; “active draw” is 3 to 7 amps.
MECHANICAL
• The control board can be programmed for pull-to-open or push-to-open
• Operating temp -5 F (-21C) to +160 F (71 C)
• Opening time: 18 to 20 seconds
• Range of arm stroke: up to 21'' (53 cm)
• Operator length: with arm fully retracted is 46.25'' (117 cm), mounting point to mounting point
• Operation, diagnostic and safety alarms
• Inherent obstruction sensing
• Soft start/soft stop for long mechanical life expectancy
• Auto close adjustable 3 to 120-second delay
