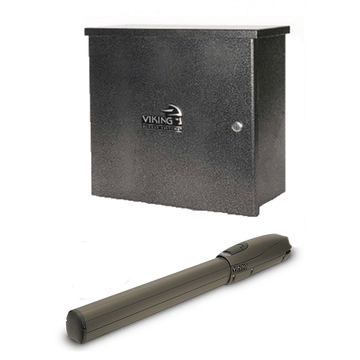

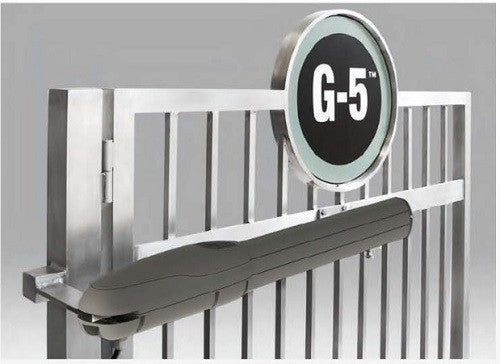

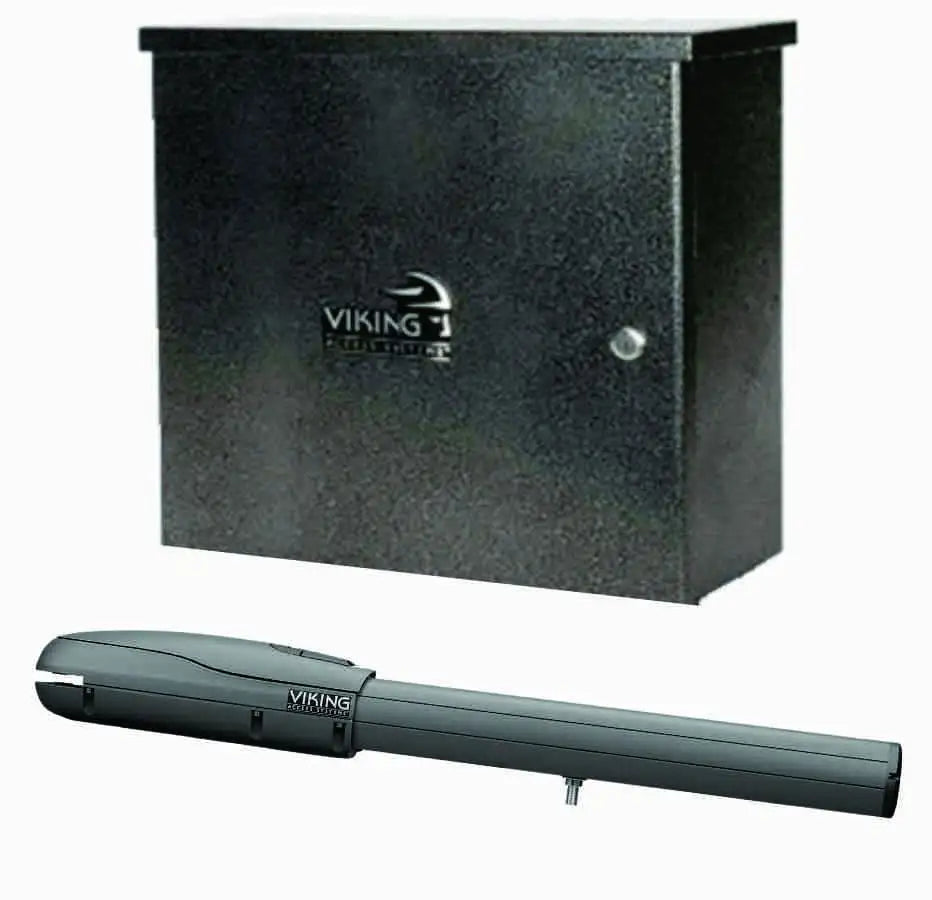

Viking G-5 Single Swing Gate Operator with Controller

  • Manufacturer: Viking
  • Item Number:

  • $2,050.00





Viking G-5 Single Swing Gate Operator with Control Box

The newly redesigned G-5 leads the industry in linear actuator swing gate operators. This new design allows for a maximum gate capacity of 2000 lbs., 135 degrees of travel and 100% duty cycle operation. Featuring a convenient electronic manual release and pre-wired for easy and quick installation. The G-5 is now powered by the VFlex control board, including speed control and diagnostic LCD display. This new design is solar efficient and ready to be powered with low voltage wiring, allowing versatility of installations. The G-5 offers an increased 3 year commercial or 4 year residential warranty and ETL and UL compliance.

- Operation - 24VDC with 1/2HP motor

- Main Power Source - 120/220VAC Single Phase

- Battery - 7 Amphr 12VDC x 2

- Max Gate Weight - 700lbs / 16'

- Max Operating Speed - 16 to 18 seconds per 90 degrees

- Battery Back-up - 400 cycles (600lbs / 12')

- Max Duty Cycle - 100% continuous cycle

- Operating Temperature - -4 degrees F to +158 degrees F

easily accessed key release

high efficiency power supply

easy access to limit switch

400 cycles in case of power failure

adjustable timer for automatic close

on-board lightening protection



Please call or email us for freight pricing, we can usually beat the price quoted online by using different regional freight carriers or shipping direct from the manufacturer. If you are getting multiple items we can usually get you an additional discount as well.

We have 15 years experience working on these products in the field. Please contact us if we can be of any assistance!
