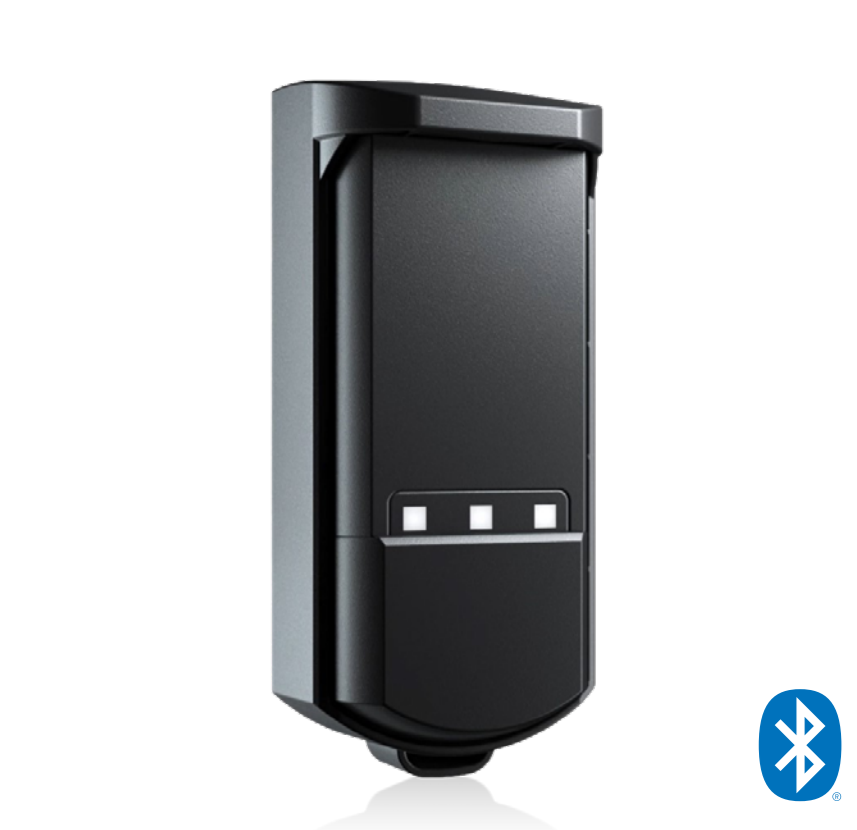

EVOLOOP is the alternative to traditional, in-ground induction loops used for vehicle detection in parking, access, and security applications.

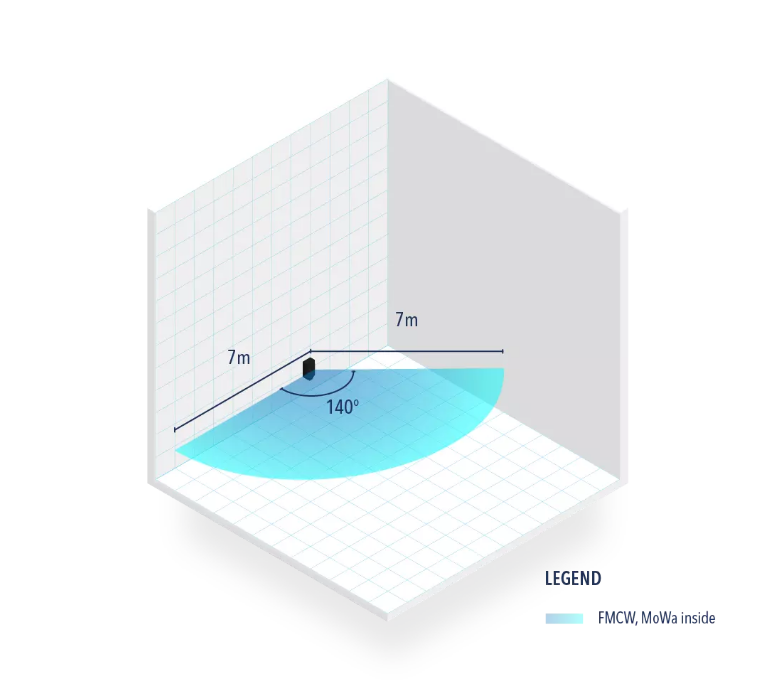

Designed with a 140° field of view, EVOLOOP allows for up to 3 virtual loops that provide precise detection for control of the barrier. Capable of triggering both the opening and closing of the barrier, this solution is suitable for parking systems, ticketing, biometric recognition, and license plate recognition cameras for access control systems.
EVOLOOP is proven to reduce the risk of vehicle and pedestrian collisions with the barrier arm in all types of environments and weather conditions.
Installation is quick and easy with simple mounting and wiring options along with an intuitive mobile app for programming.
Plug-and-go - No more dusty construction with noisy and heavy equipment. Enjoy an installer-friendly, clean, and time-saving experience with EVOLOOP. Simply mount the sensor, apply power, and launch a teach-in.
Connect and set - Start a teach-in via mobile app and set up 2 preconfigured loops in no time. You may also configure up to 3 virtual loops independently to fit the application’s needs. Choose the loop type, target type, and select a direction to filter out cross-traffic.
Versatile solution - EVOLOOP adapts to all applications, whether you need to set up a parking system or provide protection against collision with the barrier arm. It can also be installed on all types of barriers, including skirt or hinged support features.
Any weather, any time - EVOLOOP can be installed in any weather, year-round. The virtual loops are reliable and resistant in all environments and conditions, including challenging weather like fog, heavy rain, frost, or snow.
Technology - microwave 60GHz (FMCW)
Detection types - presence, protection
Mounting height - 12 – 27” (measured from the road, viewed
horizontally)
Max. detection field - up to 23’
Radar field of view - 140° opening angle and 40° in elevation
Antenna angle adjustment - -20 – 20° (without accessory)
Supply voltage - 12 – 30 VDC ±10% / 12 – 24 VAC ±10%
Power consumption - < 3 W
Outputs - 2 electronic relays (galvanic isolated - polarity free)
1 relay
Test input - 1 optocoupler (galvanic isolated - polarity free)
Dimensions - 2” × 6” × 2 ⅝” (form factor)
Material / Color - PC, ASA, aluminium ADC12 / black
Protection degree - IP65 (IEC 60529)
Temperature range - -13 – 131 °F (-25 – 55 °C)**
0 – 95% relative humidity, non-condensing
LED - 3 RGB, 1 white for BLE
Bluetooth operating bandwidth - 2402 – 2480 MHz
Bluetooth max. transmitted power - 12 dBm
Compliance - EN 12453 (type D)
