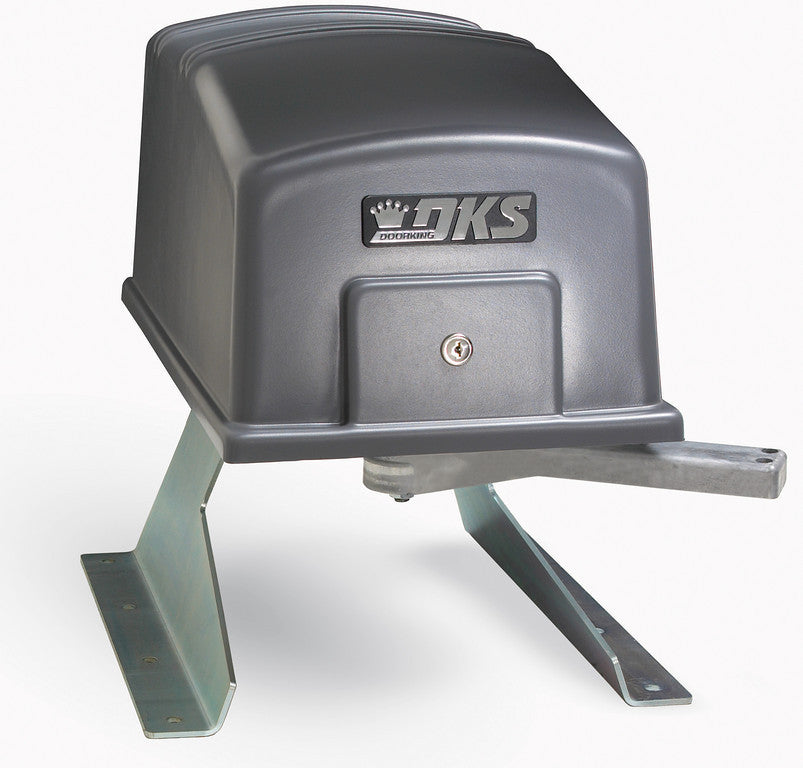

DKS - Doorking 6100 Primary Swing Gate Operator

DKS - Doorking 6100 Primary Swing Gate Operator

  • Manufacturer: Doorking
  • Item Number:



DKS - Doorking 6100 Swing Gate Operator

Requires Mounting Kit please select from drop down menu.



This is the primary unit, if you need a secondary 6100 please add 6100-081

The Model 6050 and 6100 operators are designed to operate vehicular swing gates in residential and commercial applications. These operators are designed so that they can be either pad or post mounted without any costly and time consuming field modifications. You need to specify which mounting method when ordering. The unique design of these operators allows the gate arm to be attached to the bottom rail of the gate. This eliminates the need for any brackets to be welded to the face of the gate and creates an aesthetically pleasing installation. The 6100 can be equipped with a factory installed DC Convenience Open option which will automatically open the gate in the event of a power outage.

13.25"W x 12"H x 23"D

* Self-adjusting, no maintenance magnetic limits.

* Overlap feature for dual swing gate operation.

* Designed with a built-in primary and secondary entrapment prevention system.

* Ports for plug-in loop detectors.

* Fail-safe release.

* Tamper detect circuit.

* Gate tracker reporting output.

* Programming switches.

* Built-in reset switch.

* Built-in power On/Off switch.


* Maximum gate width 14-feet.

* Maximum gate weight 500 pounds.

* Swings gate 90 degrees in approximately 10-seconds.

* 1/2 HP continuous-duty motor.

* 115 VAC, 5.4 Amps.

* Class I and Class II applications.

* Compliant with UL 325 and 991. ETL listed.

* Dimensions (operator only): 13.25"W x 12"H x 23"D

Please call or email us for freight pricing, we can usually beat the price quoted online by using different regional freight carriers or shipping direct from the manufacturer. If you are getting multiple items we can usually get you an additional discount as well.

We have 15 years experience working on these products in the field. Please contact us if we can be of any assistance!
