Liftmaster CSW24UL High-Traffic Commercial Swing Gate Operator

• Ideal for high-traffic, heavy-duty application.
• Provides battery back-up when the power is down.
• Rated For gates up to 18ft. or 1,600 lbs.
• Meets UL 325 Safety Standards.
• Includes LMRRUL Photo Eye
• Security+ 2.0

• Max Gate Length: 18 ft
• Max Gate Weight: 1,600 lb (1,600 lb at 8 ft; 1,200 lb at 12 ft; 800 lb at 16 ft; 600 lb at 18 ft)
• Motor: 24 VDC, continuous duty
• Input Power: 120 VAC or 240 VAC, single phase
• Duty Cycle: Continuous
• UL 325 Class: I, II, III, IV
• Battery Backup: Included: (2) 7Ah batteries
• Solar Capable: Yes, up to 60 W with LiftMaster solar components (sold separately)
• Drive: Gear-driven articulated arm
• Max Swing: 115°
• Mounting: Concrete pad; post mount optional
• Operating Temperature: -4°F to 140°F (-40°F with optional heater)
• Warranty: 5 years commercial / 7 years residential

• Operator Speed: 90° opening in 15 seconds
• Power: 115/230 VAC single phase
• Accessory Power: 24 VDC, 500 mA output; switched and unswitched power
• Operator Weight: 206 lb
• Warranty: 5 years commercial, 7 years residential
• Temperature: Without heater: -4 to 140°F (-20 to 60°C); with optional heater: -40 to 140°F (-40 to 60°C)
• UL Usage Classification: UL 325 and UL 991 listed, Class I, II, III and IV
• Motor: 24 VDC motor with soft start/stop
• Operator Duty Rating: Continuous duty
• Chassis/Frame: 1/4 in gold zinc-plated steel
• Gear Reduction: 900:1 worm gear reducer in synthetic oil bath
• Cover: High-density, UV-resistant polycarbonate 2-piece cover
• Recommended Capacities: Gates up to 18 ft in length or up to 1,600 lb
• Battery Backup: (2) 7 Ah: 146 cycles, 24 days standby; (2) 33 Ah: 876 cycles, 105 days standby
• Recommended Capacity by Length: 8 ft: 1,600 lb; 16 ft: 800 lb; 18 ft: 600 lb
• Cycle Testing: Tested to over 1 million cycles

Installation Manual CSW24UL

Wiring Diagram

Feature Chart

CSW24UL Specsheet

Data Sheet

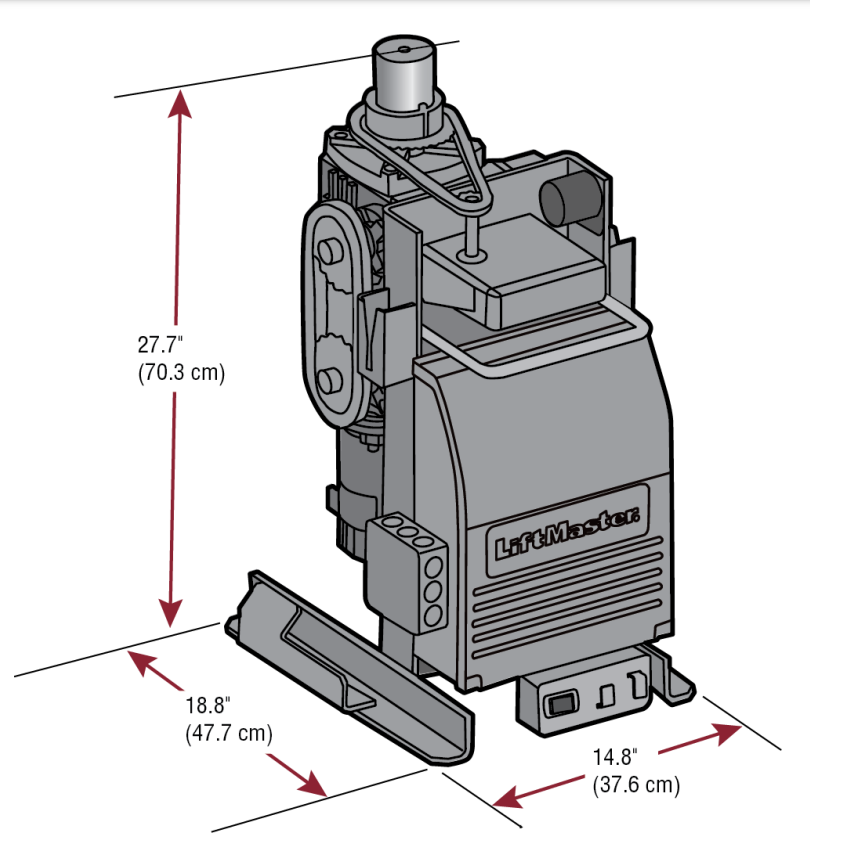

CSW24UL Product Drawing
