AES OPYN IP Video Intercom Manuals & Support

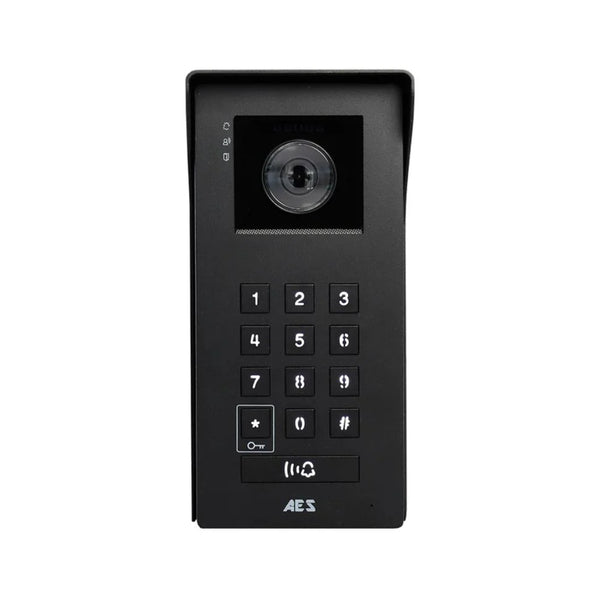

AES OPYN-IP-IBK-US

The AES OPYN-IP-IBK-US is an IP video intercom for gates and doors. Calls go to the OPYN app, so the owner can see and talk to visitors and open the gate from anywhere.

It connects by LAN with PoE or Wi-Fi and has two relays, 150 keypad codes and 150 QR codes with time or use limits, night vision, motion alerts and an SD card for recordings.

Identify your model

The OPYN-IP-IBK-US is the hooded keypad model in black powder coat. OPYN-4G models use a cellular SIM instead of a network connection.

Key specs

Connection LAN with 48 V PoE, or Wi-Fi 2.4/5 GHz (antenna sold separately)
Relays 2, N/O and N/C, 3 A at 30 VDC
Codes 150 keypad, 150 QR
Power 24 VDC 2 A or 48 V PoE
Camera 1080p, 130 degree horizontal
Storage SD card up to 128 GB (8 GB included)
Rating IP54
Operating temperature -4 to 131 °F

Manuals and documents

Installation Manual

Quick Start

Spec Sheet

Troubleshooting

Test the unit on site before you install it. Use only one power method, PoE or 24 VDC.

Unit resets or drops calls

  • Most problems come from thin power wire. Use 18 AWG up to 6 ft, 16 AWG up to 12 ft and 14 AWG up to 24 ft for 24 VDC power.
  • Do not power it over alarm cable or spare Cat5 pairs.

Poor video

  • The site needs at least 1.5 Mbps upload. Lower the stream quality if video drops frames.
  • Keep the LAN run under 328 ft.

Moisture or insects inside

  • Seal all cable entry holes to keep the IP54 rating.

Common questions

No. It calls the OPYN app over the internet by LAN or Wi-Fi. For sites with no internet, see the OPYN-4G cellular models.

At least 1.5 Mbps upload for a reliable video stream.

Yes. Keypad codes and QR codes can have a time window or a number of uses.

Mount any keypad or entry system at least 6 ft from a gate or gate operator, or where the user cannot reach the gate while using it.
