Aiphone IX-MV7 Master Station Manuals & Support

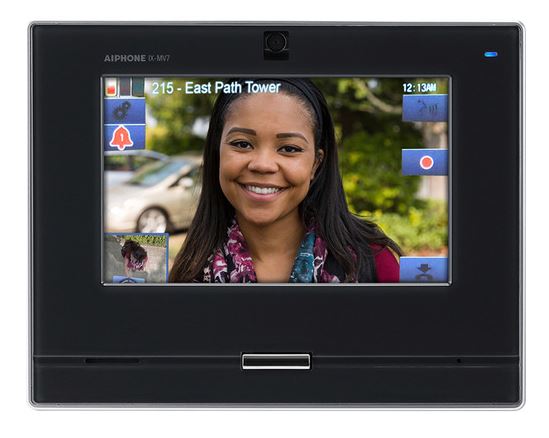

Aiphone IX-MV7-B

The Aiphone IX-MV7 is a 7 in touch screen IP master station for the IX Series. It is SIP compliant and PoE powered, and can be wall or desk mounted.

It has a 500 station address book, paging, scan monitoring and door release for the station in a call. It records to microSD and shows an ONVIF camera in picture-in-picture.

Identify your model

IX-MV7-B and IX-MV7-W are the hands-free black and white models. IX-MV7-HB and IX-MV7-HW add a handset. The spec sheet below is for the handset model; other specs match.

Key specs

Screen 7 in color touch screen
Address book 500 stations
Network SIP 2.0, ONVIF Profile S
Power PoE 802.3af
Contact outputs 2
Trigger inputs 4
Camera 720p with privacy shutter
Mounting Wall or desk stand (30, 45, 60 degrees)

Manuals and documents

Installation Manual

Programming Guide

Spec Sheet

Troubleshooting

Program IX masters and door stations with the IX Support Tool. Follow the Quick Start Programming Guide below.

Station does not power up

  • Check that the network switch supplies 802.3af PoE to the port.

Cannot call a door station

  • Check that the door station is in the master address book and on the same network settings.

Common questions

Yes. It releases the door tied to the station it is talking to.

The address book holds 500 stations, called from the directory or by number.

An 802.3af PoE network switch.
