DoorKing 1515 Digital Lock Manuals & Support

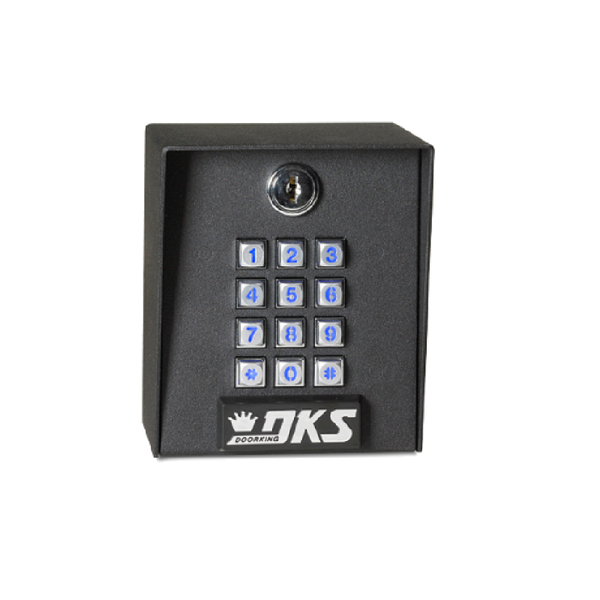

The DoorKing 1515 is a stand-alone digital keypad that stores up to 400 codes for momentary or hold-open entry. Its relay controls an electric strike, magnetic lock or gate operator.

It programs from the keypad or from an Android phone over NFC with the DKS Digital Lock Manager app. Low power mode draws under 1 mA for solar sites.

Identify your model

Models: 1515-080 surface mount, 1515-081 surface with stainless face and 1515-082 flush mount. The control board is 1515-009.

Key specs

Codes	Up to 400, 4 or 5 digits
Power	12 to 24 VAC or VDC, 16.5 VAC transformer supplied
Relay	One Form C
Programming	Keypad or Android NFC app
Lockout	3 to 9 wrong tries, 1 to 9 minutes
Low power	Under 1 mA

Manuals and documents

Installation Manual

1515 Stand Alone Digital Lock Installation and Programming
1515-065-F-8-16 · 2 pages View PDF: 1515 Stand Alone Digital Lock Installation and Programming (opens in a new tab)

Spec Sheet

1515-080 Spec Sheet View PDF: 1515-080 Spec Sheet (opens in a new tab)
1515-081 Spec Sheet View PDF: 1515-081 Spec Sheet (opens in a new tab)

Troubleshooting

Cannot program

Set the 4-digit master code at the keypad before any other programming. It cannot be recovered if lost.
App programming works on Android phones only.

Keypad locked out

Too many wrong codes trigger the lockout. Wait for the set time, 1 to 9 minutes.

Erratic operation

The keypad must be grounded.
Do not mount it on a moving gate. Vibration damages it over time.

Common questions

No. App programming uses NFC on Android phones only. Residents can use the DKS Smart Open app.

DoorKing says it cannot be recovered. Keep it on record.

Mount it at least 6 ft from a gate or gate operator, or where the user cannot reach the gate while using it. Card readers on DoorKing's instructions call for 10 ft.
