Linear AK-11

The Linear AK-11 is an exterior digital keyless entry keypad in a cast aluminum housing. It mounts on a pedestal or wall and runs on 12 to 24 VAC or VDC.

It holds up to 480 entry codes of 1 to 6 digits. Relay 1 is rated 5 A and relay 2 is rated 1 A, and two solid state outputs report forced entry, door ajar or lockout.

Identify your model

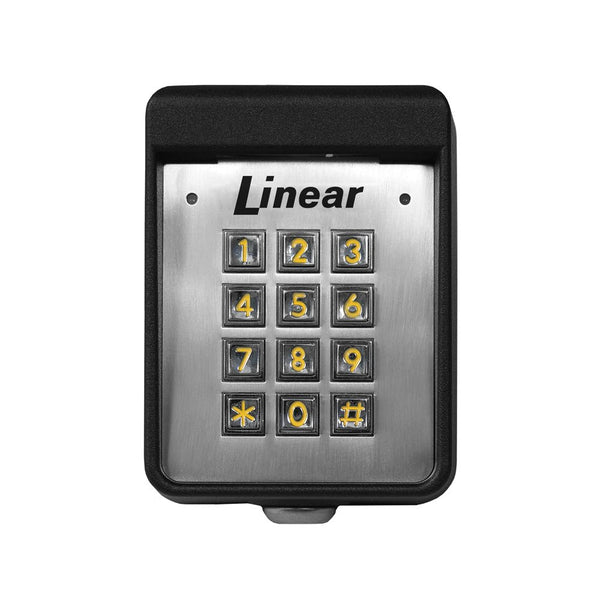

The AK-11 has die-cast keys with yellow graphics and two status LEDs. The left LED is red for power and green when access is granted. The right LED is yellow when the keypad is in lockout.

Key specs

Codes Up to 480, 1 to 6 digits
Power 12 to 24 VAC or VDC, 150 mA max
Relay 1 Form C, 5 A at 24 V
Relay 2 Form C, 1 A at 24 V
Outputs 3 and 4 Solid state, 100 mA at 24 VDC
Inputs Request to enter, door sense or inhibit
Size 4.00 x 5.50 x 3.00 in
Operating temperature -22 to 149 °F

Manuals and documents

Installation Manual

Troubleshooting

Enter programming with # 9 # and the 6-digit master code. The keypad leaves programming after two minutes with no key press.

Yellow LED on and codes refused

  • The keypad is in lockout from too many wrong codes. Wait for the lockout time to pass.

Lost master code

  • Open the case and remove jumper JP2 with power on. The keypad beeps and the master code returns to the factory code. Replace the jumper and set a new code.

Clear all codes

  • A master reset erases all codes and settings. Remove power, hold the two reset keys shown in the manual, then apply power until the red LED flashes.

Common questions

Up to 480 entry codes, each 1 to 6 digits long.

Remove jumper JP2 inside the case with power on to reset the master code to the factory default, then program a new one.

Yes. Codes and settings are kept in EEPROM memory without power.

Mount any keypad or entry system at least 6 ft from a gate or gate operator, or where the user cannot reach the gate while using it.
