1BXT Single Button Control Station (Non-Metallic)
1BXT Single Button Control Station (Non-Metallic)
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description

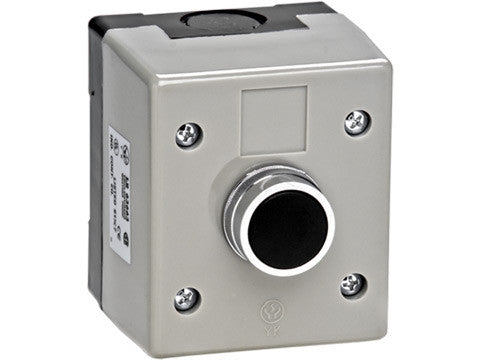

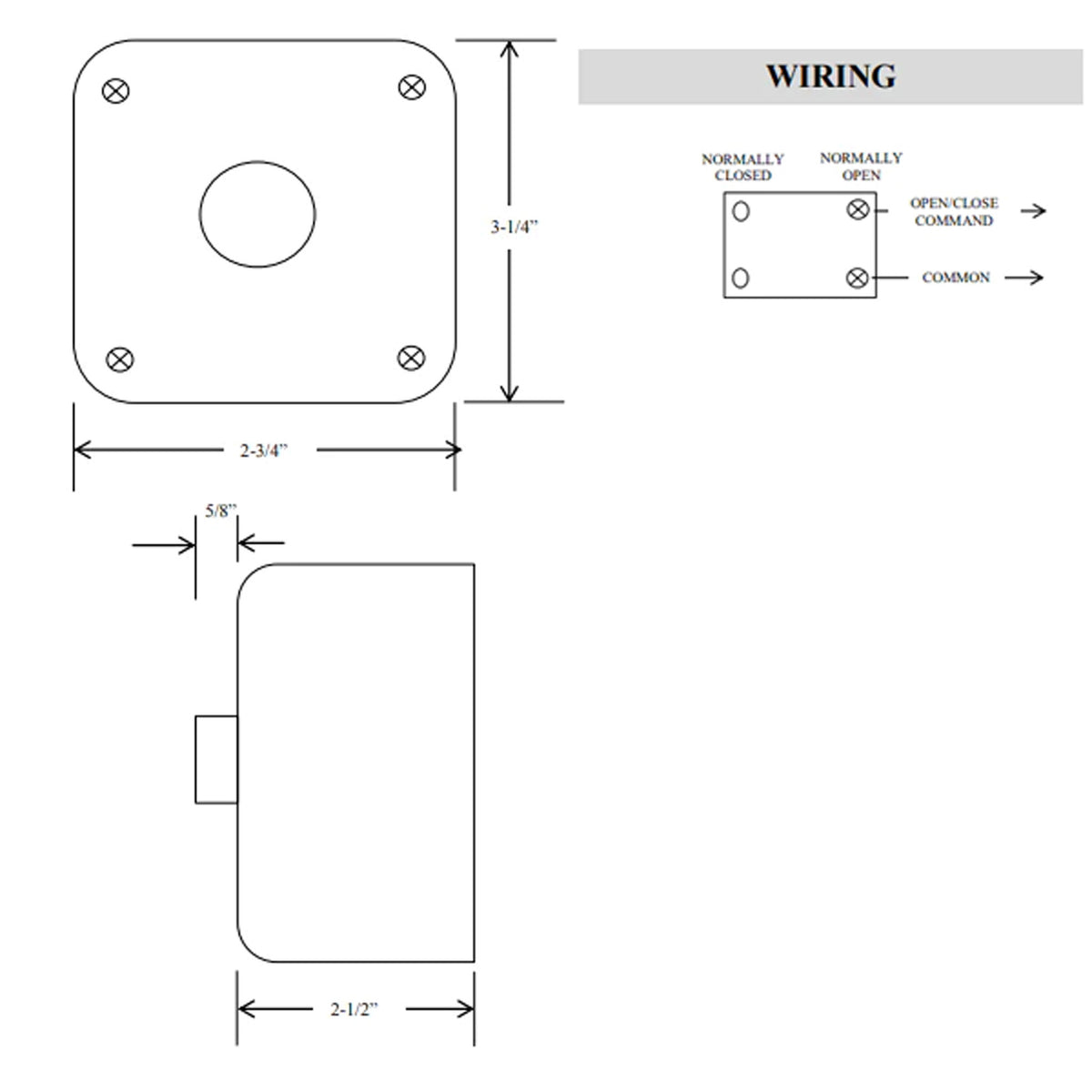

The 1BXT is a single push button control station in a non-metallic enclosure rated NEMA 3R, 4 and 12. It surface mounts outdoors. The button is momentary with double-pole contacts, giving one normally open and one normally closed set. The enclosure measures 3-1/4 in H x 2-3/4 in W x 2-1/2 in D.
Use it at exterior door, gate and barrier positions. Wire the N.O. set as a single-button open/close command or the N.C. set into a stop circuit, to match the operator input.
Features
- Single push button
- Momentary, double-pole contacts (N.O. and N.C.)
- Contacts rated 12 A at 600 VAC
- Non-metallic enclosure, NEMA 3R, 4 and 12
- Fully guarded button
- Surface mount, exterior
- UL listed and CSA approved
Before You Order
- Decide if you are wiring the N.O. contact (command input) or the N.C. contact (stop circuit).
- For a metal enclosure, see the 1BX. For a large mushroom-head button, see the 1MHC.
- For corrosive or washdown areas, step up to a NEMA 4X station.
- Need more buttons? The 2BXT is Open / Close and the 3BXT is Open / Close / Stop.
- Run 2 conductors for one contact set, or 4 to use both.
