Linear AM-KP Exterior Keypad

Linear AM-KP Exterior Keypad

  • Manufacturer: Linear
  • Item Number:

  Add to cart to see price



Linear AM-KP: Exterior Keypad

*****Please Call or Email for better Pricing*****
*****Please Call or Email for better Pricing*****

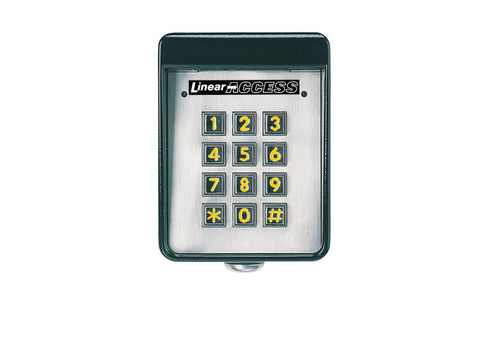

The Model AM-KP keypad is designed for use with Linear's access control systems. The keypad is housed in a rugged cast aluminum enclosure. The die-cast keys have bright, easy-to-read yellow graphics. Each key has a positive tactile click feel when pressed. An internal sounder signals when a key is pressed.

The keypad can be mounted to a pedestal or directly to a wall. A keylock secures the keypad to the mounting backplate.

An incandescent panel lamp lights the keypad for nighttime use. Red, green and yellow indicators show power, access and lockout conditions.

The AM-KP is normally powered from the control, or it can be powered locally from a 12 VDC power supply. Robust static and lightning protection circuits safeguard the keypad's electronics.

* For use outdoors or indoors

* 1-to-8-digit user selectable access codes

* Programmable downlighting

* Separate LEDs for "power/access granted" and "locked out" indication

* Pedestal or wall mounting

* Cast aluminum, environmentally protected housing

* Keylock secures keypad to mounting backplate

* 4" W x 5.5" H x 3" D

* Order number: ACP00520

PRODUCT INFO PAGES

Click Here for Instructions

We have 15 years experience working on these products in the field. Please contact us if we can be of any assistance!
