AM-RRR: Remote Radio Receiver

*****Please Call or Email for better Pricing*****
*****Please Call or Email for better Pricing*****

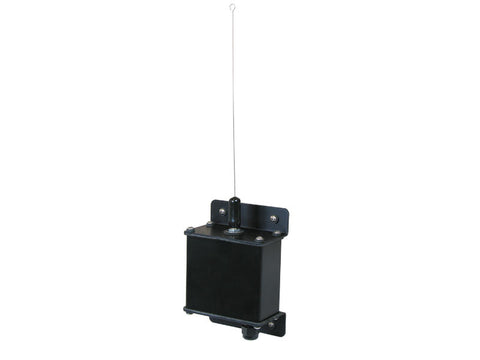

The Model AM-RRR Remote Radio Receiver is designed for use with Linear�s access control systems. The AM-RRR functions as a remote device that extends the radio range or supplies localized radio reception.

Three antenna types can be used with this receiver. The cabinet mounted type F connector is for connection to the antenna. The local whip antenna (supplied) screws directly on to the receiver�s connector. The directional (EXA-2000) and omni-directional (EXA-1000) remote antennas wire to the receiver�s antenna connector with type RG-59 cable.

An on-board RADIO RANGE knob allows adjustment of the receiver�s gain. It can be set to limit the maximum radio range that the receiver can achieve. Two indicators display the receivers performance and operation. The two color red/green STATUS indicator lights red when the receiver is getting DC power and turns green when access is granted to a transmitter. The RADIO indicator lights when the receiver detects a radio signal. It can be used for trouble shooting and verifying system performance. Receiver test points are provided for listening to the incoming signals.

The receiver is housed in a weather-resistant enclosure and can be mounted indoors or outdoors. Gaskets and a weather-tight wiring strain relief seal the unit from the elements.

* Provides extended range for radio-based access control system

* Up to 500 foot radius radio coverage

* Weather-resistant housing for outside or indoor mounting

* Optional directional remote or omnidirectional remote antennas

* Integral radio gain control for adjustment of radio range

* 2-color status LEDs indicates �power on� and �access granted�

* Radio LED detects transmission

* Power supplied by access controller

* Low voltage cable allows remote mounting without signal loss

* RF frequency: 318 MHz

* 4.25� W x 6.25� H x 2.5� D (without antenna)

* Order number: ACP00500
