Locinox FIFTYLOCK Mortise Lock w/ 1-3/16" Backset for Profiles 2" or More - ***LOCK ONLY***

Locinox ITEM: FIFTYLOCK

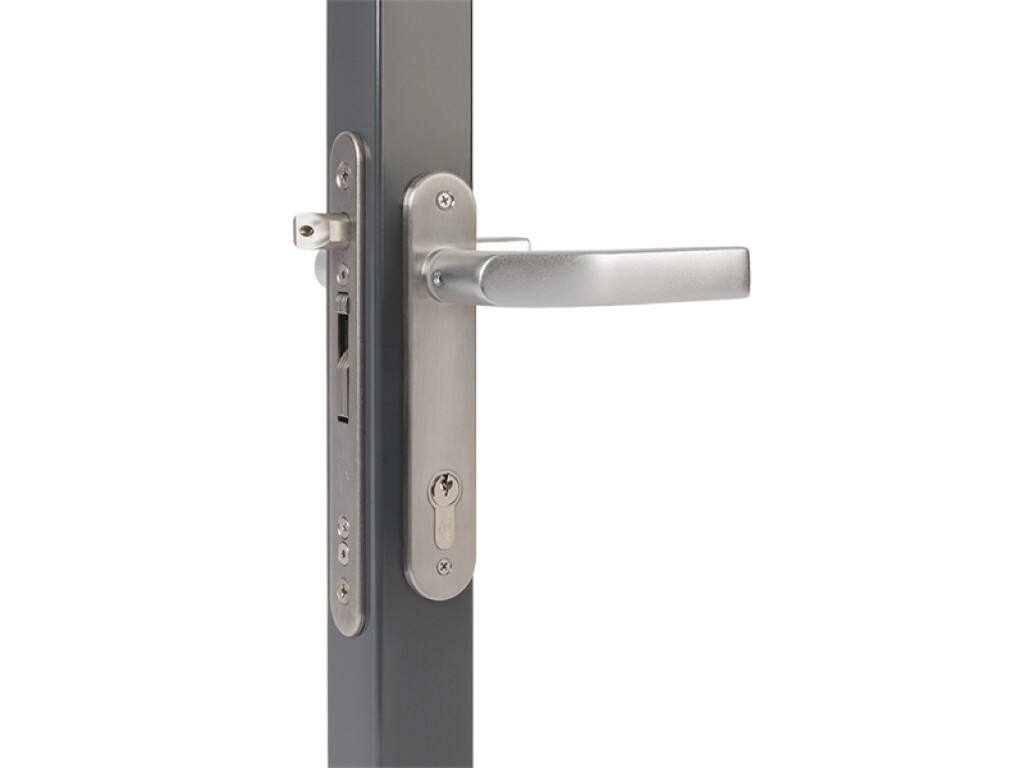

Locinox FIFTYLOCK stainless steel mortise gate lock
Locinox FIFTYLOCK stainless steel mortise gate lock - view 2

Locinox FIFTYLOCK Mortise Lock w/ 1-3/16" Backset for Profiles 2" or More - ***LOCK ONLY***

Locinox ITEM: FIFTYLOCK
Regular price $61.25
/
  • Current Trade Policy Costs Included In Price
  • In Cart Discounts Offered on Many Products
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

The Locinox FIFTYLOCK is a mortise (insert) gate lock with a 1-3/16 in backset for gate profiles 2 in deep or more. It fits metal, aluminum and vinyl (PVC) gates. The mechanism, hook, front plate and latch bolt are stainless steel.

The self-latching day bolt and the hook engage the keep so the gate leaves cannot be pulled apart. The day bolt is key-operated, switches left or right hand, and adjusts up to 3/8 in without removing the lock box. The hook throws 13/16 in. Cylinder to handle center distance is 3-5/8 in. It takes any Europrofile cylinder. The patented Click-It system mounts the lock without tapping threads, and a cover plate keeps dirt out of the mechanism.

Before You Order

  • Lock only. Handles, cylinder, keep and cover shield are sold separately.
  • Needs a gate profile at least 2 in deep.
  • Optional cover shields for the handle and cylinder holes come in aluminum, polyamide or stainless steel.
  • Series: FORTYLOCK (3/4 in backset, profiles 1-9/16 in and up), FIFTYLOCK (1-3/16 in backset, 2 in and up), SIXTYLOCK (1-9/16 in backset, 2-3/8 in and up).
  • Stainless steel lock mechanism with cover plate against dirt penetration
  • Stainless steel mechanism, hook, front plate and latch bolt
  • Backset 1-3/16", for mounting in profiles of 2" or more
  • Continuous adjustment of the daybolt up to 3/8" without dismounting the lock box
  • Key-operated self-latching bolt
  • Easy left or right changing of the self-latching daybolt
  • Throw of the hook: 13/16"
  • The center distance between the cylinder and the handle: 3-5/8"
  • Compatible with all Europrofile cylinders
  • Handles to be ordered separately
  • Optional: cover shield for handle & cylinder holes in aluminum, polyamide or stainless steel
  • Type: Insert (mortise) lock
  • Backset: 1 3/16 in (30 mm)
  • Gate Profile: 2 in or more (50 mm)
  • Installation: Click-it
  • Follower: Square 8 mm
  • Cylinder: Euro profile
  • Material: Stainless steel mechanism
  • Salt Spray Testing: 500 hours
  • Warranty: 3 years

Dimensions

  • Lock Case: 7⅛ in tall; faceplate 8⅝ in x 1⅛ in
  • Profile Cut-Outs: 3⅝ in, 2 in
  • Profile Width: Min. 2 in; min. ⅞ in depth
Locinox FIFTYLOCK Mortise Lock w/ 1-3/16" Backset for Profiles 2" or More - ***LOCK ONLY*** - Specifications

Mortise (insert) lock built into the frame of metal, aluminum and vinyl swing gates.

  • Metal, aluminum and vinyl (PVC) swing gates
  • Profiles 1-1/2 in deep or more (by model)
  • Gates where the lock sits inside the frame
  • Left- or right-hand swing gates
