Description
Cypress EXP-2000 is a Suprex expansion pair that adds one more reader and its door or gate hardware to a Suprex reader extender. The units link over a two-conductor RS-485 connection that is fully supervised and surge resistant. Power is 8-16 VDC.
Works with Wiegand readers such as HID and Farpointe and any Wiegand control panel. Use on gates, doors and elevators. Extruded aluminum housing, 4.45 x 3.08 x 2.0 in, with removable connectors.
What's Included
- Remote unit (door or gate)
- Central unit (panel)
Before You Order
- Requires a Suprex reader extender. Works with all Suprex models except the SPX-1300.
- One EXP-2000 pair per added reader, up to 8 readers total.
- Power: 8-16 VDC. Power supplies not included.
- Part Number: EXP-2000 (UPC 816684003233): expansion module set (pair), includes central and remote EXP
- Dimensions (single unit, with enclosure): 4.45 x 3.08 x 2.0 in
- Storage Temperature: 32 to 158°F (0 to 70°C)
- Operating Temperature: 32 to 158°F (0 to 70°C)
- Enclosure: Extruded aluminum, not sealed or weather rated
- Central and Remote Supply Voltage: 8 - 16 VDC, current 300 mA per unit
- Relay Max Switching: 220 VDC 30 W (resistive) 1 A / 250 VAC 37.5 VA 1 A
- Relay Running Spec with Load: 30 VDC 1 A (resistive) / 125 VAC 0.3 A (resistive), 1 x 10^5 operations @ 20°C
- Data Interfaces: Wiegand (default) and Wiegand (no filter): 24-248 bits, Data 0 and Data 1; strobed rising and strobed falling: 24-248 bits, clock and data; unsupervised F/2F: 24-248 bits, Data 1
- Compatible Suprex Models: Cypress SPX-7200, SPX-7500, SPX-7400 series and SPX-5600 series
- Non-Compatible Suprex Models: Cypress SPX-1300 (single-reader RS-485 Suprex)
- Additional Features: On-board relays to control door/gate; auxiliary I/O for LED signal and door/gate/panel status signal; status LED and supervision relay (default off) monitor wireless connection status
- Warranty: Lifetime

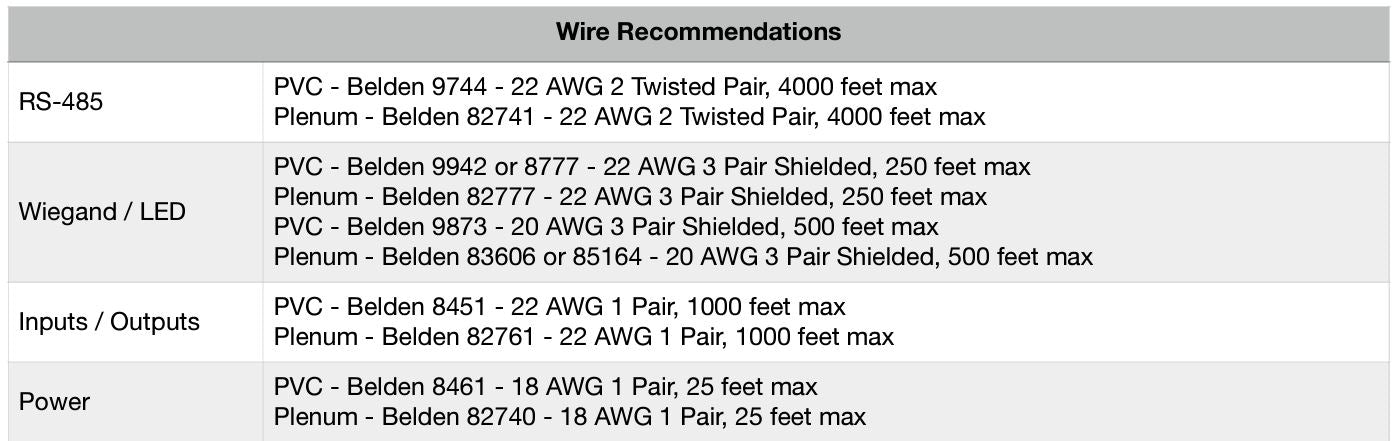

Wire Recommendations
- RS-485: PVC: Belden 9744, 22 AWG 2 twisted pair, 4,000 ft max; plenum: Belden 82741, 22 AWG 2 twisted pair, 4,000 ft max
- Wiegand / LED: PVC: Belden 9942 or 8777, 22 AWG 3 pair shielded, 250 ft max; plenum: Belden 82777, 22 AWG 3 pair shielded, 250 ft max; PVC: Belden 9873, 20 AWG 3 pair shielded, 500 ft max; plenum: Belden 83606 or 85164, 20 AWG 3 pair shielded, 500 ft max
- Inputs / Outputs: PVC: Belden 8451, 22 AWG 1 pair, 1,000 ft max; plenum: Belden 82761, 22 AWG 1 pair, 1,000 ft max
- Power: PVC: Belden 8461, 18 AWG 1 pair, 25 ft max; plenum: Belden 82740, 18 AWG 1 pair, 25 ft max
Reader extender pair that carries the reader and door or gate signals between the entry and a distant access control panel.
- Remote gates and long driveways
- Parking lot and garage entries
- Campus buildings and outbuildings
- Sites with existing network or fiber
- Barrier arm lanes far from the panel
