Description
Seco-Larm MVA-HV01Q is an ENFORCER HDMI-to-VGA and stereo audio converter. It shows HDMI sources up to 1920x1080 on VGA displays, with a 3.5 mm stereo audio output.
VGA output supports up to 1920x1080. Operation is plug and play.
Before You Order
- Audio leaves through a 3.5 mm stereo jack, separate from the VGA cable.
- For the reverse direction (VGA to HDMI), see the MVA-VH01Q.
- Converts HDMI® to VGA+Audio
- Supports input resolutions up to 1920×1080
- Supports up to 1920×1080 on VGA output
- Stereo audio output
- Plug and play operation
- Supported Resolutions: 1152 x 864, 1280 x 800, 1360 x 768, 1440 x 1050, 1440 x 900, 1680 x 1050, 1600 x 1200, 1920 x 1080
- Video Input Signal: 0.5 - 1.0Vp-p
- DDC Input Signal: 5.0Vp-p
- Vertical Frequency: 50/60 Hz
- Video Amplifier Bandwidth: 1.65 Gbps/165 MHz
- Power Supply: 5 VDC (USB)
- Operating Temperature: 32 to 158°F (0 to 70°C)
- Operating Humidity: 5% - 95% RH (no condensation)
- Dimensions: 2⅜ x 2⅛ x 13/16 in (60 x 54 x 20 mm)
- Weight: 1.5 oz (43 g)

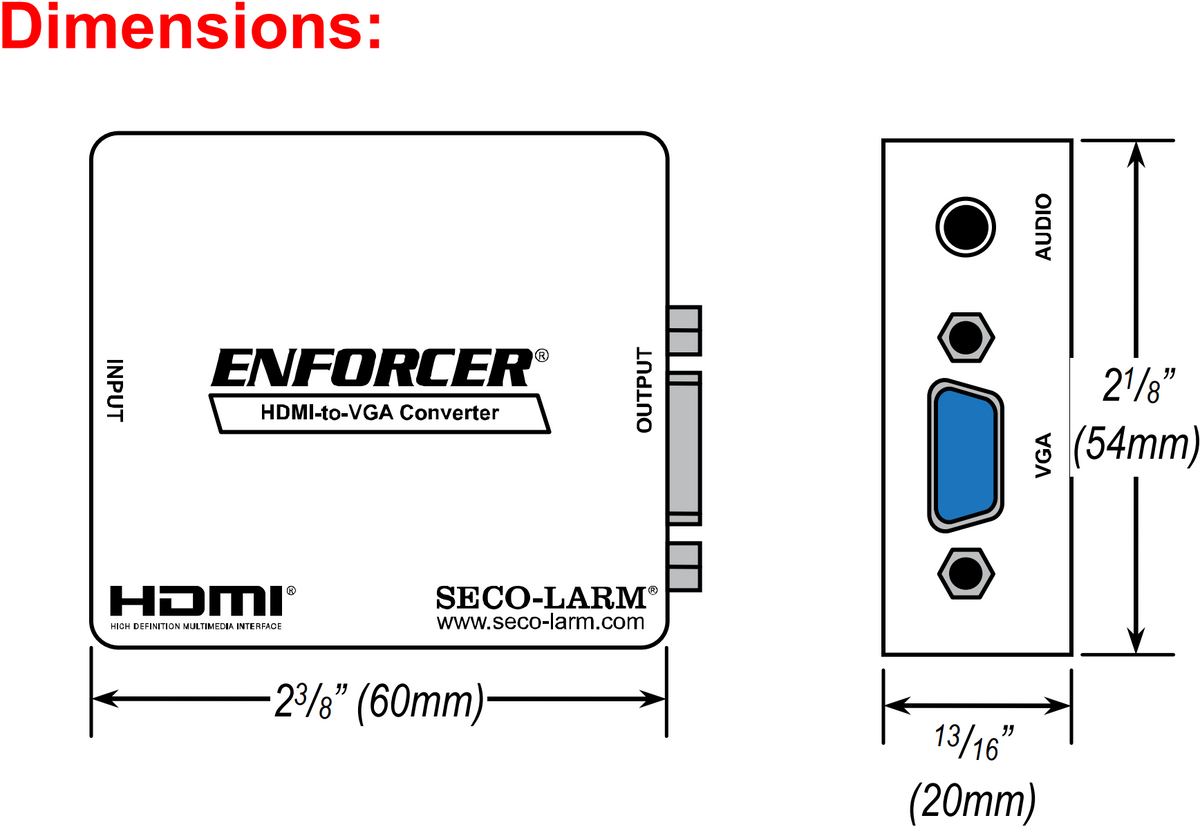

Dimensions
- Size: 2⅜ in (60 mm) x 2⅛ in (54 mm) x 13/16 in (20 mm)
- Ports: HDMI input; VGA output; USB 5 VDC power
Video converters connect security DVRs, cameras and monitors that use different video connections.
- Security DVR and monitor hookups
- CCTV monitor upgrades
- Guard station displays
- Analog to digital display retrofits
