Seco-Larm MVD-AH14-01Q HDMI Splitter-up to 4
Seco-Larm MVD-AH14-01Q HDMI Splitter-up to 4
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description
Seco-Larm MVD-AH14-01Q is an ENFORCER 4K HDMI splitter with 1 input and 4 outputs. It sends one HDMI source to up to 4 HDMI displays at the same time, at resolutions up to 4K@60Hz with HDR and 3D video.
Each HDMI output has a status LED. Two EDID management settings are provided. Splitters can be daisy-chained up to four levels for more outputs. HDCP 2.2 is supported. The unit measures 6-7/16 x 5/8 x 2-1/2 in. Operating temperature is 32 to 104 °F.
What's Included
- Splitter
- Power supply
- Manual
Before You Order
- Max HDMI cable length per side is 50 ft (15 m) with 24 AWG cable, less with thinner cable.
- Not for bypassing copy protection. Use must follow the content license.
- Other output counts: MVD-AH12-01Q (2 outputs), MVD-AH18-01Q (8 outputs).
- Transmits an HDMI source to up to four different HDMI displays
- Additional splitters can be daisy-chained for more outputs
- HDR Support
- Supports up to 4K@60Hz resolution and 3D video
- Individual status LEDs for each HDMI output
- Two EDID management settings
- One 5VDC power supply included
- Type: 4K HDMI® Splitter
- Maximum Single Link Range: 4K2K @ 60 Hz
- Deep Color: 24bit RBG/YCBCR 4:4:4
- Video Formats Supported: HDMI 2.0b, HDCP 2.2
- Audio Formats Supported: LPCM 7.1 CH Dolby TrueHD, DTS-HD Master Audio
- Output Video: HDMI®
- HDR Support: Yes
- Resolutions Supported: 4K/1080p/1080i/720p/576p/576i/480p/480i
- Video Amplifier Bandwidth: 600 MHz/18 Gbps
- Video Input Connector: 1x HDMI® Type A 19-pin female
- Max. Input Cable Length: 24AWG: 50 ft (15 m); 26AWG: 30 ft (10 m); 28AWG: 16 ft (5 m)
- Video Output Connector: 4x HDMI® Type A 19-pin female
- Max. Output Cable Length: 24AWG: 50 ft (15 m); 26AWG: 32 ft (10 m); 28AWG: 16 ft (5 m)
- Operating Voltage: 5 VDC
- Power Supply: 1 A @ 5 VDC (2.1 mm plug)
- ESD Protection: ±8 kV (air-gap discharge), ±4 kV (contact discharge)
- Current Draw: 650 mA @ 5 VDC
- Operating Temperature: 32 to 104°F (0 to 40°C)
- Operating Humidity: 20 - 90% RH (no condensation)
- Dimensions: 2½ x 6 7/16 x ⅝ in (63 x 163 x 16 mm)
- Weight: 9 oz (260 g)

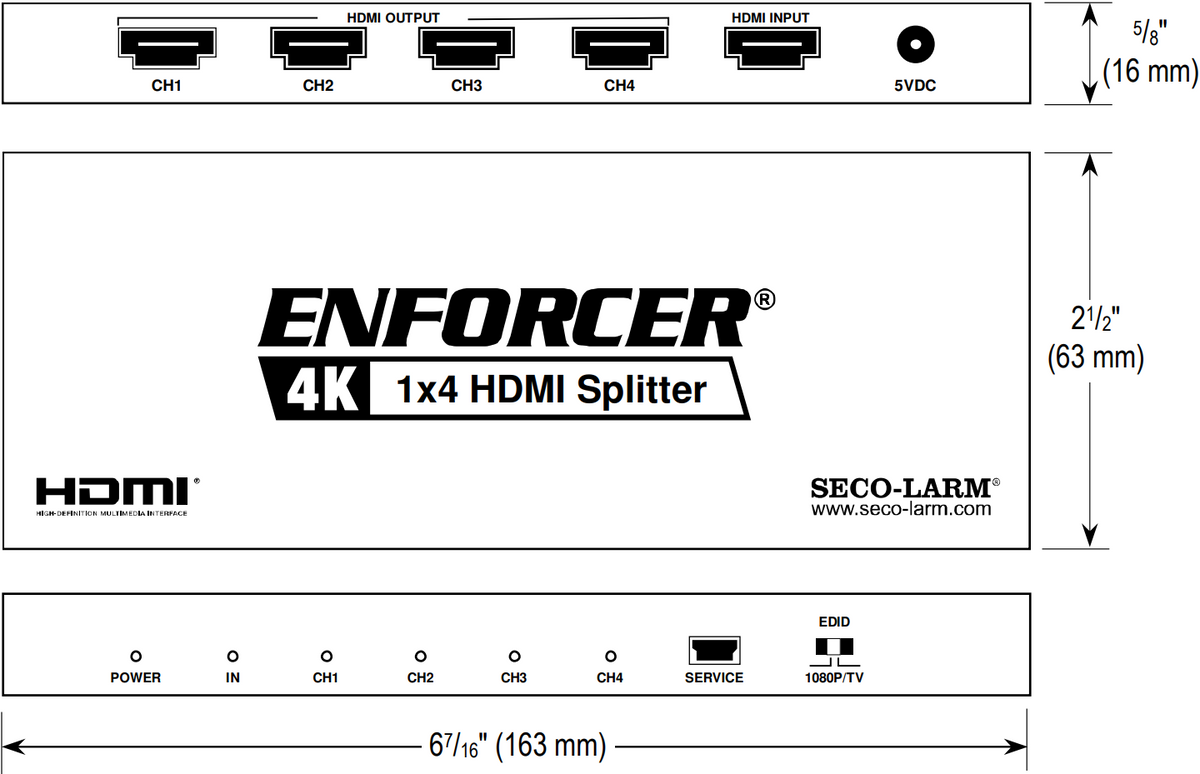

Dimensions
- Splitter: 6 7/16 in (163 mm) x 2½ in (63 mm) x ⅝ in (16 mm)
- Ports: 1 HDMI input, 4 HDMI outputs (CH1 - CH4), 5 VDC input
HDMI splitters, switches and extenders route video from DVRs and NVRs to monitors at guard stations and offices.
- Security DVR and NVR displays
- Guard station monitors
- Multi-monitor surveillance viewing
- Digital signage
- Conference rooms
