Description
Seco-Larm MVE-AH1T1-01YQ is an ENFORCER HDMI extender over two wires. An active transmitter and receiver send HDMI video and audio over any two copper wires, including Cat5e/6, telephone wire or coax, up to 984 ft (300 m) at 1080p.
It supports resolutions from 480i to 1080p. The transmitter has an HDMI loop output for a local display. Bi-directional RS-232 and IR pass-through allow remote control of the source and display. The kit is plug and play.
What's Included
- Transmitter and receiver
- Two 12 VDC power supplies
Before You Order
- Any two copper conductors can be used, so existing telephone or coax runs can be reused.
- Max distance is 984 ft (300 m) at 1080p.
- For a single Cat5e/6 run up to 164 ft, see the MVE-AH1E1-01NQ.
- Extends HDMI over two wires
- Supports resolutions from 480i to 1080p with zero signal loss
- Transmits up to 984ft (300m) at 1080p over two wires
- Plug and play operation – comes as a complete set
- HDMI Loop output for local HDMI display
- Two (2) 12VDC power supplies included
- Bi-directional RS-232 pass-through
- IR Pass-through for remote control extension and operation
- Input Video Signal: 3.3 V
- Input DDC Signal: 5Vp-p (TTL)
- Maximum Single Link Range: 1080p
- Deep Color: 24bit
- Video Format Supported: High-speed HDMI, HDCP 1.3
- Audio Formats Supported: PCM
- Output Video: HDMI
- Resolutions Supported: 1080p/1080i/720p/576p/576i/480p/480i
- Range: Up to 984 ft (300 m)
- Maximum Input Cable Length: 24AWG (15 m), 26AWG (10 m), 28AWG (5 m)
- Maximum Output Cable Length: 24AWG (15 m), 26AWG (10 m), 28AWG (5 m)
- Video Input Connector: HDMI Type A 19-pin female
- Video Output Connector: HDMI Type A 19-pin female
- IR Pass-through Frequency: 20 - 60 kHz
- Operating Voltage: 12 VDC
- RS-232 Pass-Through: Up to 115,200
- Power Supply: 2 A @ 12 VDC (2 Adapters) (2.1 mm plug)
- ESD Protection (Human Body Model): ±8 kV (Air-gap discharge), ±4 kV (contact discharge)
- Current Draw: Transmitter: 625 mA @ 12 VDC, Receiver: 580 mA @ 12 VDC
- Operating Temperature: 32 to 140°F (0 to 60°C)
- Dimensions: 5⅛ x 15/16 x 3 7/16 in (130 x 23 x 87 mm)
- Weight: 7.4 oz (210 g) (Each)

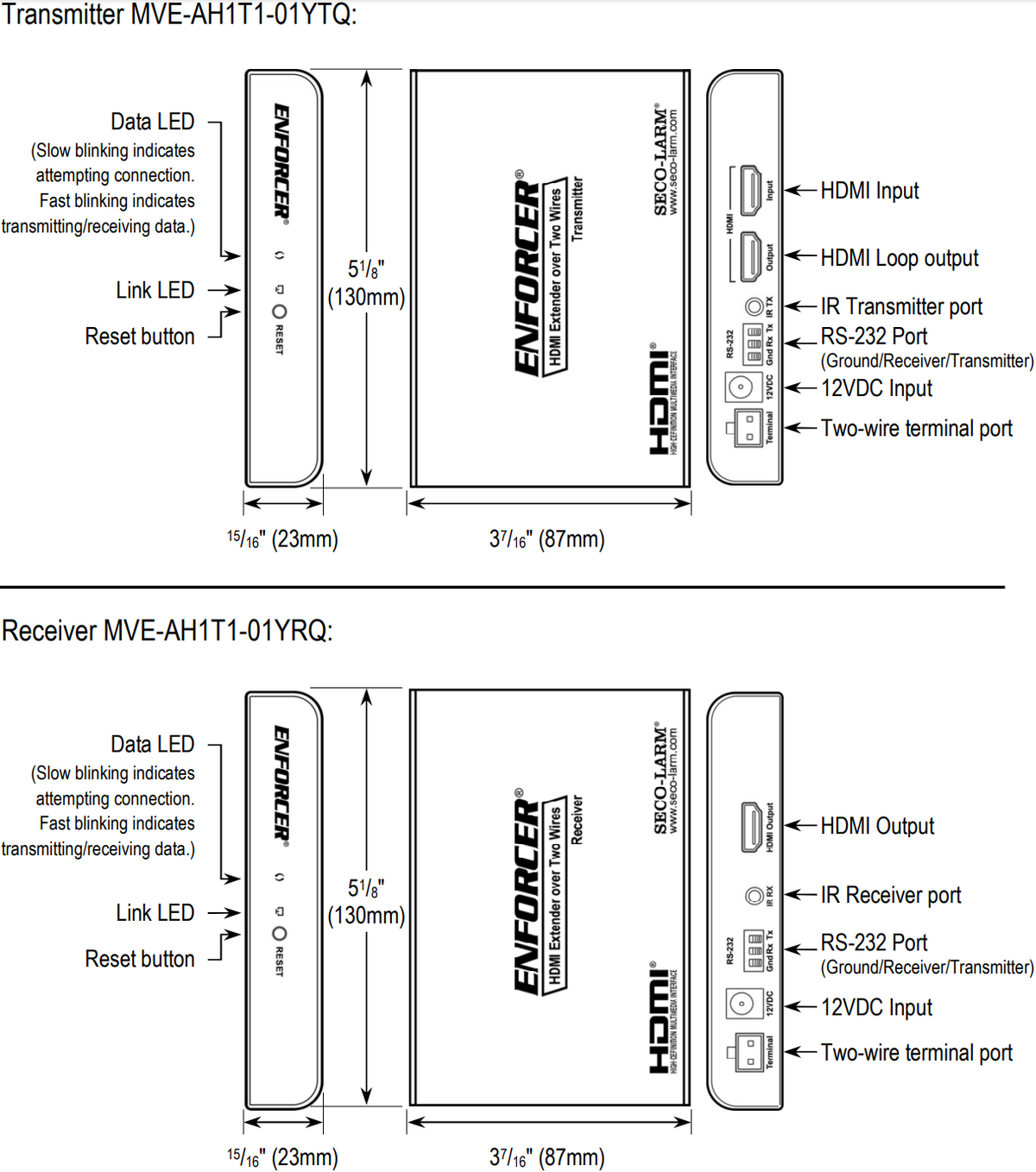

Overview
- Transmitter (MVE-AH1T1-01YTQ): HDMI input, HDMI loop output, IR transmitter port, RS-232 port (ground/receiver/transmitter), 12 VDC input, two-wire terminal port, data LED, link LED, reset button
- Receiver (MVE-AH1T1-01YRQ): HDMI output, IR receiver port, RS-232 port, 12 VDC input, two-wire terminal port, data LED, link LED, reset button
- Size (each): 5⅛ in (130 mm) x 3 7/16 in (87 mm) x 15/16 in (23 mm)
- Data LED: Slow blinking: attempting connection; fast blinking: transmitting/receiving data
HDMI splitters, switches and extenders route video from DVRs and NVRs to monitors at guard stations and offices.
- Security DVR and NVR displays
- Guard station monitors
- Multi-monitor surveillance viewing
- Digital signage
- Conference rooms
