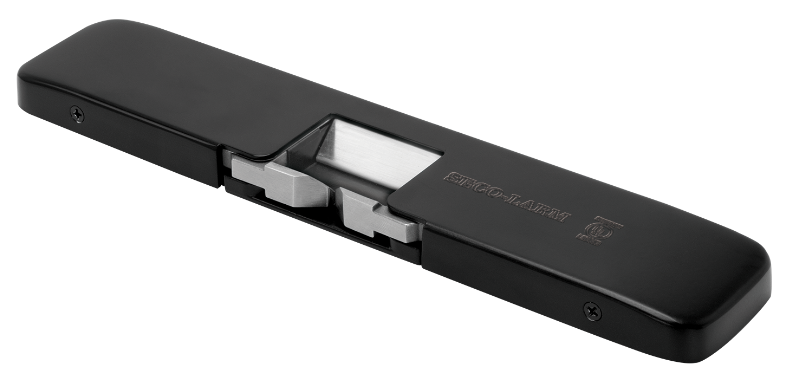

Seco-Larm SD-998C-BD3A 1/2″ Tamper-Resistant Electric Rim Strike – Black

Seco-Larm ITEM: SD-998C-BD3A
Seco-Larm SD-998C-BD3A 1/2″ Tamper-Resistant Electric Rim Strike – Black

Seco-Larm SD-998C-BD3A 1/2″ Tamper-Resistant Electric Rim Strike – Black

Seco-Larm ITEM: SD-998C-BD3A
/
  • Current Trade Policy Costs Included In Price
  • In Cart Discounts Offered on Many Products
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

The Seco-Larm Surface-Mount Electric Rim Strike designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (1/2″ throw). The strike features 12/24VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation.

  • UL 294 and 1034 Listed
  • 12/24VDC Operating voltage
  • Non-polarized connection
  • Horizontal adjustment
  • Accommodates up to 3/4″ Pullman latch
  • Reversible non-handed design fits either right-hand or left-handed doors
  • Surface-mount on metal or wood frames
  • For Indoor Use Only
  • Static strength – 1,500-lb (6673N)
  • Tested for 250,000 cycles (UL Tested)
  • Low current draw: 540mA@12VDC, 270mA@ 24VDC
  • Field-selectable for fail-safe or fail-secure operation
  • The SD-998C series is intended to be used with UL Listed Exit Hardware
  • The SD-998C series shall not impair the intended operation of an emergency unit
  • The SD-998C series shall not impair the operation of panic hardware mounted on the door
  • Operating Voltage: 12/24VDC
  • Current Draw: 540mA@12VDC, 270mA@24VDC
  • Latch Throw: 1/2″
  • Static Strength: 1,500-lb (6673N)
  • Dynamic strength: 70ft-lb (95J)
  • Endurance: 250,000 cycles (UL Tested), Level IV
  • Destructive attack: Level I
  • Line security: Level I
  • Standby power: Level I
  • Operating Temperature: 14°~120°F (-10°~49°C)
  • Operating Humidity: 0~85%

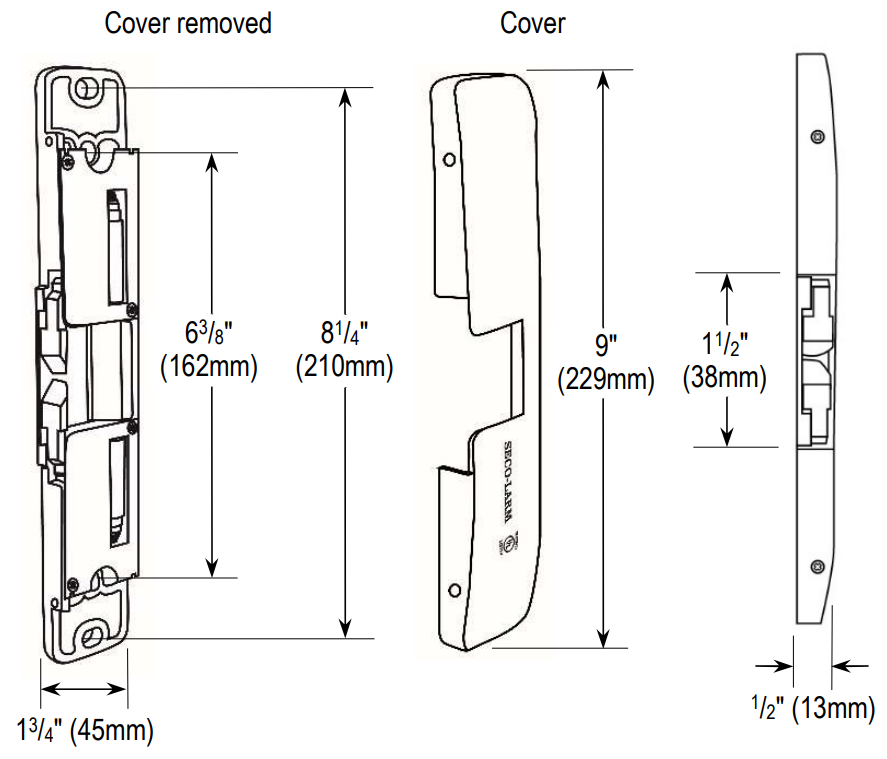

  • Dimensions: 9″ x 1-3/4″ x 1/2″ (229x45x13 mm)
  • Works with standard rim-type exit devices including, Seco-Larm SD-962xR-36A and SD-962xR-36G
  • Seco-Larm SD-998SMB Surface Mount Bracket
