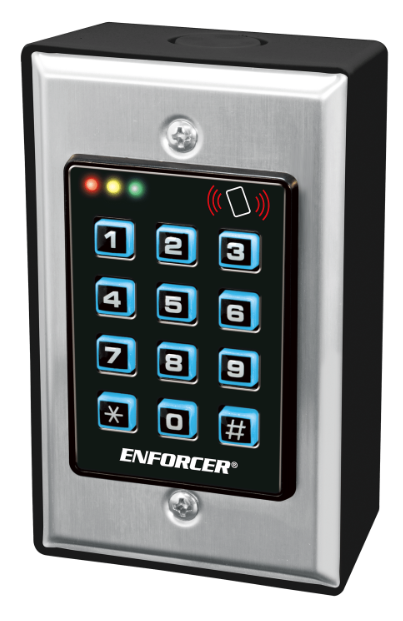

Seco-Larm SK-1131-SPQ Indoor Illuminated Access Control Keypad with Proximity Reader

• Built-in proximity card reader
• 12~24VAC/VDC Auto-adjusting operation
• Up to 1,000 possible user codes/cards for output 1, 100 for output 2, and 100 for output 3
• Up to 50 possible visitor codes for one-time or limited-time use (1~99 hours)
• Up to 50 duress codes for output 1, 10 for output 2, and 10 for output 3
• Output 1: Form C relay, 1A@30VDC max. / output 2: Form C relay, 1A@30VDC max. / output 3: transistor ground, 100mA@24VDC
• Outputs 1, 2, and 3 can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Tamper output N.C. Dry contact, 50mA@24VDC max.
• All features are programmed directly from the keypad; no need for an external programmer
• EEPROM Memory protects programmed information in case of power loss
• Duress code triggers a silent alarm if a user is forced to open the door under duress
• Egress input lets users exit the premises without keying in the code
• Keypad illuminates when a button is pressed, programmable for FULL or AUTO in standby
• Mounts to a standard single-gang back box (surface-mount back box included)
• Keypad active or alarm output selectable via jumper
• Interlocking input for connecting to a second keypad
• Door sensor input for anti-tailgating
• Data I/O terminal for split-series setup providing added security
• Expansion port for future optional features

• Operating Voltage: 12~24 VAC/VDC
• Proximity Reader Frequency: 125kHz (EM125)
• Proximity Reader Sensing Distance: 1-1/2” (38mm)
• Operating Humidity: 5~95% Non-condensing
• Operating Temperature: -4°~158°F (-20°~70° C)

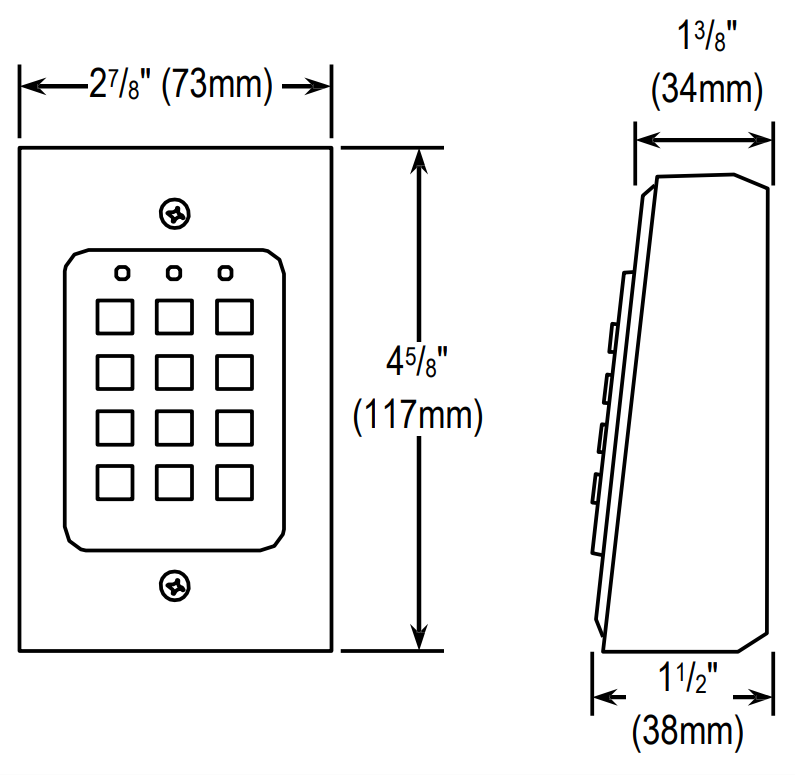

• Dimensions (including back box): 4-5/8″ x 2-7/8″ x 1-15/16″ (117x73x49 mm)
• Weight: 6-oz (170g)

Current Draw

• Standby: 66mA@12VDC
• Keypress: 93mA@12VDC
• Output 1 active: 99mA@12VDC
• Output 1 & 2 active: 126mA@12VDC
• Output 1, 2 & 3 active: 127mA@12VDC
• Total max. current draw: 160mA@12VDC

Outputs

• #1 Form C: 1A@30VDC
• #2 Form C: 1A@30VDC
• #3 Transistor ground: 100mA@24VDC
• K or A: 100mA@24VDC
• Duress: 100mA@24VDC
• Interlock: 100ma@24VDC
• Tamper:50mA@24VDC

Inputs

• Egress: N.O. Ground
• Door sensor: N.C. Ground
• Door inhibit: N.O. Ground
