Seco-Larm SM-206Q/W 1/4″ Concealed-Mount Magnetic Contact – White, 1″ (25mm) Gap, Closed loop, UL Listed

Seco-Larm ITEM: SM-206Q/W
Seco-Larm SM-206Q/W 1/4 in concealed-mount magnetic contact, white

Seco-Larm SM-206Q/W 1/4″ Concealed-Mount Magnetic Contact – White, 1″ (25mm) Gap, Closed loop, UL Listed

Seco-Larm ITEM: SM-206Q/W
Regular price $3.94
/
  • Current Trade Policy Costs Included In Price
  • In Cart Discounts Offered on Many Products
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

The Seco-Larm SM-206Q/W is a UL Listed 1/4 in press-fit concealed-mount magnetic contact for closed-loop circuits. It has a 1 in (25 mm) operating gap, pre-wired 15 in (38 cm) #22 leads and a white case.

The switch and magnet press into drilled holes in the frame and door. An epoxy compound inside the ABS case protects the reed switch. The SPST reed switch has deactivated rhodium on gold under-plating, rated 0.1 A at 100 VDC or 1.0 A at 10 VDC (10 W max), and 50 million cycles. Switch is 1-7/32 x 1/4 in, magnet is 1-1/4 x 1/4 in (Alnico 5). Operating range is -15 to 160 °F. Lifetime limited warranty.

Before You Order

  • Sold individually (each).
  • Wires to a closed-loop zone on an alarm panel or a door-sensor input on an access controller.
  • Needs 1/4 in holes in the frame and in the door or sash, lined up face to face.
  • Also offered as SM-206Q/BR (brown). For a 3/8 in press-fit, see the SM-207Q series.
  • Used for protecting sliding doors and windows where space is limited
  • Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
  • Unique glue/epoxy compound protects reed switch
  • 1/4″, Press-fit mount
  • 15″, (38cm) wire leads
  • 1″ (25mm) Gap
  • Lifetime limited warranty
  • White case
  • Loop Type: Closed loop
  • Electrical Configuration: N/O
  • Operation Gap: 1″, (25mm)
  • Color: White
  • Leads: Pre-wired 15″, #22
  • Material – Case: High-impact ABS plastic / epoxy compound
  • Contacts: Deactivated rhodium on gold under-plating
  • Contact Rating: 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
  • Operating Temperature: -15º~+160ºF (-25º~70ºC)
  • Switch Cycles: 50 Million (0.1mA@5VDC)

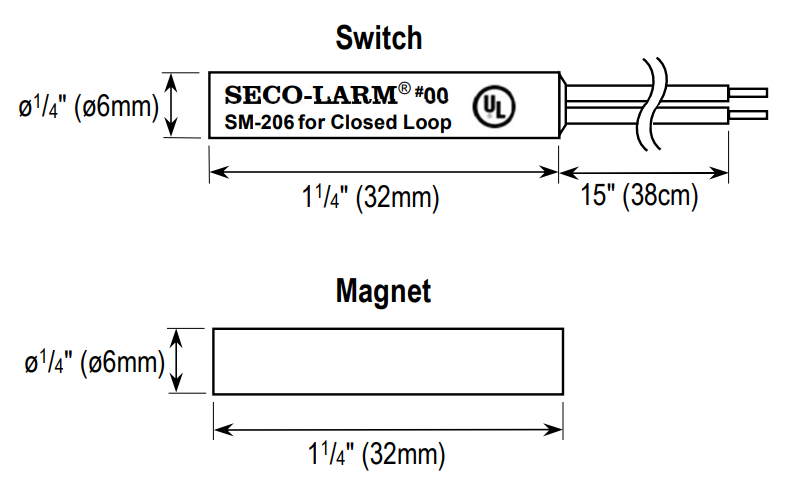

  • Switch Dimensions: 1-7/32″ x 1/4″ (31x6.35 mm)
  • Magnet Dimensions: 1-1/4″ x 1/4″ (32 x 6.35 mm)
  • Magnet Type: Alnico 5
Seco-Larm SM-206Q/W 1/4″ Concealed-Mount Magnetic Contact – White, 1″ (25mm) Gap, Closed loop, UL Listed - Specifications

Hidden door and window monitoring with the switch and magnet set into drilled holes.

  • Wood doors and frames
  • Sliding doors and windows
  • Residential doors and windows
  • Commercial interior doors
  • Alarm panel zone inputs
