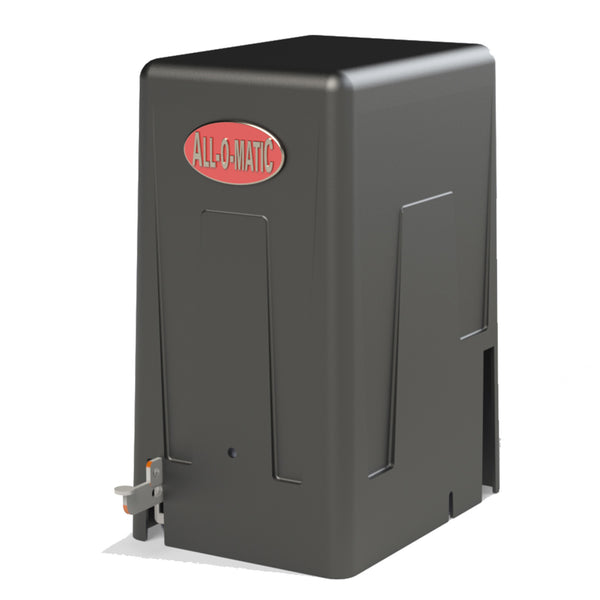

All-O-Matic SL-100 Manuals & Support
Identify your model
The model and serial number are on the label inside the control box. DC PRO units have the ALL-BLDC PRO board with an LCD display. Earlier DC units have an LED-only board; use the earlier board manual below for those.
FP in the model means foot pedal release. The SL-100 AC without FP has a 10:1 gearbox and pushes open with the power off.
Key specs
| Max gate | DC PRO: 2,000 lb / 50 ft; AC: 1,000 lb / 37 ft (40 ft FP) |
|---|---|
| Motor | DC PRO: 24 VDC brushless 1/2 HP; AC: 1/2 HP |
| Speed | DC PRO: 6 to 12 in per second; AC: 12 in per second |
| Duty cycle | Continuous |
| Power | DC PRO: 115 or 230 VAC or solar; AC: 115 VAC single phase |
| Gearbox | 20:1 with internal disconnect (FP); 10:1 (AC standard) |
| Chain | #41 (20 ft included) |
| Battery backup | DC PRO: two 12 V, 7 Ah; about 80 cycles on a 1,000 lb gate |
| Breaker | 20 A dedicated |
| Temperature range | -40 to 160 °F |
Manuals and documents
Installation Manual
-
DC PRO Slide Operator Manual
View PDF: DC PRO Slide Operator Manual (opens in a new tab) -
DC Slide Operator Manual (Earlier Board)
View PDF: DC Slide Operator Manual (Earlier Board) (opens in a new tab) -
AC Slide Operator Manual
View PDF: AC Slide Operator Manual (opens in a new tab)
Parts List
-
SL-100FP DC Blowout Drawing
View PDF: SL-100FP DC Blowout Drawing (opens in a new tab) -
SL-100FP AC Blowout Drawing
View PDF: SL-100FP AC Blowout Drawing (opens in a new tab) -
SL-100 AC Blowout Drawing
View PDF: SL-100 AC Blowout Drawing (opens in a new tab)
Spec Sheet
-
SL-100FP DC PRO Spec Sheet
View PDF: SL-100FP DC PRO Spec Sheet (opens in a new tab) -
All-O-Matic Slide Operators Architectural Specification
View PDF: All-O-Matic Slide Operators Architectural Specification (opens in a new tab)
Brochure
-
SL-100 AC Brochure
View PDF: SL-100 AC Brochure (opens in a new tab)
Other documents
-
100-PDT Pad Mount Drawing
View PDF: 100-PDT Pad Mount Drawing (opens in a new tab)
Troubleshooting
Common questions
UL 325 (2018) boards need monitored entrapment devices for the open and close directions. If a device is missing or faulty, the MON_FAULT LED lights and the gate runs only on constant pressure. Wire monitored photo eyes or edges, then press RESET.
On FP models, press down the foot pedal release. On the standard AC model, turn off the power and push the gate open by hand.
It uses two 12 V, 7 Ah batteries in the control box. Check battery voltage on the LCD, and replace both batteries together when they no longer hold a charge.
The operator shuts down after two obstructions before full close. Clear the obstruction, then press the RESET button next to the radio connector.
