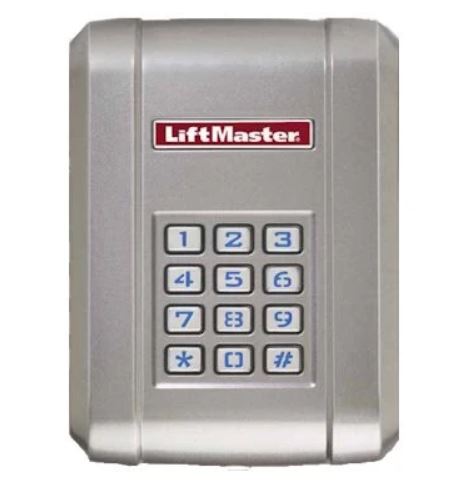

LiftMaster KPW250 and KPW5 Wireless Keypads Manuals & Support

The LiftMaster KPW250 and KPW5 are battery powered wireless keypads for gate and commercial door operators. A valid 4-digit PIN followed by # sends the signal.

The KPW250 holds 250 permanent PINs and works with Security+ 2.0, Security+ 315 and 390 MHz and Linear Multi-Code. The KPW5 holds 5 permanent PINs on Security+ 2.0. Both hold 10 temporary PINs.

Identify your model

Both keypads look the same and lock with a key. The model is on the label inside. The KPW250 works with more radio types, so check the compatibility chart below for your operator.

Key specs

PINs	KPW250: 250 permanent; KPW5: 5 permanent; both 10 temporary
Radio	KPW250: Security+ 2.0, Security+ 315/390 MHz, Multi-Code 300 MHz; KPW5: Security+ 2.0
Power	9 V lithium battery (included)
Mounting	Wall or pedestal with 3 x 3 in pattern (PED42, PED64)
Enclosure	NEMA 3R
Operating temperature	-4 to 140 °F

Manuals and documents

Installation Manual

KPW5 and KPW250 Installation Manual
2022 · 20 pages View PDF: KPW5 and KPW250 Installation Manual (opens in a new tab)
KPW5 and KPW250 Manual, Earlier Edition
16 pages View PDF: KPW5 and KPW250 Manual, Earlier Edition (opens in a new tab)

Spec Sheet

KPW5 and KPW250 Compatibility Chart
2022 · 1 page View PDF: KPW5 and KPW250 Compatibility Chart (opens in a new tab)

Troubleshooting

The keypad must be in programming mode for setup. The backlight stays on in programming mode, and the keypad leaves it after 60 seconds with no key press.

Error tone after a PIN

The PIN is not programmed or was entered partly. Enter the 4-digit PIN and press #.

Operator does not respond

Check the operator radio type against the compatibility chart.
Relearn the keypad to the operator or receiver, such as the 850LM.
Replace the 9 V lithium battery.

Common questions

The KPW250 holds 250 PINs and works with Security+ 2.0, Security+ 315/390 MHz and Linear Multi-Code. The KPW5 holds 5 PINs and works with Security+ 2.0.

One 9 V lithium battery, included with the keypad.

Yes. A 6-digit master code protects programming. Change the factory code and record the new one.

Mount any keypad or entry system at least 6 ft from a gate or gate operator, or where the user cannot reach the gate while using it.
