SG-101 Slide Gate: 1HP 115/230V 1PH w/Adjustable Clutch

Maestro de potencia ITEM: 15-41004
SG-101 Slide Gate: 1HP 115/230V 1PH w/Adjustable Clutch
SG-101 Slide Gate: 1HP 115/230V 1PH w/Adjustable Clutch
SG-101 Slide Gate: 1HP 115/230V 1PH w/Adjustable Clutch

SG-101 Slide Gate: 1HP 115/230V 1PH w/Adjustable Clutch

Maestro de potencia ITEM: 15-41004
Precio habitual $4,540.00
/
  • Costes tarifarios actualmente incluidos en el precio
  • Precios por cantidad para contratistas disponibles
  • GSA, Net 30 y órdenes de compra disponibles
Los gastos de envío se calculan en la pantalla de pagos.

Description

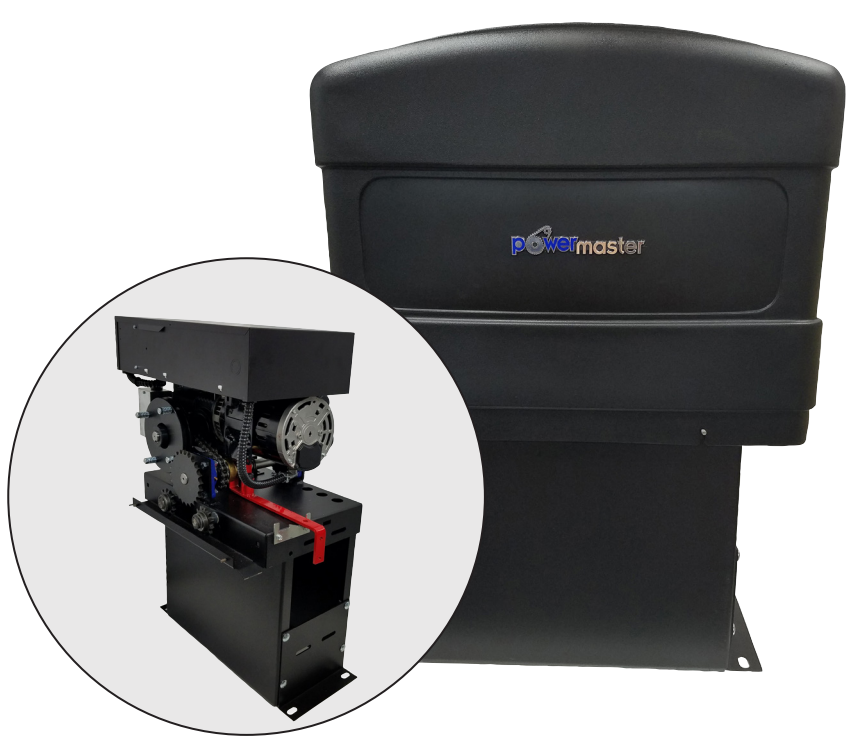

The PowerMaster Model SG Slide Gate Operator, is a heavy-duty solution for commercial and industrial sliding gates up to 50 feet long and 1,500 lbs. Powered by a continuous-duty AC motor with 1 HP at 115/230V, it delivers quiet, reliable performance for high-traffic environments with a duty cycle of up to 30 cycles per hour.

Designed for safety and ease of use, the SG-101 is UL 325 compliant and features a weather-resistant enclosure, adjustable clutch for torque control, onboard controls with timer-to-close, and simple left/right changeover. A manual disconnect ensures operation during power outages, and flexible post or pad mounting allows for straightforward installation.

This replaces the Powermaster SG-100 and is designed to fit the existing post or pad mount set up.

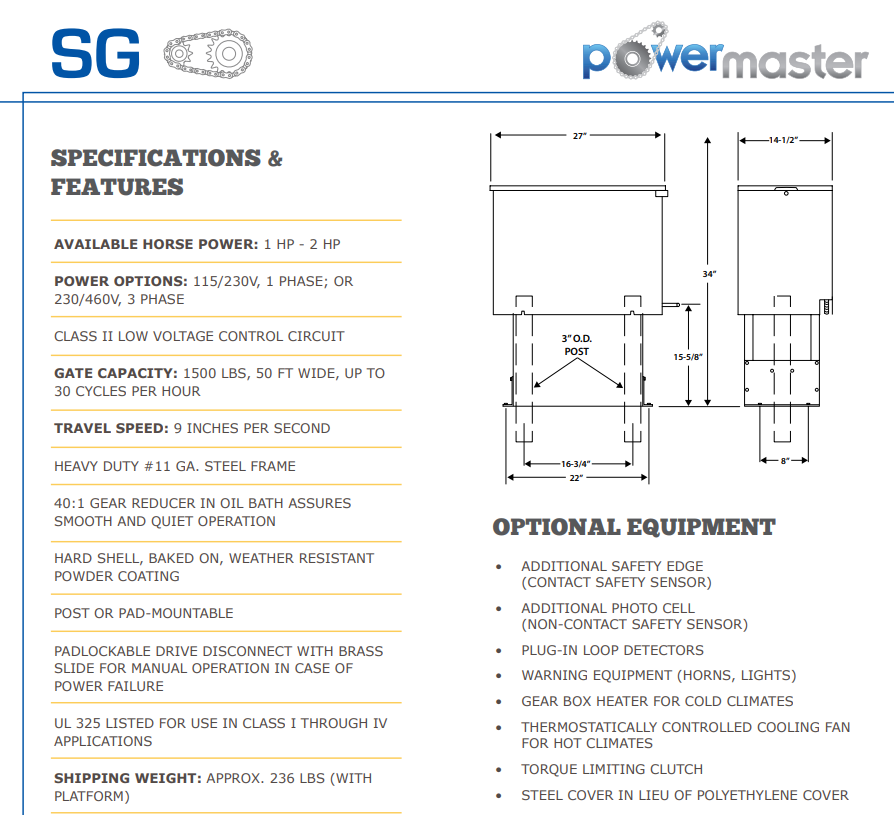

  • Nitro Board with 4-line LCD Display
  • Timer to Close
  • Self Adjusting Maximum Run Timer
  • Easy Left/Right Changeover
  • Onboard, 3-Button Control Station
  • Heavy Duty Steel Frame with Polyethylene Rust and Dent Proof Cover
  • Power options: 115V, 230V, 460V
  • Maximum gate weight: 1500 lbs
  • Maximum cycles per hour: 30 CPH
  • Maximum gate width: 50 feet
  • Gate speed: 9 inches per second
  • Class II low voltage control circuit
  • UL 325 Listed for use in Class I through IV application
  • Nitro board with 4-line LCD Display
  • Timer to close with 0-60 sec.
  • Easy Left/Right changeover
  • Time delay on reverse to ensure smooth gate motion and less stress on equipment
  • Spike suppressing circuitry for surge and lightning protection
  • Emergency control enabling circuitry for safety with security
  • Electrical dynamic or solenoid brake for precise gate positioning
  • Magnetic gate lock circuitry with control relay
  • Integral, speed sensing, anti-entrapment circuitry with independent opening and closing sensitivity adjustment
  • External anti-entrapment circuitry with separate terminal connections for easy installation of contact and non-contact sensors
  • Internal On/Off power switch
  • NEMA 1 three-button control station included
  • Selectable three second advanced audio warning signal
  • Heavy duty #50 drive chain with a spring loaded tensioning system for smooth starts, stops, and reversals.
  • Heavy duty pillow block type ball bearings supporting output drive shaft and enabling extended endurance under heavy loads with low maintenance.
  • Positive chain driven rotary limit switches for precision gate positioning. Settings are never affected by manual operation.
  • Post or pad mountable for easy installation.
  • External control input terminal connections for:Radio ReceiverPush Button Control StationKey SwitchesLoop DetectorsCard Key ReadersTelephone Entry Systems, Etc.
