Aiphone JOS-1V Video Intercom Manuals & Support

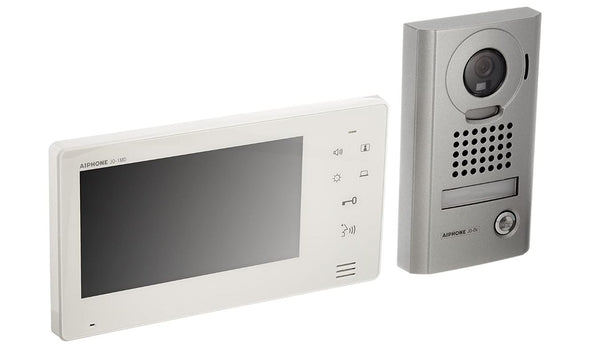

The Aiphone JOS-1V is a hands-free color video intercom kit with a JO-1MD 7 in master station, a JO-DV surface mount door station with a zinc die-cast cover and a PS-1820UL power supply.

It connects to the door with two wires and has a door release contact. A JO-1FD expansion station can be added inside.

Identify your model

JO Series kits share the JO-1MD master. JOS-1A uses the plastic JO-DA door station, JOS-1V the zinc JO-DV, and JOS-1F the flush stainless JO-DVF. The app-compatible version is the JOS-1VW.

Key specs

Kit	JO-1MD master, JO-DV door station, PS-1820UL
Screen	7 in TFT LCD
Power	18 VDC (PS-1820UL)
Door release	N/O, 24 VAC/VDC, 500 mA
Wiring	2 conductors to door, up to 330 ft
Door station temperature	-4 to 140 °F
Master mounting	3-gang box

Manuals and documents

Installation Manual

JOS-1A, JOS-1V, JOS-1F Installation and Operation Manual
13 pages View PDF: JOS-1A, JOS-1V, JOS-1F Installation and Operation Manual (opens in a new tab)

Spec Sheet

JO-1MD Master Station Spec Sheet
2022 · 2 pages View PDF: JO-1MD Master Station Spec Sheet (opens in a new tab)
JO-DV Door Station Spec Sheet
2024 · 2 pages View PDF: JO-DV Door Station Spec Sheet (opens in a new tab)
JO-1FD Expansion Station Spec Sheet
2 pages View PDF: JO-1FD Expansion Station Spec Sheet (opens in a new tab)

Troubleshooting

The master station runs on the PS-1820UL 18 VDC power supply. The door station gets power from the master.

Screen black

The monitor turns off in standby. Touch the screen to turn it on.

White screen or lines

The door station camera faces direct sun or a bright light. Move or shade the door station.

Audio cuts out

Loud sounds around the station interrupt auto-voice. Switch to touch-to-talk.
Check the ringtone and receive volume settings.

Common questions

Not with the JOS-1V. The JOS-1VW kit uses the JO-1MDW master, which works with up to 8 mobile apps.

Two conductors, up to 330 ft.

Yes. Add a JO-1FD expansion station.
