EMX MVP D-TEK Manuals & Support

The EMX MVP D-TEK is a multi-voltage loop detector that runs on 12 VDC up to 240 VAC. It replaces the voltage-specific D-TEK detectors, so one part covers 12 VDC, 24 VAC and 115 VAC sites.

It uses the same 11-pin plug and housing size as the original D-TEK and has a presence relay and a second relay for pulse or presence.

Identify your model

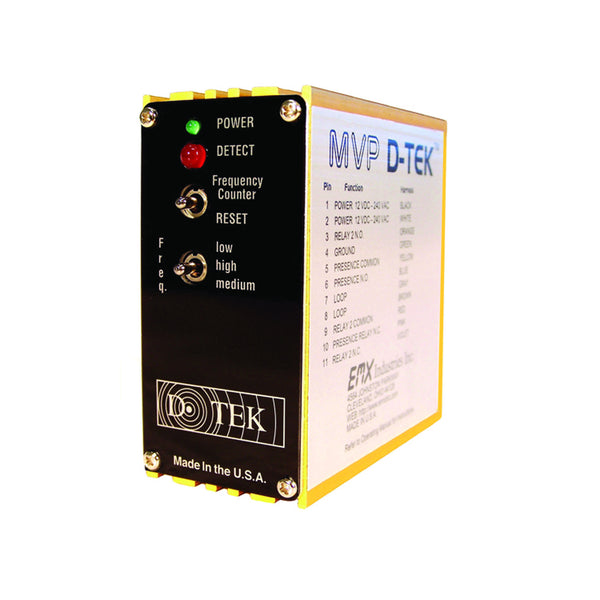

The MVP D-TEK has an anodized aluminum housing with an 11-pin plug (86CP11) and a rotary sensitivity dial. It needs an LD-11 DIN rail socket or a HAR-11 harness. For battery or solar systems, EMX offers the LP D-TEK, which draws under 9 mA.

Key specs

Power	12 VDC to 240 VAC
Connector	11-pin male (86CP11)
Relays	Presence relay and pulse or presence relay, 1 A at 30 VDC
Sensitivity	10 settings, 0 to 9; automatic boost
Modes	Fail-safe or fail-secure; pulse on entry or exit; 3, 6 or 9 second extend
Loop inductance	20 to 2,000 µH
Current draw	9.5 mA at 24 VDC; 13.5 mA at 115 VAC
Housing	Anodized aluminum, 3.25 x 2.56 x 3.65 in
Operating temperature	-40 to 180 °F

Manuals and documents

Installation Manual

MVP D-TEK Instruction Manual
Rev. 2.2, 2020 · 7 pages View PDF: MVP D-TEK Instruction Manual (opens in a new tab)
Loop Wire Installation
2 pages View PDF: Loop Wire Installation (opens in a new tab)

Spec Sheet

MVP D-TEK Spec Sheet
2 pages View PDF: MVP D-TEK Spec Sheet (opens in a new tab)

Troubleshooting

The green LED is power and the red LED is detect.

Green LED flashing

Slow flash: a past loop fault that cleared.
Fast flash: shorted or open loop now. Check the loop and lead-in.

Red LED

On: vehicle detected.
Flashing: extended detect time or the frequency counter is running.

Setup

Most sites run sensitivity 3 or 4. Set the dial on a whole number.
Flip the frequency counter switch down to recalibrate after changes.
Do not use fail secure on a reversing loop.

Common questions

Yes. It replaces the 12 VDC, 24 VAC and 115 VAC D-TEK models with one part and uses the same 11-pin plug and housing size. Check the relay load: contacts are rated 1 A at 30 VDC.

Use an LD-11 DIN rail socket or a HAR-11 harness. Neither is included.

Use fail safe for reversing and safety loops. Fail secure keeps the output from changing on a loop fault or power loss and is not for reversing loops.

Use direct-burial loop wire such as 16 AWG XLPE, not THHN. Twist the lead-in about 6 turns per foot from the loop to the detector, and seal saw cuts with loop sealant.
