1KFS Interior Flush Mount Tamperproof Open-Close Keyswitch w/ Stop Button

1KFS interior flush-mount tamperproof open/close keyswitch with stop button

1KFS Interior Flush Mount Tamperproof Open-Close Keyswitch w/ Stop Button

Regular price $78.50
/
  • Current Trade Policy Costs Included In Price
  • In Cart Discounts Offered on Many Products
  • GSA, Net 30 and purchase orders available
Shipping calculated at checkout.

Description

The 1KFS is a tamperproof open/close keyswitch with a push-button Stop for interior flush mounting. It is rated NEMA 1 for indoor use. Turn the key left or right to send an open or close command; it springs back to center when released. It uses a 5-pin mortise cylinder. The faceplate measures 6 in H x 4-3/4 in W x 2-7/8 in D over a 3-3/4 in x 3-3/4 in back box.

Install it flush in a finished interior wall next to a commercial door, gate or barrier. Wire the open and close contacts and the stop button to the operator inputs plus common.

Features

  • Open / Close key positions
  • Spring return to center
  • Momentary contacts
  • Push-button Stop
  • 5-pin mortise cylinder
  • Tamperproof faceplate
  • NEMA 1 for indoor use
  • Flush mount with back box
  • Contacts rated 15 A at 125/250 VAC
  • UL listed

Before You Order

  • Flush mount only. Cut the wall for the 3-3/4 in x 3-3/4 in back box.
  • NEMA 1 is indoor only. For exterior flush mounting, order the 1KFS-X.
  • Check if your operator needs a normally closed or normally open stop circuit.
  • Run 4 conductors: open, close, stop and common.
  • No stop button needed? See the 1KF.

Interior Tamperproof

Open-Close with Stop Button and Center Return

Faceplate: 6" x 4-3/4" x 2-7/8"

Backbox: 3-3/4" x 3-3/4"

UL Listed

  • Model: 1KFS
  • Switch Type: Keyswitch, tamperproof
  • Key Positions: Open / Close, spring return to center
  • Contact Type: Momentary
  • Stop Button: Yes, push button
  • Cylinder: Standard 5-pin mortise cylinder
  • Faceplate Material: Brushed aluminum
  • Enclosure Rating: NEMA 1 (indoor)
  • Mounting: Flush mount
  • Dimensions: Faceplate 6 in H x 4-3/4 in W x 2-7/8 in D; back box 3-3/4 in H x 3-3/4 in W
  • Electrical Rating: 15 A at 125/250 VAC

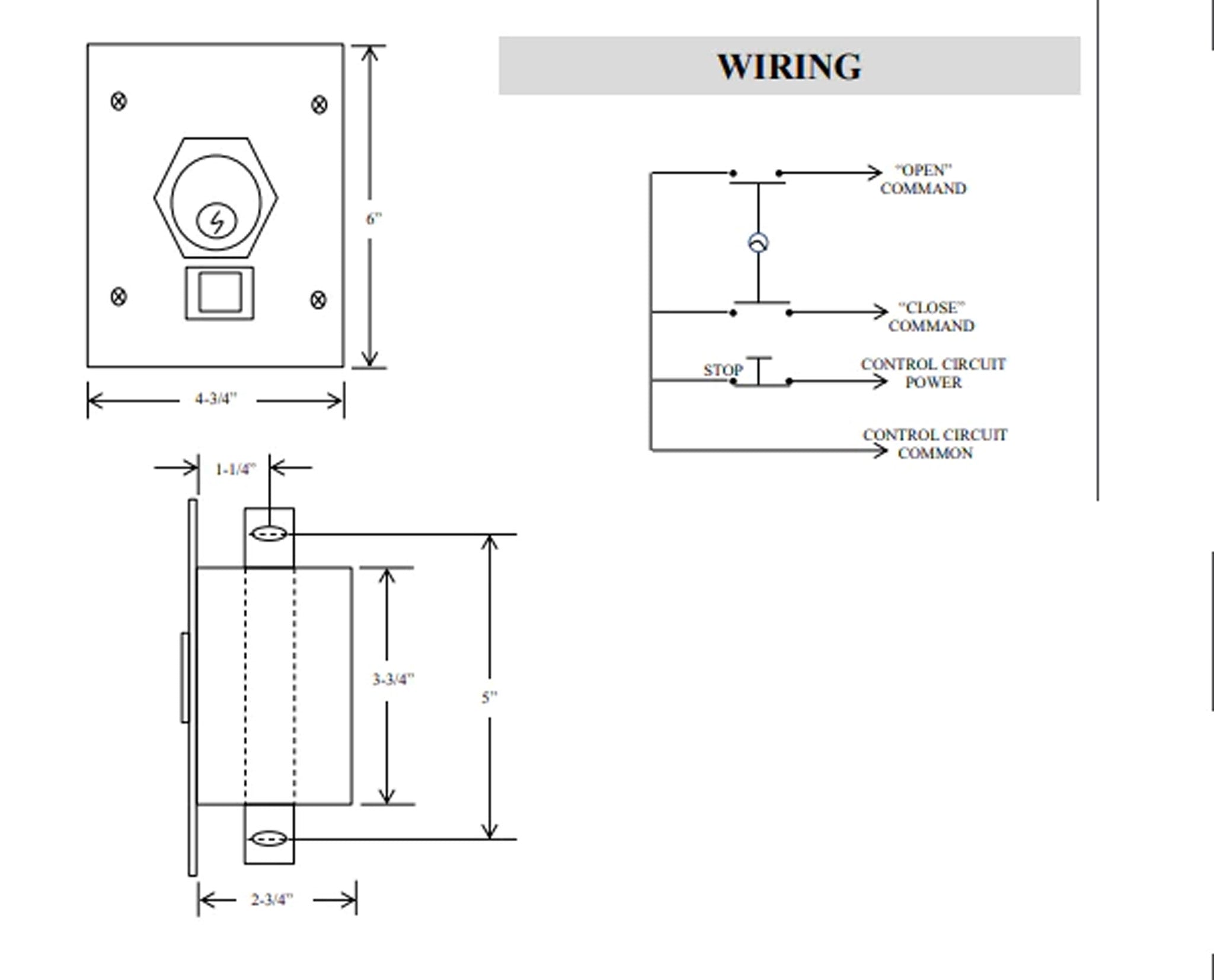

Dimensions and Wiring

  • Faceplate: 4-3/4 in W x 6 in H
  • Back Box: 3-3/4 in H body, 5 in between mounting ears; 2-3/4 in deep; mounting ears 1-1/4 in behind the faceplate
  • Wiring: Two-position open/close keyswitch: one contact to the OPEN command, one to the CLOSE command, shared control circuit common; STOP button in series with control circuit power
1KFS Interior Flush Mount Tamperproof Open-Close Keyswitch w/ Stop Button - Technical information
  • Gate, door and barrier operators with dry-contact open, close and stop inputs
  • Commercial door operators with keyed open/close/stop control

Keyed flush-mount open/close control with a stop button for interior walls next to commercial doors and gates.

  • Interior commercial door controls
  • Rolling steel and sectional doors
  • Warehouse and loading dock doors
  • Indoor parking garage gates
  • Secure storage rooms
