2BXL Open/Close Exterior Control Station w/ Lockout (Metal)
2BXL Open/Close Exterior Control Station w/ Lockout (Metal)
- Current Trade Policy Costs Included In Price
- In Cart Discounts Offered on Many Products
- GSA, Net 30 and purchase orders available
Description

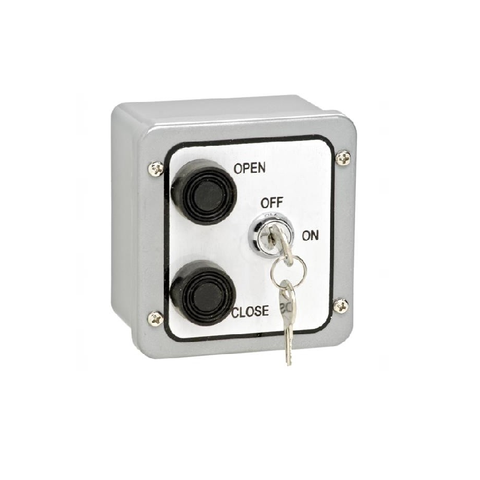

The 2BXL is a 2-button Open / Close control station with a keyed lockout in a NEMA 4 metal enclosure. It surface mounts outdoors on a wall, post or column. Buttons are momentary. The enclosure measures 4-3/8 in H x 4-1/8 in W x 2-5/8 in D.
Use it at exterior door and gate positions where the station must be locked out after hours. The keyswitch lets staff disable the buttons. It wires to the operator's open and close inputs plus common. There is no stop button on this model.
Features
- Open and Close push buttons
- Keyed lockout
- Momentary contacts
- NEMA 4 metal enclosure for exterior use
- Surface mount
- UL listed
Before You Order
- No stop button. If your operator needs a stop input or a jumper is not allowed, order the 3BXL (Open / Close / Stop with lockout).
- For the same station without lockout, see the 2BX. For a non-metallic housing, see the 2BXT.
- For corrosive or washdown areas, see the 2B4X or 3B4XL (NEMA 4X).
- Run 3 conductors: open, close and common, plus the lockout circuit.
-NEMA 4
-UL Listed
-Momentary Contact
-Open/Close Control with Lockout
-Dimensions: H=4-3/8", W=4-1/8", D=2-5/8"
- Model: 2BXL
- Buttons: 2 plus keyed lockout
- Button Functions: Open / Close; Lockout
- Contact Type: Momentary
- Stop Circuit: None (no stop button)
- Enclosure Material: Metal
- Enclosure Rating: NEMA 4
- Mounting: Surface mount, exterior
- Dimensions: 4-3/8 in H x 4-1/8 in W x 2-5/8 in D
- Lockout: Keyed lockout
- Wiring/Terminals: Open, close, common plus lockout circuit
- Commercial door operators with 2-button (open/close) inputs
- Gate and barrier operators with dry-contact open and close inputs
Lockable exterior 2-button control for doors and gates that must be disabled after hours.
- Commercial overhead and rolling doors
- Commercial slide and swing gates
- Gated community and HOA entries
- Barrier arm lanes
- Industrial building entries
